Precision Balance BFT1BG2

High Precision Weighing Module

• Sea, Air, Door to Door Shipping
• 1 Year Warranty
• US & European Standards

Specifications

Model	BFT1BG2
Capacity	400g
Readability	1mg
Preloading	≥1/3 maximum weighing
Repeatability	≤±2mg
Linearity	≤±3mg
Response time	≤3s
Calibration method	Internal Calibration
Calibration weights	F1 level 200g

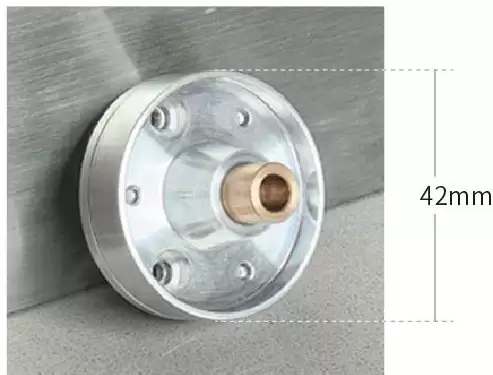

Pan size	Φ42mm
Operating temperature range	+10°C......+30°C
Storage temperature range	+5°C......+40°C

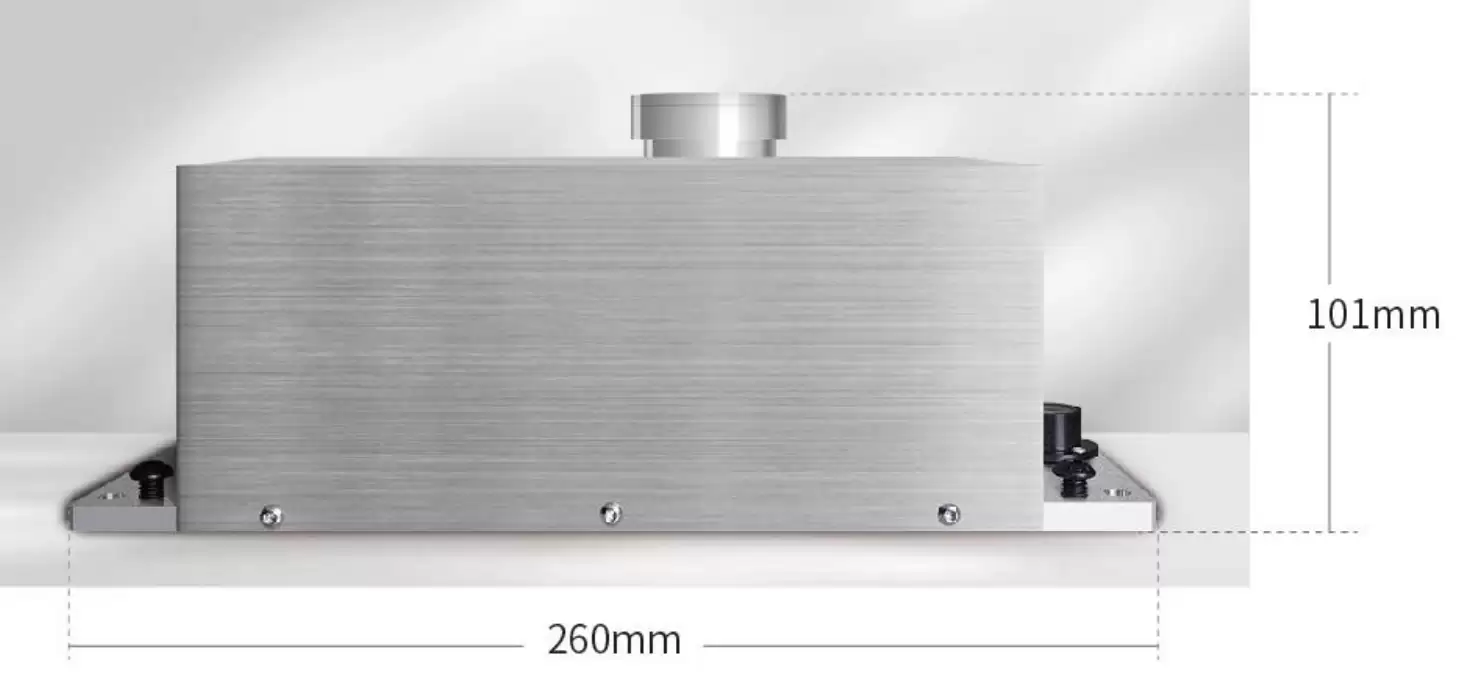

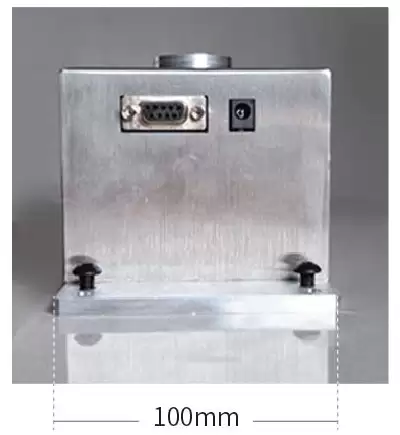

Weighing module size	260*100*101mm (L*W*H)

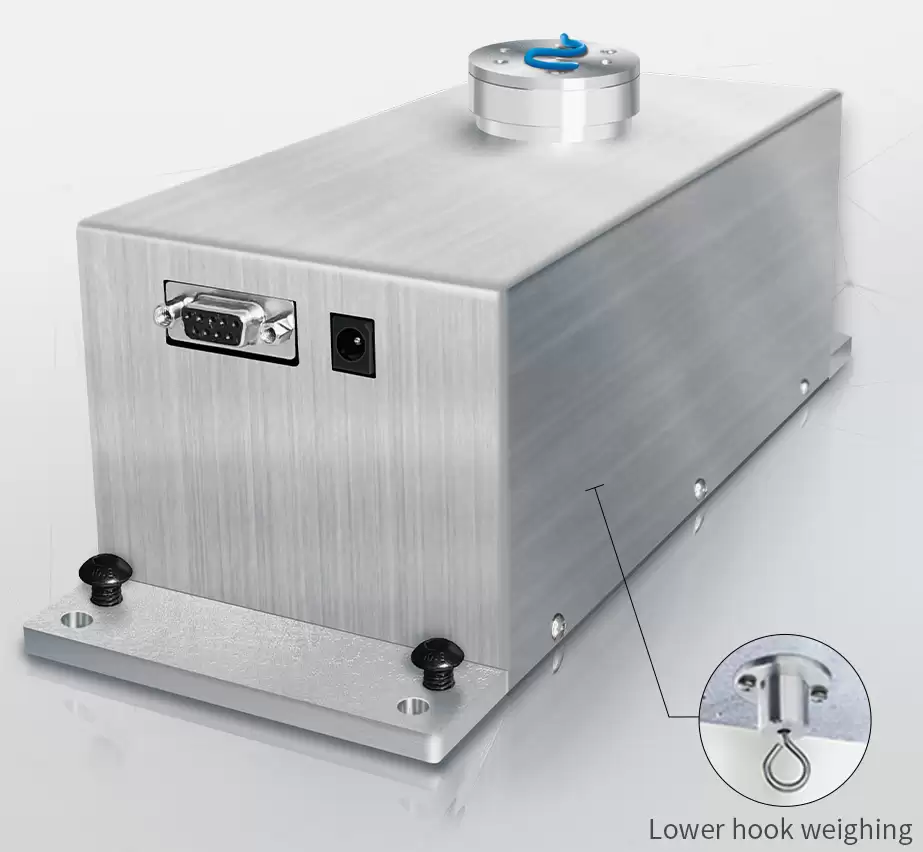

Bottom weighing function	Under hook weighing (Optional)
The power adapter	The power adapter
N. Weight	2.3kg
Interface	RS232
Communication Protocol	Modbus / SICS

Features

Electromagnetic force sensor
Automatic internal calibration (Optional)
Modbus protocol bidirectional communication
SICS communication protocol
Sensor overload protection
Scale pan protection device
Under hook weighing (Optional)
Stainless steel casing
RS232 serial port output data
Compact in size and easy to install
Weighing quickly

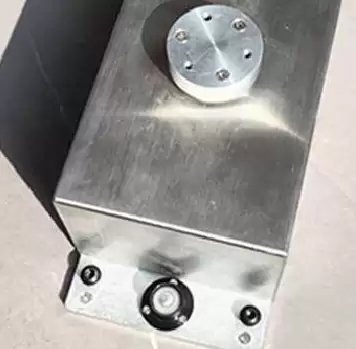

Level bubble

Accessories For Purchase

images	name	description	information

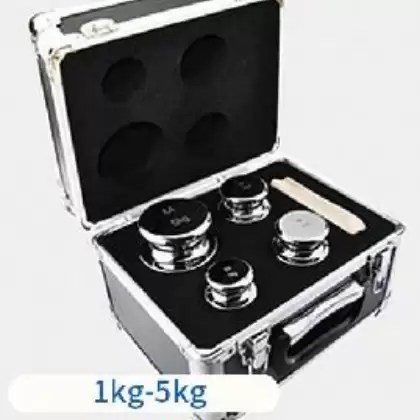

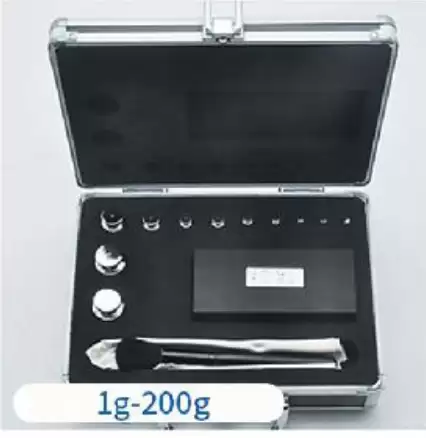

	Weight set	Recommend corresponding accuracy calibration (1mg-20kg)	M1 levelSuitable for 0.1g-0.01g

F2 levelSuitable for 0.01g-0.001g

F1 levelSuitable for 0.001g-0.0001g

E2 levelSuitable for over 0.0001g

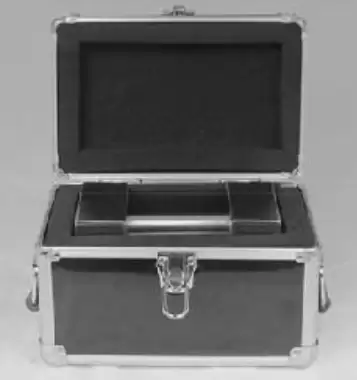

Weight set

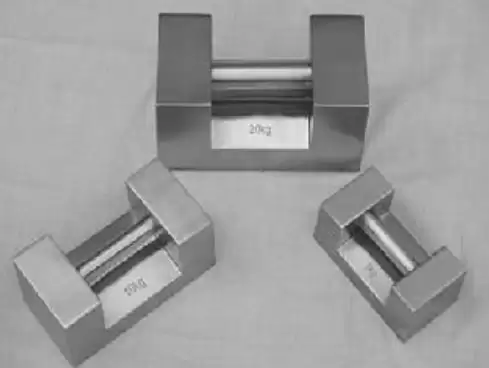

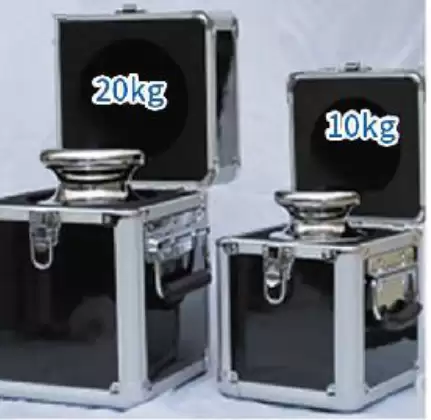

Lock type series weights (5kg-20kg)
M1 levelSuitable for 0.1g-0.01g

F2 levelSuitable for 0.01g-0.001g

F1 levelSuitable for 0.001g-0.0001g
