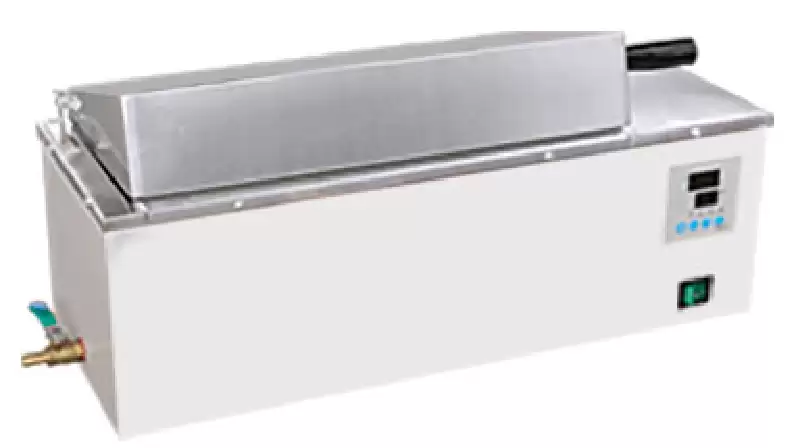

Water Bath BER1CC3

Thermostatic Water Baths

• Sea, Air, Door to Door Shipping
• 1 Year Warranty
• US & European Standards

Specifications

Model	BER1CC3
Function
--Temp Range	RT+5~65°C
--Temp Resolution Ratio	0.1°C
--Temp Motion	±0.5°C
--Temp Uniformity	±1.0°C
Structure
--Inner Chamber	High quality hairline stainless steel plate
--Outer Shell	Cold rolling steel electrostatic spraying exterior
--Cover	High quality hairline stainless steel plate
--Cover Circle	Without
--Test Tube Rack	Without
Controller
--Heater	Stainless steel heating tube
--Power Rating	0.75kW
--Temp Control Mode	PID
--Temp Setting Mode	Touch button setting
--Temp Display Mode	Measuring temperature: display on the three digital tubes upper row; setting temperature: display on the lower row
--Timer	0~999min
--Operation Function	Fixed temperature operation, timing function, auto stop.
--Program Function	No
--Additional Function	Deviation correction, Menu key lock, Power-off compensation, Power failure memory
--Sensor	NTC
Safety Device	Over temperature alarm
Specification
--Sink Size (W*L*H)(mm)	600*300*200
--Exterior Size (W*L*H)(mm)	750*350*360
--Packing Size (W*L*H)(mm)	900*440*440
--Volume	36L
--Supply (50/60Hz) Current Rating	AC220V/6.8A
--NW/GW (kg)	17/19
Optional Accessories	Different sizes can be customized, can add power off protection function when water shortage.

Features

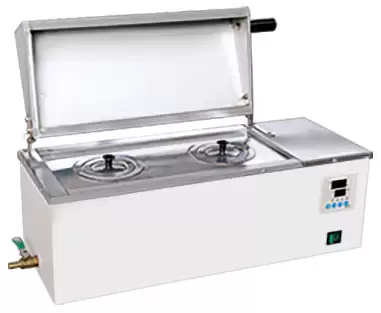

1. SHHW21.420All model cover for the two holes water bath, can be used as a digital two holes water bath.

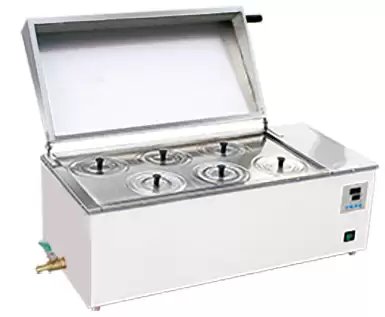

2. SHHW21.600AII model cover for the six holes water bath, can be used as a digital six holes water bath.

Applications

Used for precision constant temperature and'ilia.
