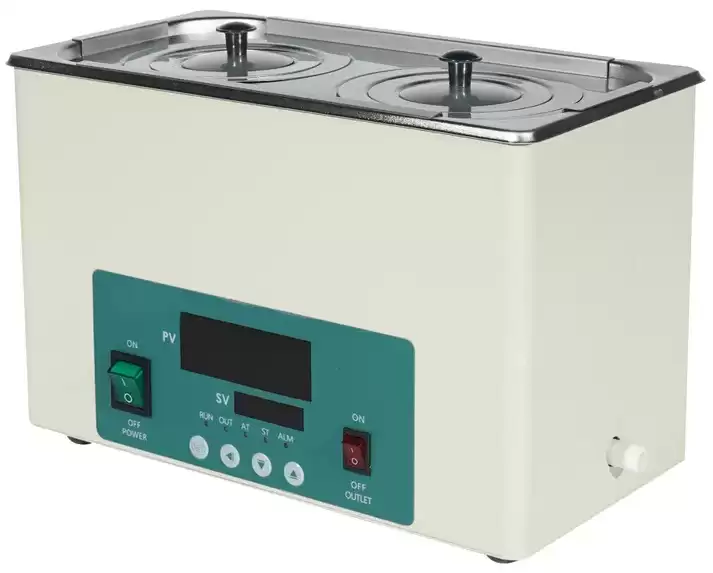

Water Bath BER1CA1

Thermostatic Water Baths (stretching Inner Chamber), Thermostatic Water Baths

• Sea, Air, Door to Door Shipping
• 1 Year Warranty
• US & European Standards

Specifications

Model	BER1CA1
Classification	1 hole
Heating Mode	Nature water convection heat transfer
Function
--Temp. Range	RT+5~100°C
--Temp. Resolution Ratio	0.1°C
--Temp. Motion	±0.5°C
--Temp. Uniformity	±1.0°C
Structure
--Inner Chamber	Stainless steel
--Outer Shell	Cold-rolled steel plate, resistance to chemical reagents coating on the surface
--Heater	Stainless steel heating tube
--Power Rating	0.4kW
Controller
--Temp. Control Mode	PID
--Temp. Setting Mode	Touch button setting
--Temp. Display Mode	Measuring temperature displays on the three digital tubes upper row, set temperature displays on the lower row
--Timer	0~9999 min (with timing wait function)
--Operation Function	Fixed temperature operation, timing function, auto stop
--Program Mode	Optional
--Additional Function	Deviation Correction, menu key locked, power failure back-up, power-off memory
--Sensor	NTC
Safety Device	Over temperature alarm
Specification
--Inner Chamber Size (W*L*H)(mm)	150*135*150
--Exterior Size (W*L*H)(mm)	170*154*210
--Packing Size (W*L*H)(mm)	240*230*280
--Volume	3.4L
--Load Per Rack	5kg
--Shelf Number	1
--Power Supply (50/60Hz) Current Rating	AC220V/1.8A
--NW/GW (kg)	3.3/4

Features

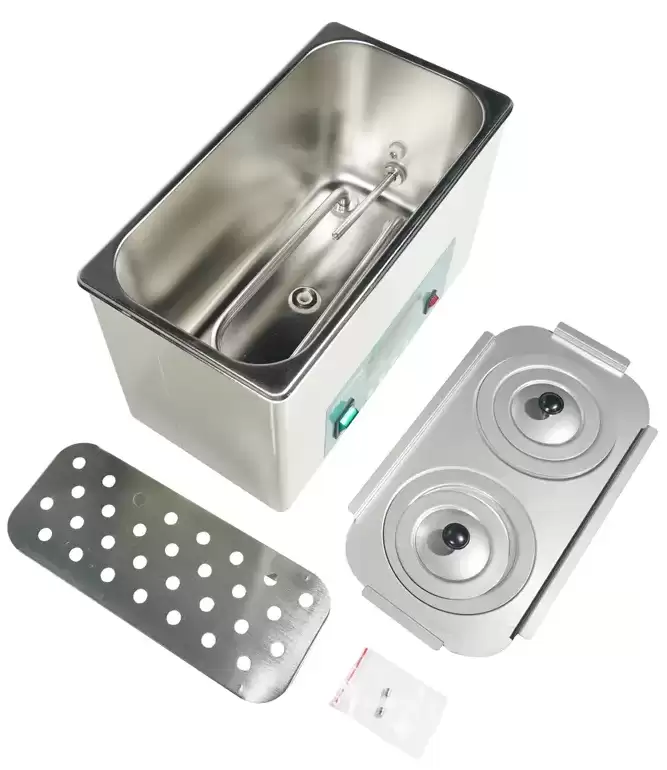

1. Stainless steel stretching inner container and roof cover.
2. Intelligent temperature controller with PID program, digital tube display and function of timing and over-temperature protection.
3. the electric drain switch, one-button operation, convenient to drain,
Note: single hole water baths have no drain function.
4. Power off when water shortage to ensure the safe operation of the product.

Applications

Used for precision constant temperature and auxiliary.
