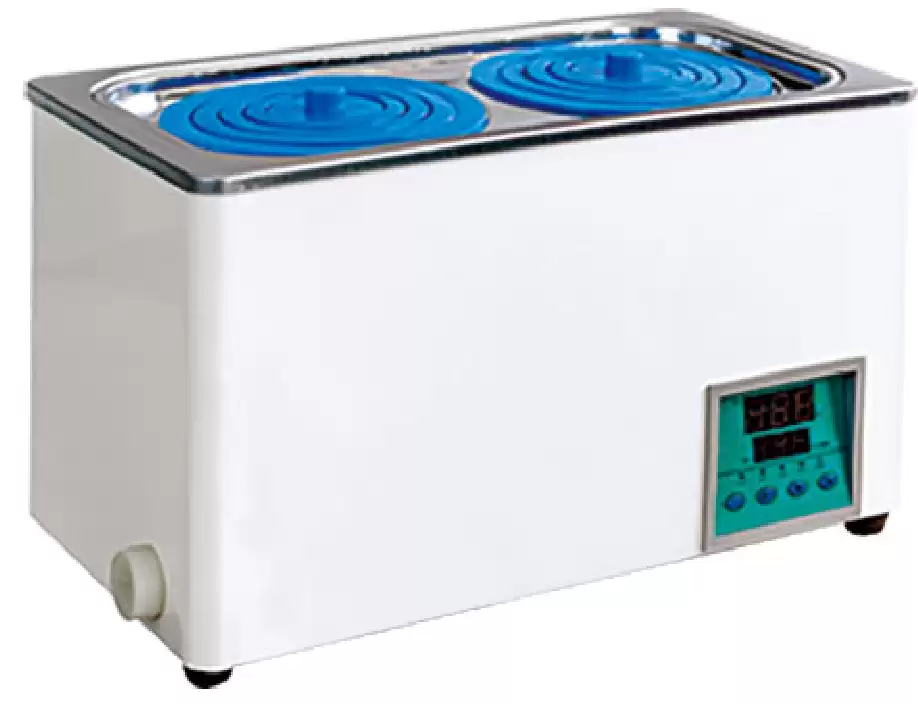

Water Bath BER1BZ2 (BBWA-202)
Thermostatic Water Baths- Sea, Air, Door to Door Shipping
- 1 Year Warranty
- US & European Standards
Specifications
| Model | BER1BZ2 |
| Function | |
| Heating Mode | Bottom heating, water temperature natural convection |
| Temp. Range | Rt+5~100°C |
| Temp. Resolution Ratio | 0.1°C |
| Temp. Motion | ±0.5°C |
| Temp. Uniformity | ±1°C |
| Structure | |
| Water Sink | Stainless steel, surface electrolysis treatment |
| Outer Shell | Cold rolled steel plate, surface electrostatic powder spray |
| Heater | Stainless steel U type heating tube |
| Power Rating | 600W |
| Controller | |
| Temp. Control Mode | PID |
| Temp. Setting Mode | Touch button setting |
| Temp. Display Mode | Measuring temperature: display on the three digital tubes upper row, setting temperature: display on the lower row |
| Timer | 0~999 min (with timing function) |
| Timing Function | Fixed temperature operation, timing function, auto stop |
| Program Schema | Optional: multi-section program control |
| Additional Function | Deviation correction, menu key lock, power failure back-up, power-off parameter memory, PID adjustable |
| Sensor | Thermal resistor |
| Safety Device | Over-temperature alarm, short-circuit protection |
| Specification | |
| Inner Chamber Size (W*L*H)(mm) | 305*160*130 |
| Exterior Size (W*L*H)(mm) | 340*210*210 |
| Packing Size (W*L*H)(mm) | 405*275*275 |
| Internal Volume | 6.3L |
| Cover Aperture | Φ120mm |
| Cover Material | PP Plastic |
| Cover Number Per Hole | 5 |
| Power Supply (50/60Hz) Current Rating | AC220V 2.7A |
| NW/GW (kg) | 4KG/5KG |
Features

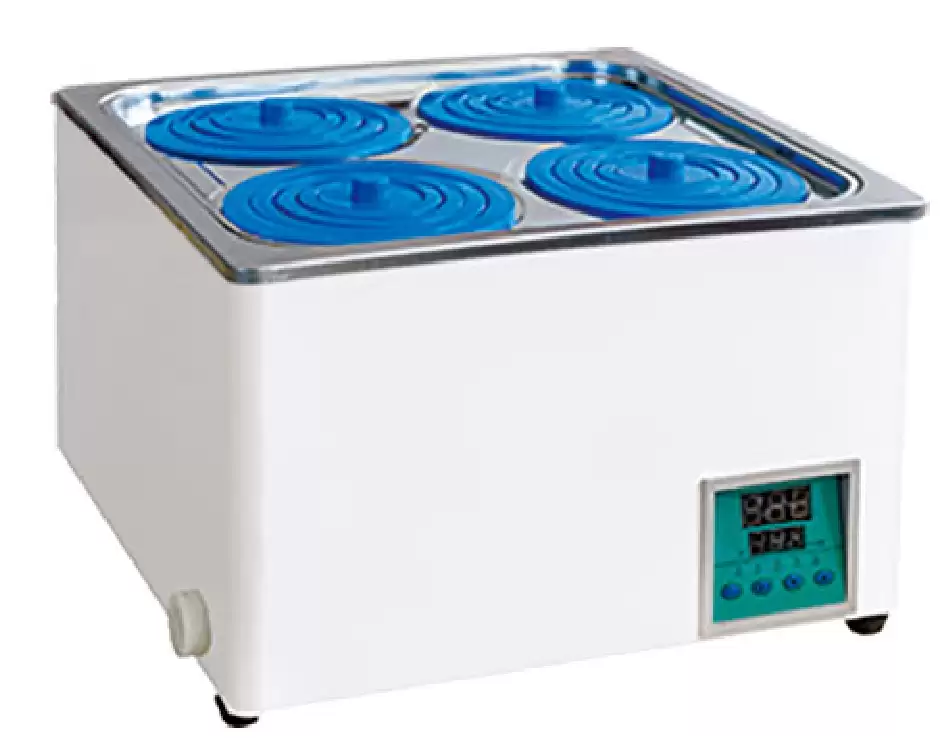

1. Inner tank: 1 hole, 2 holes, 2 rows & 4 four holes, 2 rows & 6 holes are stainless steel stretching inner chamber.2. 1 row & 4 holes, 1 row & 6 holes, 2 rows & 8 holes are stainless steel inner chamber.
