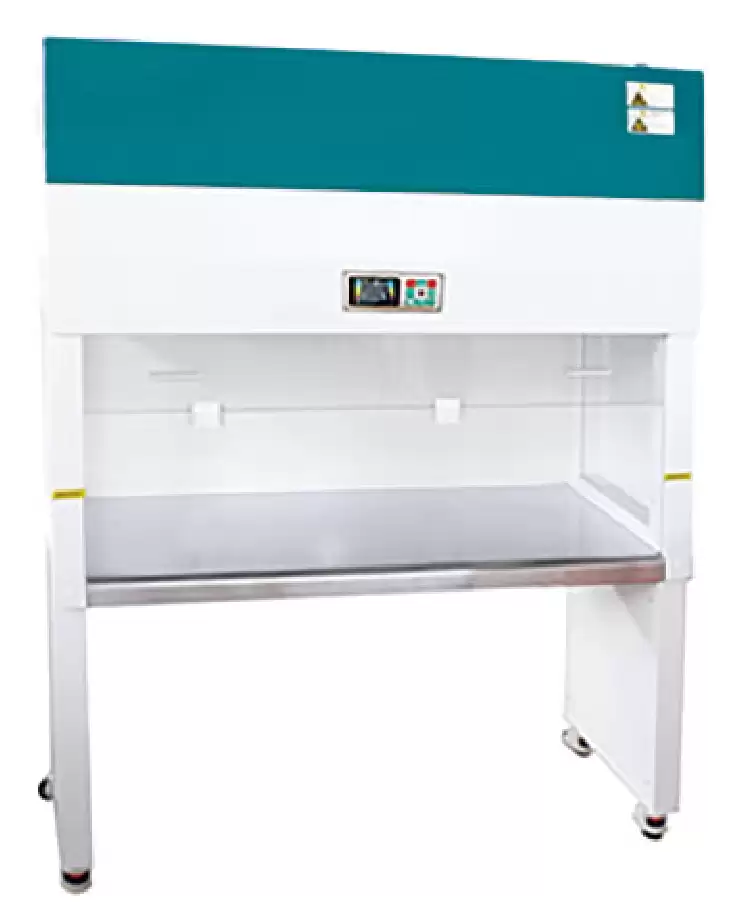

Vertical Laminar Airflow BER1BJ7
New Laminar Flow Cabinet- Sea, Air, Door to Door Shipping
- 1 Year Warranty
- US & European Standards
Specifications
| Model | BER1BJ7 |
| Applicable Station | two person one side |
| Airflow Direction | Vertical |
| Function | |
| --Cleanliness | Class 100 |
| --Collection Efficiency | 0.3um partial ≥99.995% |
| --Colony Count | ≤0.5/Vessel (petri dish is Φ90mm) |
| --Wind Speed | initial: 0.6; final: 0.2 (m/s) |
| --Wind Speed Range | 0.2-0.6 (m/s) |
| --Noise Level | ≤62db |
| --Vibration Semi-peak Value | ≤3um |
| --Illumination Intensity | ≥500LX (Activity Center) |
| --Work Surface | 50kg |
| Composition | |
| --Inner Chamber | SUS304 Stainless steel plate |
| --Outer Shell | Cold rolling steel electrostatic spraying exterior |
| --Operation Door | Tempered Glass |
| --HEPA filter (mm) | 1300*640*50 one piece |
| --Pre-Filter | 712*360*5 one piece |
| --Fluorescent Lamp | 24W*2 |
| --UV Lamp | 30W*1 |
| --Top Fan | 180W two pieces |
| --Rated Power | 440W |
| Controller | |
| --Display | LCD color screen |
| --Wind Speed Control | Intelligent multi-level adjustable |
| --Additional Function | Built-in 2 multi-purpose sockets, high-efficiency filter, sterilization lamp replacement prompt, foot level adjustment, lighting sterilization one key on/off |
| Specification | |
| --Inner Size (W*L*H) | 1320*690*650 |
| --Exterior Size (W*L*H) | 1460*763*1834 |
| --Packing Size (W*L*H) | 1610*885*1999 |
| --Max power of universal socket | Single socket: 800W |
| --Current Rating (50/60Hz) | AC220V/3.6A |
| --NW/GW (kg) | 200/250 |
| Optional Accessories | NO |
Features
1. Vertical manifold and quasi-closed 304 stainless steel table surface can effectively prevent external gas penetration into the operating clean area.2. Centrifugal fan, stable speed, low noise, light touch air volume control system, five-stage wind speed control, speed 0.2-0.6m/s adjustable, (initial: 0.6m/s; Final: 0.2m/s).
3. High quality air filter without partition, good purification effect.
4. LCD color screen controller (with sterilization timer, built--in socket instrument con- trollable switch, front window status display, can set three interlock , cumulative work timing, remote control).
5. CJ-1DlII,CJ-2Dlll, CJ-1SllI,CJ-2Slll:wind speed sensor.
6. Automatic cutting off UV lamp function by opening glass.
