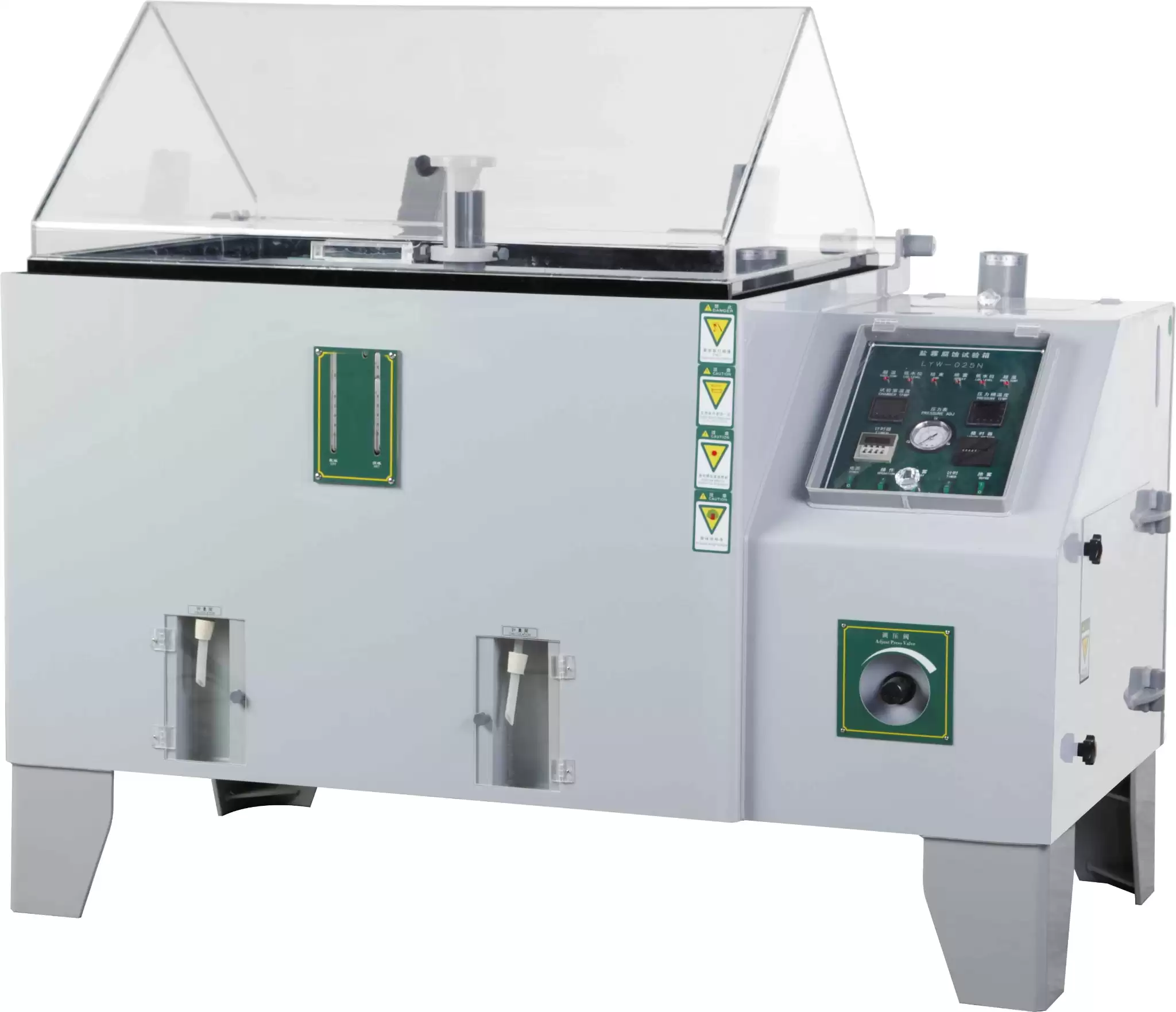

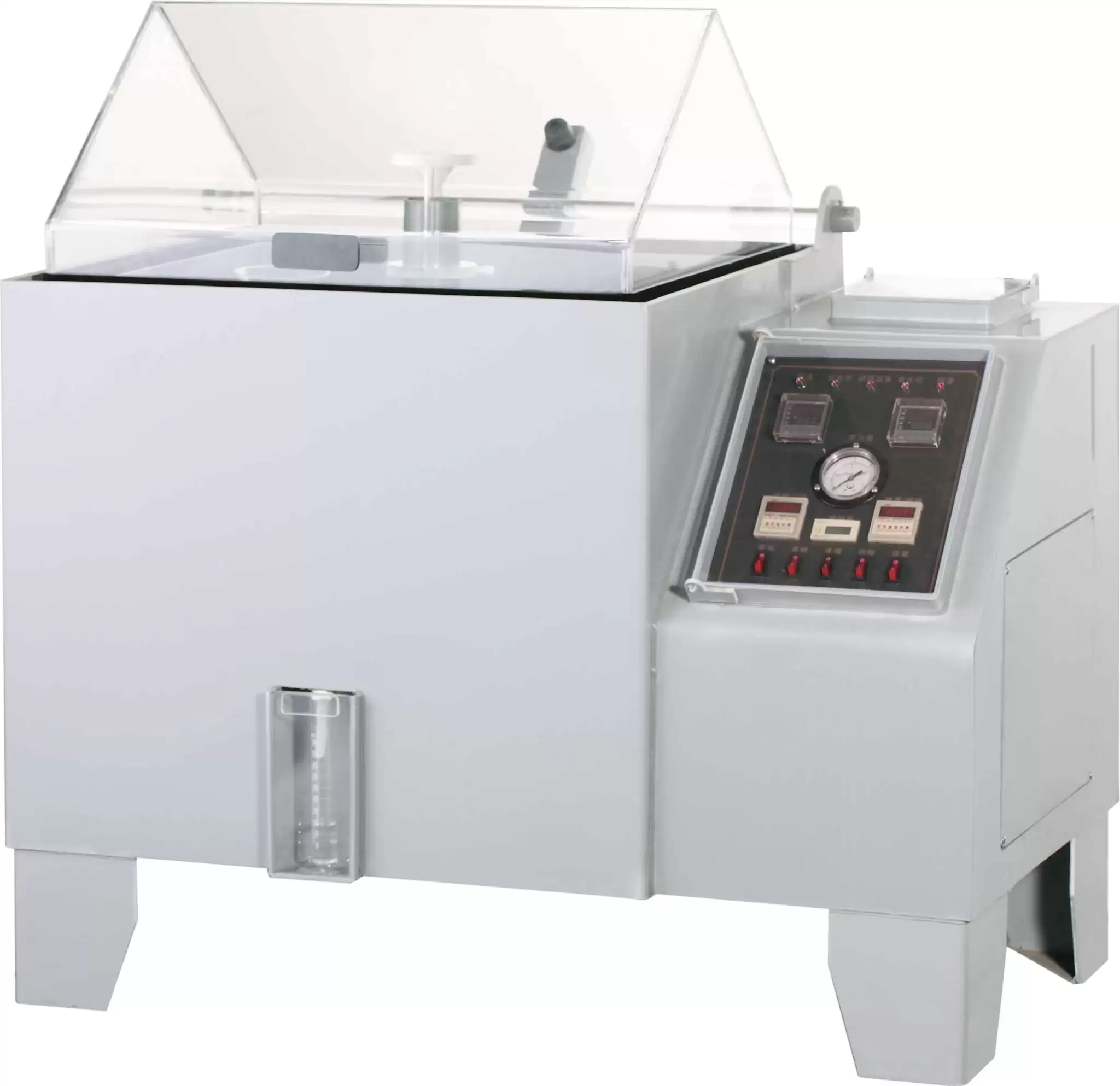

Stability Test Chamber BGI1BZ3

Salt Spray Corrosion Test Chamber
  • Sea, Air, Door to Door Shipping
  • 1 Year Warranty
  • US & European Standards



Stability Test Chamber 1100x750x500 1650x950x1300 Stability Test Chamber 1100x750x500 1650x950x1300

Specifications

ModelBGI1BZ3
Working chamber dimension (WxDxH, mm)1100x750x500
External dimension (WxDxH, mm)1650x950x1300
Temperature rangeRT+5~50°C
Temperature uniformity±2°C
Temperature stability±0.5°C
Electrical requirementAC220V, 50Hz
Power consumption2000W
Salt spraying sedimentation rate1.0~2.0ml/80cm²
Meet standardGB/2423.17-93, GB/T10587-2006, GB/T10125-2012, ISO9227-1990

Description

The salt spray test is one kind of environmental test by simulating salt spray environmental conditions to test the corrosion resistance of products or metal materials.

Features

• The overall molding, corrosion resistance, shock, easy to clean and no leakage.
• Tower spray system, the salt spray is uniform and the settling volume is adjustable.
• PVC or FRP cover could be optional, using PVC cover could clearly see the test samples and spraying situation in working chamber.
• Water seal structure and no salt spray overflow.
• The circuit control board and other components are fixed the location which is easy to check and maintain.
Control system
• P.I.D Microprocessor temperature controller ensures a precise and reliable control, the resolution is ±0.1°C .
• Universal type: With domestic digital controller.
• All circuits are equipped with circuit breakers and all heaters are equipped with overheating protection devices, The distribution box is made of refractory resin.
• Continuous or periodic spray optional and dual over-temperature protection, which is safe and reliable.
Safety Alarm
• With electric leakage, overload protection.
• With short circuit, shortage of water, over-temperature alarm.
