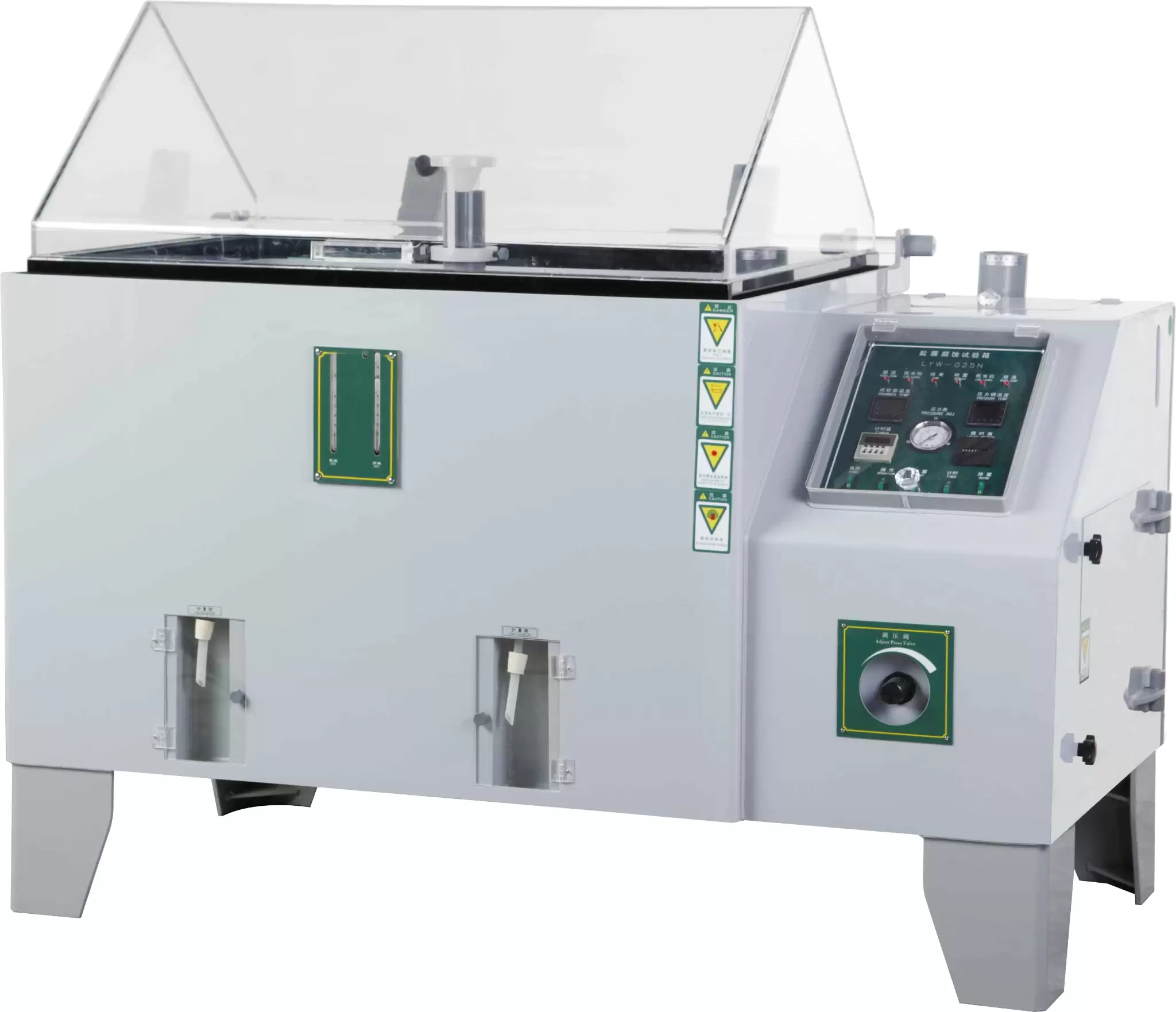

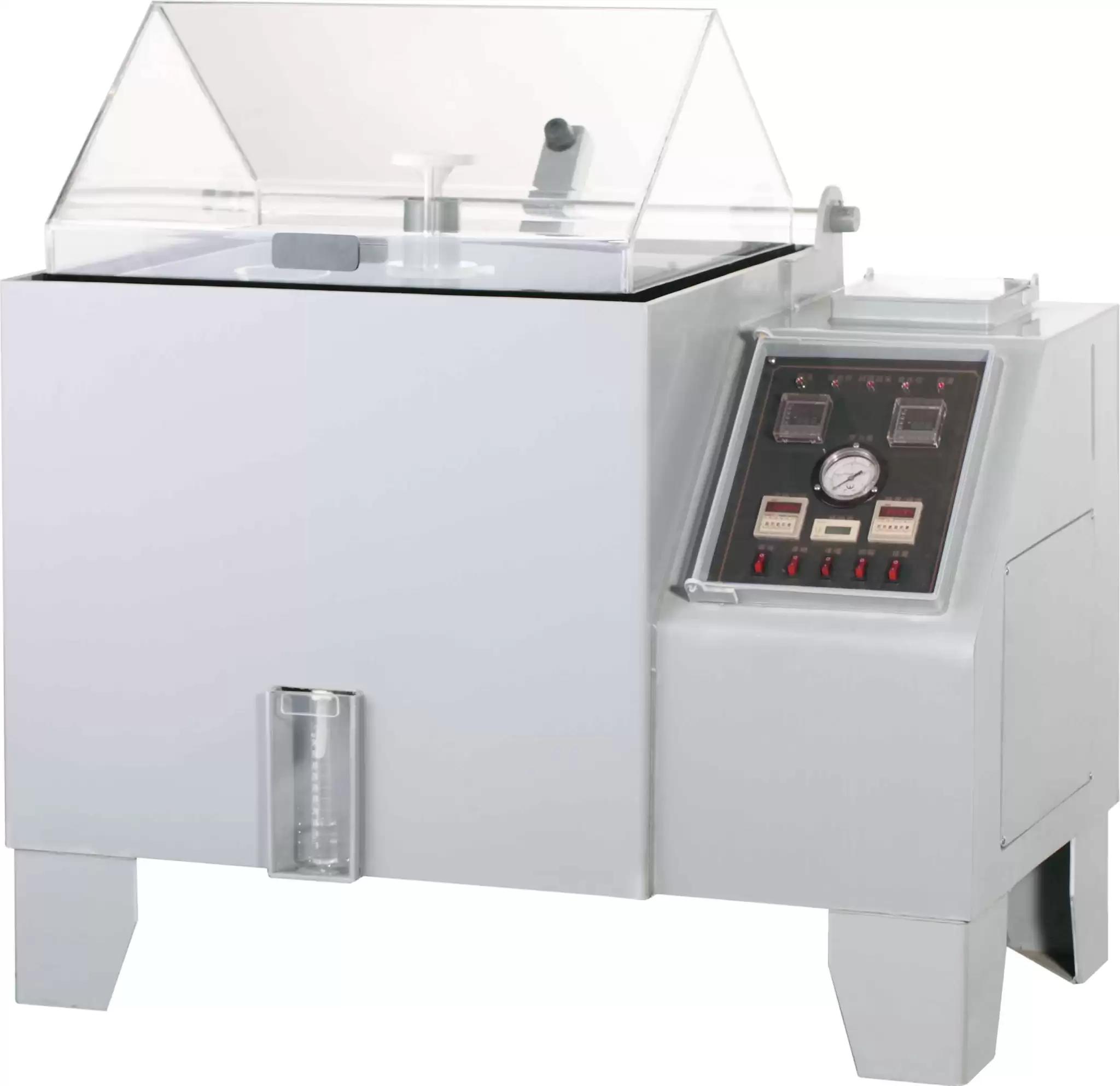

Stability Test Chamber BGI1BZ2
Salt Spray Corrosion Test Chamber- Sea, Air, Door to Door Shipping
- 1 Year Warranty
- US & European Standards
Specifications
| Model | BGI1BZ2 |
| Working chamber dimension (WxDxH, mm) | 900x600x500 |
| External dimension (WxDxH, mm) | 1400x1200x850 |
| Temperature range | RT+5~50°C |
| Temperature uniformity | ±2°C |
| Temperature stability | ±0.5°C |
| Electrical requirement | AC220V, 50Hz |
| Power consumption | 2000W |
| Salt spraying sedimentation rate | 1.0~2.0ml/80cm² |
| Meet standard | GB/2423.17-93, GB/T10587-2006, GB/T10125-2012, ISO9227-1990 |
Description
The salt spray test is one kind of environmental test by simulating salt spray environmental conditions to test the corrosion resistance of products or metal materials.Features
• The overall molding, corrosion resistance, shock, easy to clean and no leakage.• Tower spray system, the salt spray is uniform and the settling volume is adjustable.
• PVC or FRP cover could be optional, using PVC cover could clearly see the test samples and spraying situation in working chamber.
• Water seal structure and no salt spray overflow.
• The circuit control board and other components are fixed the location which is easy to check and maintain.
Control system
• P.I.D Microprocessor temperature controller ensures a precise and reliable control, the resolution is ±0.1°C .
• Universal type: With domestic digital controller.
• All circuits are equipped with circuit breakers and all heaters are equipped with overheating protection devices, The distribution box is made of refractory resin.
• Continuous or periodic spray optional and dual over-temperature protection, which is safe and reliable.
Safety Alarm
• With electric leakage, overload protection.
• With short circuit, shortage of water, over-temperature alarm.
