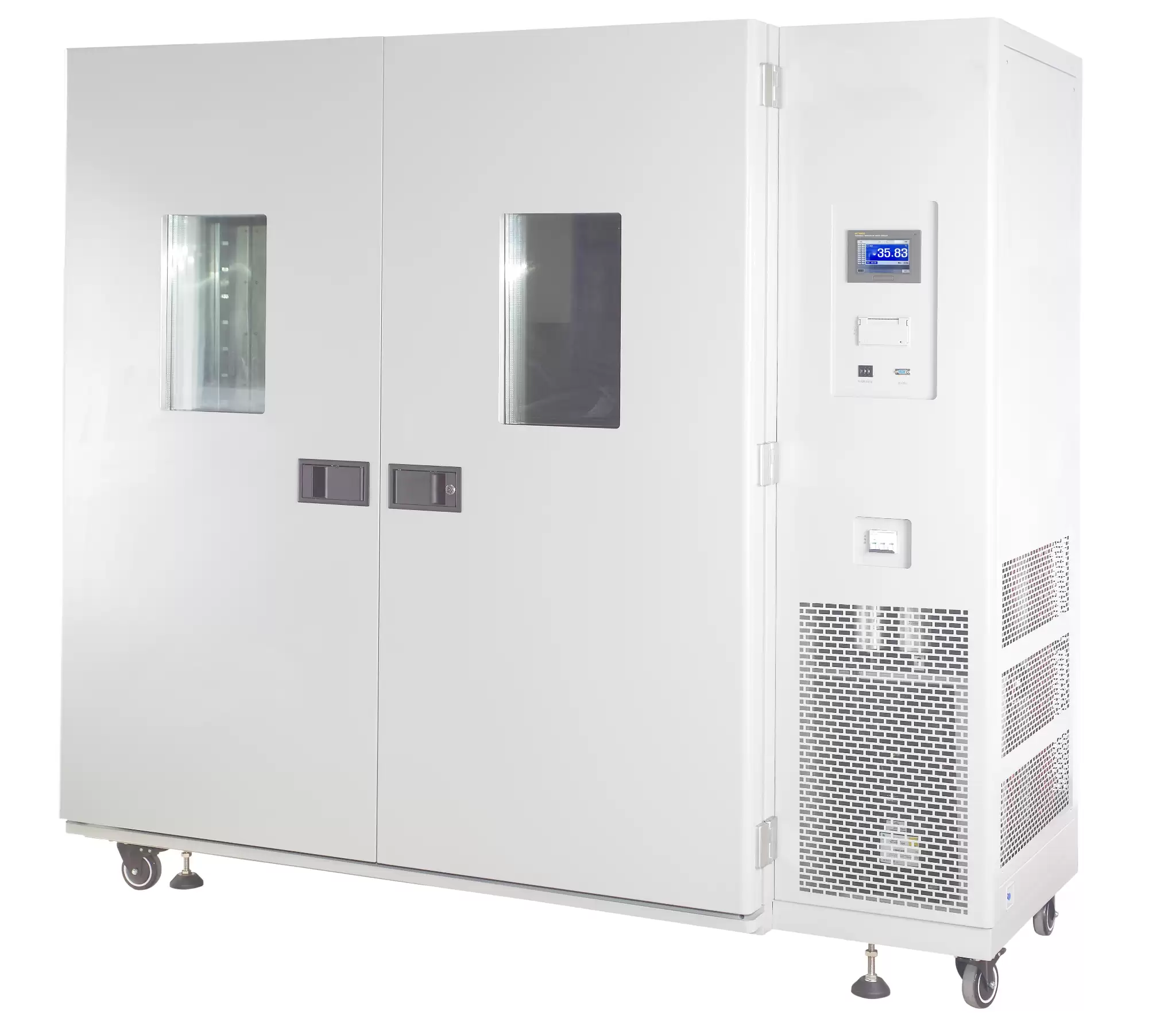

Stability Test Chamber BGI1BH15 (BTST-1615)

Large Medicine Stability Testing Chamber
  • Sea, Air, Door to Door Shipping
  • 1 Year Warranty
  • US & European Standards



Stability Test Chamber 0~65°C without Illumination15~50°C with Illumination ±0.5°C

Specifications

ModelBGI1BH15
Temperature control range0~65°C without Illumination15~50°C with Illumination
Temperature Stability±0.5°C
Temperature Uniformity±2°C ~ ±3°C
Humidity Range35~95%RH
Humidity Stability±3%RH
Illumination0~6000LX adjustable
Illumination difference≤±500LX
Cooling systemcooling modeTwo sets of Imported compressor work rotationally
ControllerProgrammable (touch screen)
SensorTemp: Pt100, Humidity: capacitance sensor
Ambient TemperatureRT+5~30°C
Electrical RequirementAC380V 50Hz
Power Consumption6000W
Operating Power4800W
Chamber Volume1500L
Interior Dimension (WxDxH,mm)1550x590x1650
External Dimension (WxDxH,mm)2110x890x2000
Shelves4(pcs)
Safety DeviceCompressor overheating and overpressure protection, Fan overheating protection, Over temperature protection, Overload protection, Water protections
Remark1. Build in mini printer2. Paperless recorder (Option)3. GSD/GSP series products have 2 layers of light control (Option)4. 1000L and 1500L are double doors
