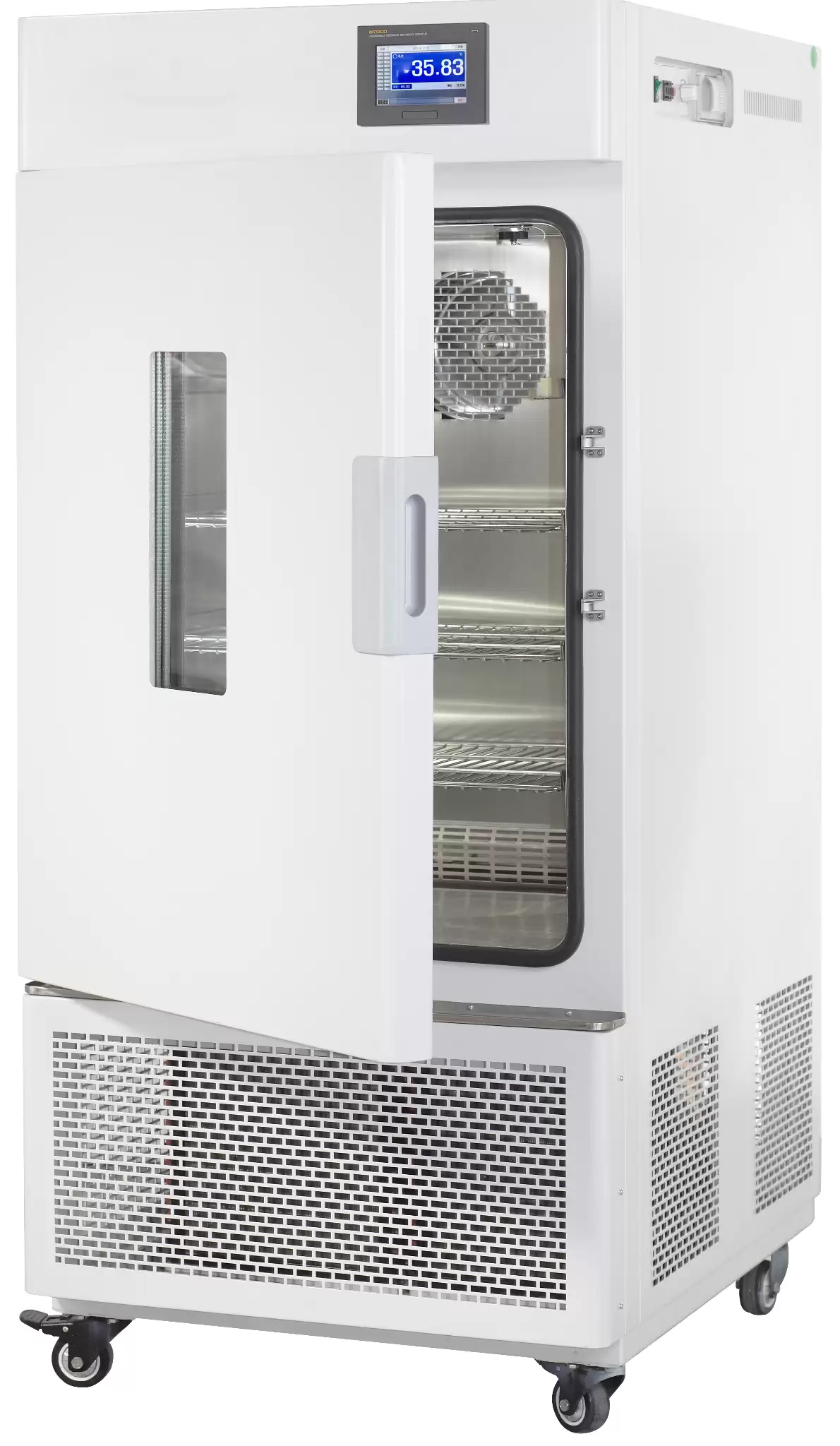

Stability Test Chamber BGI1BG13 (BTST-1513)

Medicine Stability Testing Chamber
  • Sea, Air, Door to Door Shipping
  • 1 Year Warranty
  • US & European Standards



Stability Test Chamber 0~65°C without illumination15~50°C with illumination ±0.5°C

Specifications

ModelBGI1BG13
Temperature control range0~65°C without illumination15~50°C with illumination
Temperature Stability±0.5°C
Temperature Uniformity±2°C
Humidity Range/
Humidity Stability/
Illumination0~6000LX adjustable
Illumination difference≤±500LX
Timing Range1~99 hours each period
Humidity and temp adjustingBalance temperature adjusting
Cooling system/cooling modeTwo sets of imported compressor work rotationally
ControllerProgrammable (LCD screen)
SensorTemp: Pt100
Ambient TemperatureRT+5~30°C
Electrical RequirementAC220V 50Hz
Operating PowerApp.600W
Rated Power3200W
Chamber Volume400L
Interior Dimension (WxDxH,mm)600x580x1140
External Dimension (WxDxH,mm)860x855x1810
Shelves3/4(4pcs)
Safety DeviceCompressor overheating and overpressure protection, Fan overheating protectionOver temperature protection, Overload protection, Water protections
Remark1. Build in Embedded Printer.2. Paperless recorder (Option).3. GP series products have installed intensity of illumination detector.

Features

Microprocessor controller (with timing function)
• Fluorine-free design, R134a refrigerant.
• Microprocessor control, 304 stainless steel chamber, semicircular arcs at corners for easy cleaning
• Even air circulating system.
• 2 imported compressors and fan motor, 2 cooling systems ensure experiments run safely in long time.
• Over temperature and temperature difference alarms, humidity difference alarms.
• Independent audible and visible temperature-limiting alarm system ensures experiments run safely.
• Imported humidity sensor which can be used in high humidity environment.
• Balance temperature and humidity adjusting system.
• There is a 25mm instruction connection hole on the left side of the chamber for easy testing operation and temperature measurement.
• UV light system for periodic sterilization of chamber.(Option)
• RS485 connector can connect computer record and inspect the parameters and the variations of temperature.(Option)

Programmable Touch Screen
• Large LCD screen to display more data at same time
• English operation menu, display current data curves
• 100 groups with 1000 periods 999 circulations, max timing for each period is 99 hours 59 minutes.
• Auto lock after setting data.

Safety device:
• Compressor over-heat protection
• Fan over-heat protection
• Over-temperature alarm system
• Over-compressing protection
• Over-load protection
• Water lack protection

Storage conditions for long-term retention sample stability test
Temperature: +25°C ±2°C
Humidity: 60±5%RH
Time: 12 months
Storage conditions for accelerated stability test
Temperature: +40°C ±2°C
Humidity: 70±5%RH
Time: 6 months
Illumination under strong light conditions: 4500±500LX
Above related parameter is for reference only.

* With model "P" with Programmable Touch Screen
* With model "G" with Light
