Nucleic Acid Purification System
Nucleic Acid Purification System
Nucleic Acid Purification System BFJ1E1



Nucleic Acid Purification System BFJ1E1
Nucleic Acid Purification System- Sea, Air, Door to Door Shipping
- 1 Year Warranty
- US & European Standards

Specifications
Model | BFJ1E1 |
Throughput | 1-32 |
Process Volume | 20-1000ul |
Consumable | 96 deepwell plate+ Magnetic rods tip |
Collection Efficiency | ≥98% |
Stability | CV≤3% |
Operation Temp. Range | 10°C -40°C |
Humidity Range | 10%-90% |
Heating Temp. Range | +5°C -125°C |
Oscillatory Mixed Mode | Adjustable |
Pollution Control | UV light |
Lighting | Yes |
Safety Protection | Auto data protection |
Reagent Type | Magnetic bead reagent |
Display | 10.1 touch screen, Android operation system |
Communication | LAN, USB, Wi-Fi |
Dimension | 430x390x505(LxWxH) |
Weight | 30KG |
Power Supply | AC100-240V, 50Hz/60Hz, 450W |
Features
1. Using high-precision screw to realize the transmission structure, the extraction efficiency is fast, and the nucleic acid yield is high.2. Simple and generous appearance, bright and spacious observation window, working conditions are clearly visible.
3. Use UV light for disinfection to reduce cross-infection and aerosol contamination of
Samples.
4. Android operating system, matching 10.1-inch capacitive touch screen, simple and smooth operation.
5. Real-time display of program progress and remaining time.
6. Adjustable heating mode and vibration gear to meet different experimental needs.
7. Automatic power-off protection, to ensure safe operation of the entire extraction/purification
Process.
8. Fast extraction 15-50 minutes/time ( depending on different reagents ).
9. Quick Experiment
10. Real-Time Observation
More Info

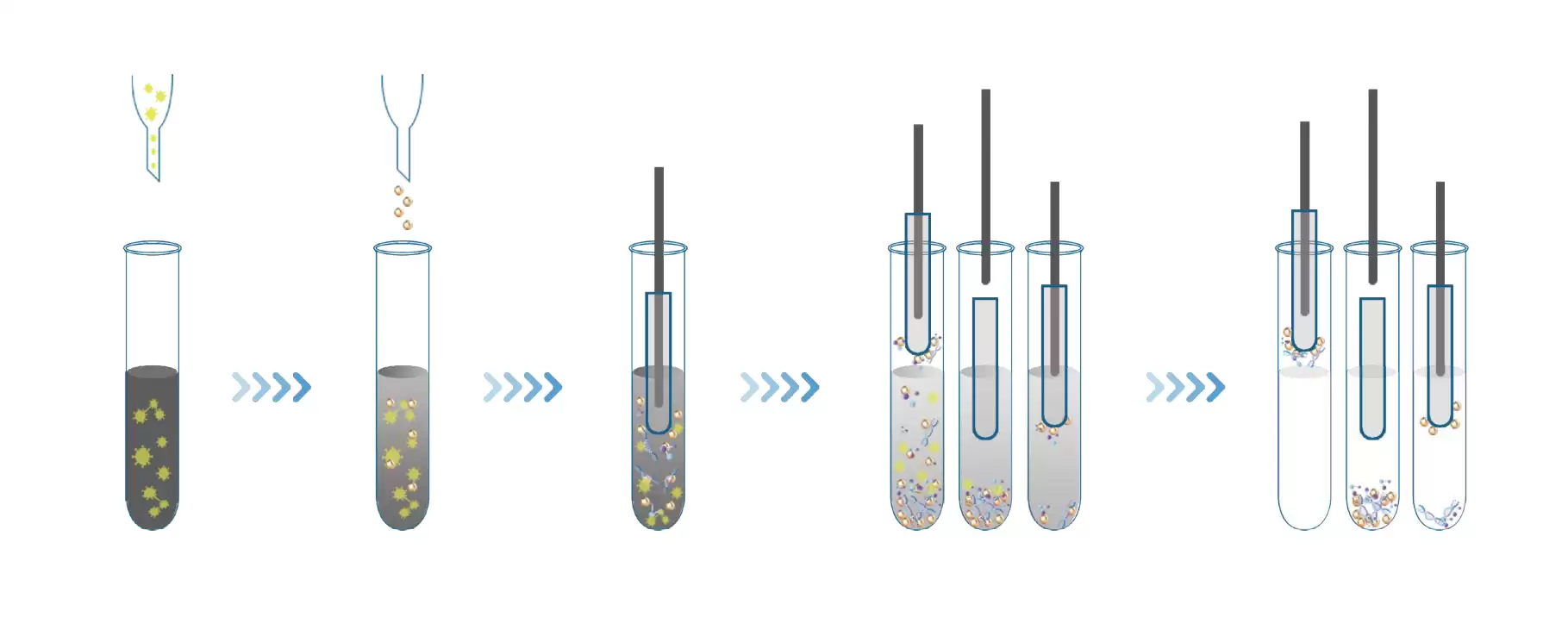

Extraction Principle:The instrument uses the magnetic bead method for nucleic acid extraction. After the lysis solution lyses the cell tissue sample, the nucleic acid molecules freed from the sample are specifically adsorbed by the magnetic beads, and impurities such as proteins are not adsorbed and remain in the solution. The magnetic beads carrying nucleic acid are adsorbed by
a magnetic rod and moved to different reagent tanks. Through repeated rapid stirring and mixing of the liquid, through the steps of cell lysis, nucleic acid adsorption, washing and elution, pure nucleic acid is finally obtained.

1.Lysising 2.Add magnetic beads 3.Binding 4.Transfer+washing 5.Elution
Example of DNA/RNA Extraction:
