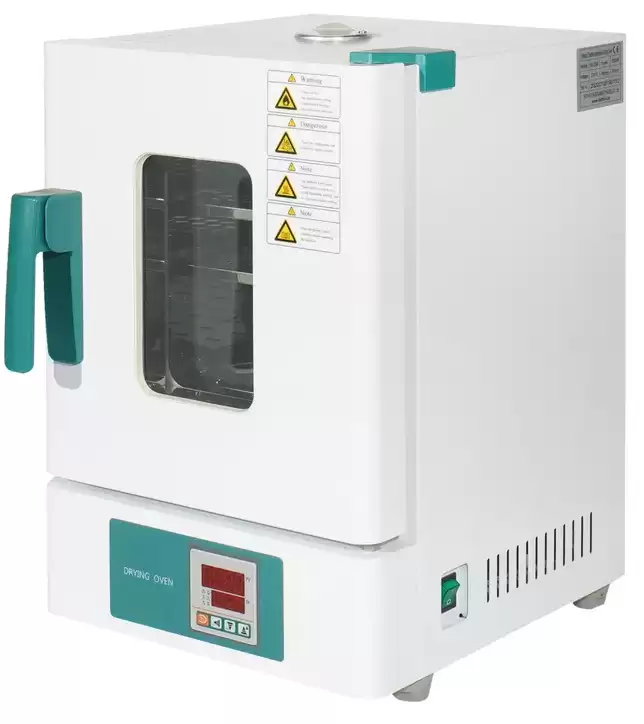

Natural Convection Oven BER1M1
Desktop Constant-temperature Drying Oven/ Incubator- Sea, Air, Door to Door Shipping
- 1 Year Warranty
- US & European Standards
Specifications
| Model | BER1M1 |
| Cycle Mode | Natural Convection |
| Function | |
| --Temp. Range | RT+10-300°C |
| --Temp. Resolution Ratio | 0.1°C |
| --Temp. Motion | ±1°C |
| --Temp. Uniformity | ±3.5% |
| Structure | |
| --Inner Chamber | High strength galvanized sheet |
| --Quter Shell | Cold rolling steel electrostatic spraying exterior |
| --Insulation Layer | High quality rock wool board(with CE) |
| --Heater | Nickel chromium alloy heating wire |
| --Power Rating | 0.6kW |
| --Exhaust Hole | Φ35mm top (with function of test hole) |
| Controller | |
| --Temp. Control Mode | Two temperature section intelligent PID |
| --Temp. Setting Mode | Touch button setting |
| --Temp. Display Mode | Measuring temperature: display on upper row;Setting temperature:display on the lower row |
| --Timer | 0-9999min(with timing wait function) |
| --Operation Function | fixed temperature operation, timing function, auto stop |
| --Additional Function | Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory |
| --Sensor | PT100 |
| Safety Device | over temperature sound-light alarm |
| Specification | |
| --Inner Chamber size(W*L*H)(mm) | 260*260*260 |
| --Exterior Size (W*L*H)(mm) | 380*455*568 |
| --Packing Size (W*L*H)(mm) | 515*480*640 |
| --Volume | 18L |
| --Max. Shelf Number | 6 |
| --Load Per rack | 15kg |
| --Shelf Space | 29mm |
| --Power Rating (50/60HZ) | AC220V/2.7A |
| --NW/GW (kg) | 15/22 |
| Accessory | |
| --Shelf | 2 |
| Optional accessories | Shelf |
Features
1. In the workroom, the hot air is convective naturally and cyclically.2. Digital display microcomputer intelligent PID temperature controller.
3. New anti-hot handle.
