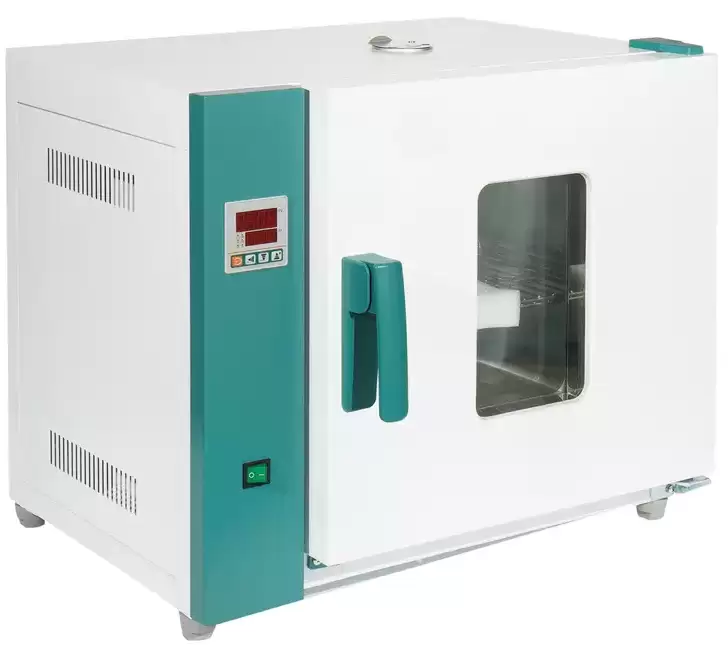

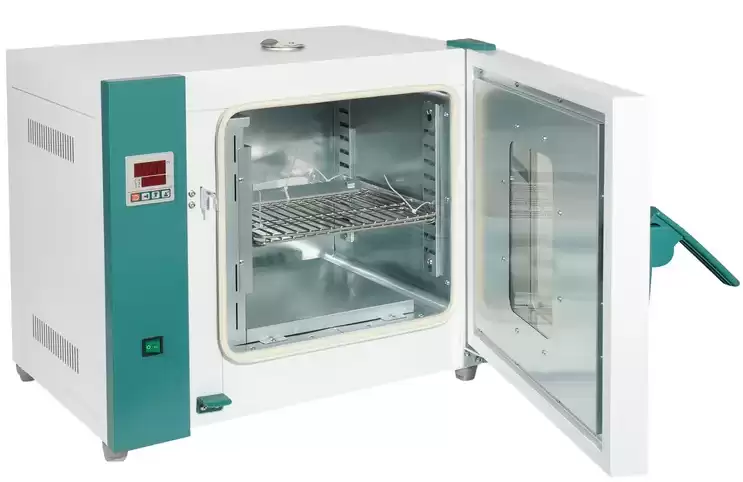

Natural Convection Oven BER1D12
Horizontal Drying Oven- Sea, Air, Door to Door Shipping
- 1 Year Warranty
- US & European Standards
Specifications
| Model | BER1D12 |
| Cycle Mode | Natural convection |
| Function | |
| --Temp. Range | RT+10-250°C |
| --Temp. Resolution Ratio | 0.1°C |
| --Temp. Motion | ±1°C |
| --Temp. Uniformity | ±3.5% |
| Structure | |
| --Inner Chamber | High strength galvanized sheet |
| --Quter Shell | Cold rolling steel electrostatic spraying exterior |
| --Insulation Layer | High quality rock wool board(with CE) |
| --Heater | Stainless steel electric heating tube; |
| --Power Rating | 3.0kW |
| --Exhaust Hole | Φ35mm top(with function of test hole) |
| Controller | |
| --Temp. Control Mode | Two temperature section PID intelligent |
| --Temp. Setting Mode | Touch button setting |
| --Temp. Display Mode | LED Digital display |
| --Timer | 0-9999min(with timing wait function) |
| --Operation Function | Fixed temperature operation, fixed timing operation, auto stop. |
| --Additional Function | Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory |
| --Sensor | PT100 |
| Safety Device | Over temperature sound-light alarm; |
| Specification | |
| --Inner Chamber size(W*L*H)(mm) | 600*500*750 |
| --Exterior Size (W*L*H)(mm) | 902*622*986 |
| --Packing Size (W*L*H)(mm) | 955*755*1150 |
| --Volume | 225L |
| --Max. Shelf Number | 25 |
| --Load Per rack | 15kg |
| --Shelf Space | 25mm |
| --Power Rating (50/60HZ) | AC220V/13.6A |
| --NW/GW (kg) | 77/96 |
| Accessory | |
| --Shelf | 2 |
| --Shelf Frame | 4 |
| Optional accessories | Shelves |
Features
1. Horizontal air type, high space utilization and good temperature uniformity.2. 101: Forced fan cooling intake structure, the maximum working temperature <50 C, the fan
long-term longevity operation.
3. 202:Classical natural convection drying method.
4. New anti-hot handle.
