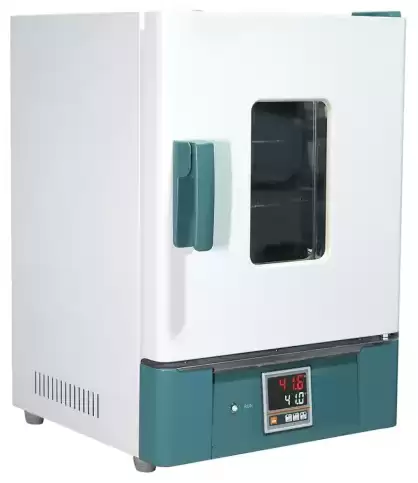

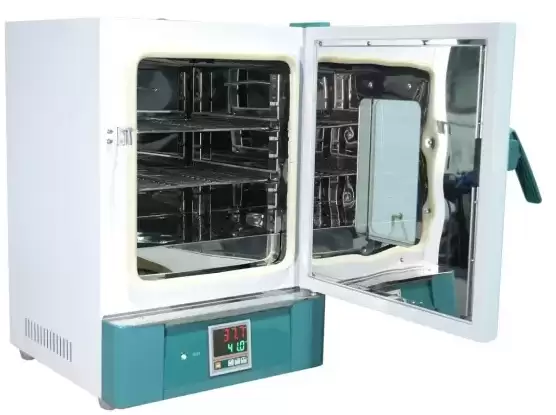

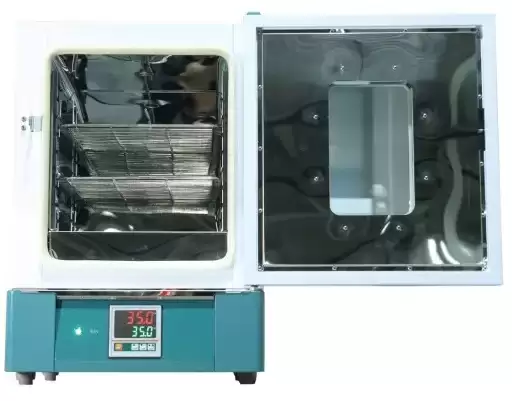

Natural Convection Oven BER1C7 (BONC-302)

Constant-temperature Drying Oven

• Sea, Air, Door to Door Shipping
• 1 Year Warranty
• US & European Standards

Specifications

Model	BER1C7
Cycle Mode	Natural convection
Function
--Temp. Range	RT+10-300°C
--Temp. Resolution Ratio	0.1°C
--Temp. Motion	±1°C
--Temp. Uniformity	±3.5%
Structure
--Inner Chamber	Mirror Stainless Steel
--Quter Shell	Cold rolling steel electrostatic spraying exterior
--Insulation Layer	High quality rock wool board(with CE)
--Heater	Nickel chromium alloy heating wire
--Power Rating	1.2kW
--Exhaust Hole	Φ35mm top(with function of test hole)
Controller
--Temp. Control Mode	Two temperature section PID intelligent
--Temp. Setting Mode	Touch button setting
--Temp. Display Mode	display on LCD
--Timer	0-9999min(with timing wait function)
--Operation Function	Fixed temperature operation, fixed timing operation, auto stop.
--Additional Function	High precision digital independent temperature limiter. sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory
--Sensor	PT100
--Safety Device	Digital Independent Temp. limiter, Over temperature sound-light alarm.
Specification
--Inner Chamber size(W*L*H)(mm)	350*350*350
--Exterior Size (W*L*H)(mm)	500*550*735
--Packing Size (W*L*H)(mm)	580*615*895
--Volume	45L
--Max. Shelf Number	6
--Load Per rack	15kg
--Shelf Space	40mm
--Power Rating (50/60HZ)	AC220V/5.5A
--NW/GW (kg)	37/43
Accessory
--Shelf	2
--Shelf Frame	4
Optional accessories	Spare shelf, RS485 interface, printer, Program controller, U-disk storage;3.5-inch color touch screen temperature controller.

Features

1. In the workroom, the hot air is convective naturally and cyclically.
2. PID micro-computer intelligent temperature controller with functions of over-temperature protection.
3. Standard highlight LED instrument running light.
4. New anti-hot handle.


WHLL-BE series have the following characteristics other than the above functions.
1. LCD temperature controller.
2. Over-temperature protection system.
3. High precision digital independent temperature limiter.

Applications

Used for drying, baking, and heat treatment .
