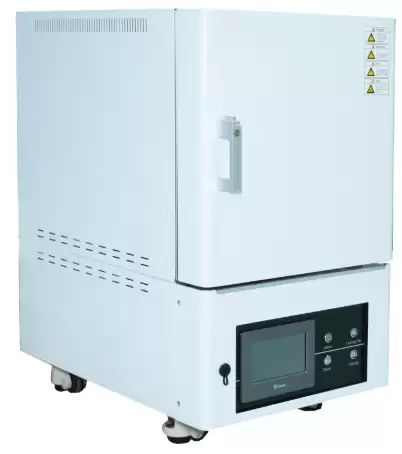

Muffle Box Furnace BER1DI18

1700°c Ceramic Fiber Muffle Furnace, 30 Segment 7.0-inch Touch Screen
  • Sea, Air, Door to Door Shipping
  • 1 Year Warranty
  • US & European Standards



Muffle Box Furnace Max 1700°C (Long-term max continuous operating temp 1650°C) ±1°C

Specifications

ModelBER1DI18
Function
--Temp RangeMax 1700°C (Long-term max continuous operating temp 1650°C)
--Temp Accuracy±1°C
--Temp Resolution Ratio1°C
--Temperature Rise Time≤140 min
Structure
--Variable Hearth VolumeHigh temperature resistant polycrystalline mullite fibre
--ExteriorCold-rolled steel plate, surface spray treatment
--Chamber Size300*400*300
--HeaterHigh temperature resistant silicon molybdenum rod
--Heating Power15kW
Controller
--Temp Control7.0 inch touch screen program temperature controller, with curve view, U diskdata storage function
--Temperature Control ModeIntelligent microcomputer PID control
--Setting Methodtouch operation
--Timer0-9999 minutes
--Operation FunctionFixed value running or program running
--SensorType B thermocouple
--Additional Function
Safety DeviceOver temperature alarm, leakage protection, door off heating
Specification
--Exterior Size750*1065*1250
--Packing Size910*1265*1460
--Inner Volume36L
--Power SupplyAC380V/50Hz
--NW/GW270/320
Addable ConfigurationCharging port

Description

This series of electric furnace is specially developed for sintering, melting and analysis of metal, non-metal and other compound materials in laboratories of universities, research institutes and industrial and mining enterprises.

Features

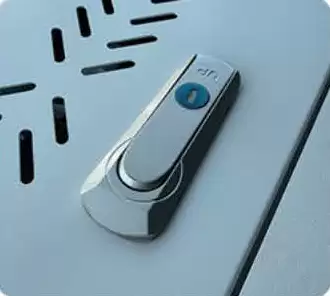

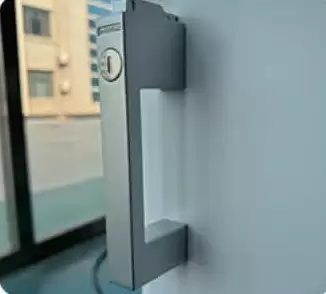

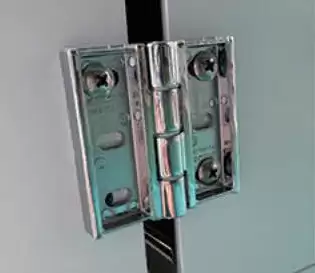

1. Mirror stainless steel mouth, long-term use will not change color. Brand door handle with lock, cover quick removal structure to facilitate the replacement of silicon molybdenum rod.

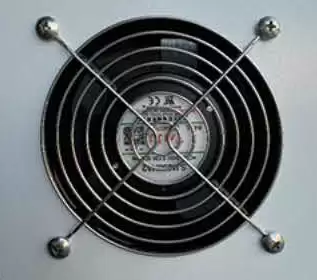

2. Vacuum forming high temperature resistant polycrystalline mullite fiber furnace, efficient heat preservation. Air jacket insulation in double housing. Double ventilation channels to ensure good ventilation and low shell temperature rise.

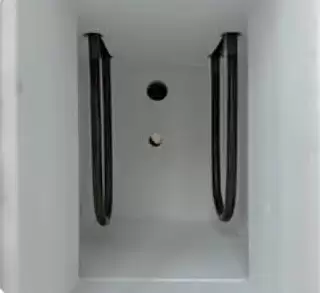

3. High temperature and high purity silicon molybdenum rod, long working life, good furnace temperature uniformity.
4. A full range of standard program temperature control meter, high-precision B-type sensor, voltage regulator module with all copper core transformer, stable furnace temperature control, high precision.

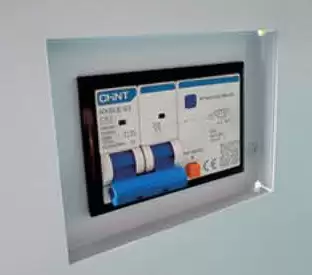

5. Leakage protection, thermocouple failure, open door power off, over-temperature protection, over-temperature sound and light alarm lamp - a number of safety protection measures to ensure the safety of the experiment.
6. Standard heat insulation gloves, crucible pliers, alumina bearing plate.


1. Mirror stainless steel mouth, long-term use will not change color. Brand door handle with lock, cover quick removal
