Moisture Analyzer BFT1F3 (BANA-502)
Halogen Moisture Analyzer- Sea, Air, Door to Door Shipping
- 1 Year Warranty
- US & European Standards
Specifications
| Model | BFT1F3 |
| Capacity | 110g |
| Readability | 0.002g |
| Operating Temp | 5°C-35°C |
| Display | Backlit LCD |
| Calibration | External calibration |
| Interface | RS232(Standard) USB(Optional) |
| Pan Size | Φ90mm |
| Packing Size | 485*340*350mm |
| Gross Weight | 6.8kg |
| Heating Unit | Halogen lamp-1 |
| Temp. Sensor | PT100 |
| Temp. Range | 40°C-199°C |
| Temp. Step | 1°C |
| Moisture Range | 0.00%-100.00% |
| Moisture Readability | 0.04% |
| Dry Range | 100.00%-0.00% |
| Dry Readability | 0.04% |
| Temp Setting | 40°C-199°C By 1°C Step |
| Time Setting | 1-99min By 10s |
| Number Of Storage | 15 |
| Heater power | 220V ±15% 50Hz / 110V ±15% 60Hz / 400W |
| Balance power | Input:220V 50Hz / 110V 60Hz Output:9V |
| Chamber Height | 22mm |
Features
Halogen lamp / HBM sensorAluminum shell / Stainless steel chamber
LCD (White back light with black font)
Temperature / Time set
The percentage of moisture content / Dry residual
Store historical set
Option: Aluminum box / Printer / Grinder / USB
Accessories For Purchase
| Images | Name | Size | Material | Mat |

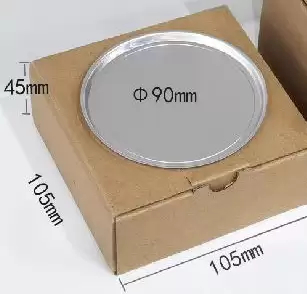

 | Aluminum sample tray 1 | Outer circle Φ 90mm Inner circle Φ 83mm Plate height 4mm | Aluminum | 50 pieces/box |

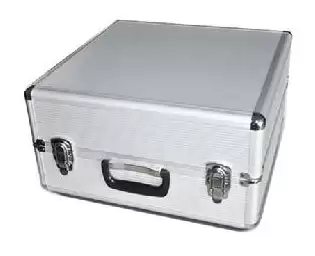

 | Portable aluminum box | 48*44*24cm | ||
 | Temperature kit |
