Moisture Analyzer BFT1D3 (BANA-507)
Intelligent Moisture Analyzer- Sea, Air, Door to Door Shipping
- 1 Year Warranty
- US & European Standards
Specifications
| Model | BFT1D3 |
| Capacity | 210g |
| Readability | 0.001g |
| Operating Temp | 5°C-35°C |
| Pan Size | Φ100mm |
| Heating Source | Halogen lamp |
| Temp. Sensor | PT100 |
| Temp. Range | 40°C-230°C |
| Temp. Step | 1°C |
| Moisture Range | 0.00%-100.00% |
| Moisture Readability | 0.01% |
| Dry Range | 100.00%-0.00% |
| Dry Readability | 0.01% |
| Temp Setting | 40°C-230°C By 1°C Step |
| Time Setting | 1-99min By 1s |
| Number Of Storage | 20 |
| Number Of History | 20 |
| Heating Unit | 110V ±15% 60Hz/400W |
| Balance power | Input:220V 50Hz / 110V 60Hz Output:9V |
| Machine power | Input: 220V 50Hz / 110V 60Hz Output:24V Dual-drive |
| Host Dimension | 415*215*195mm |
| Indicator Dimension | 200*135*80mm |
| Operation Height | 275mm |
| The Chamber Height | 35mm |
| Display | 7 Inch touch panel |
| Interface | RJ45/USB (optional) |
| Communication Mode | Cable |
| Rechargeable Battery | No |
Features
7 Inch touch screenAutomatic door / Transparent window
Highlight halogen lamp
Polymer materials / Heat resistant molding
Dual motor drive / Double fan design
Temp. control / Stainless steel chamber
Real-time dynamic curve / Date and Time
Temperature / Time set
Store historical set
The percentage of moisture content
Connect PC and printer
Option: Printer / USB
High brightness halogen lamp
Accessories For Purchase
| Images | Name | Size | Material | Mat |

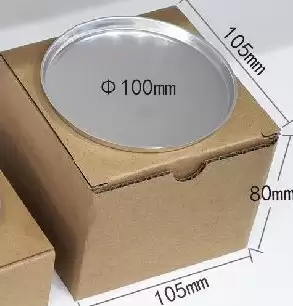

 | Aluminum sample tray 2 | Outer circle Φ 100mm Inner circle Φ 92mm Plate height 6mm | Aluminum | 80 pieces/box |
 | Temperature kit |
