Moisture Analyzer BFT1D2

Intelligent Moisture Analyzer

• Sea, Air, Door to Door Shipping
• 1 Year Warranty
• US & European Standards

Specifications

Model	BFT1D2
Capacity	110g
Readability	0.001g
Operating Temp	5°C-35°C
Pan Size	Φ100mm
Heating Source	Halogen lamp
Temp. Sensor	PT100
Temp. Range	40°C-230°C
Temp. Step	1°C
Moisture Range	0.00%-100.00%
Moisture Readability	0.01%
Dry Range	100.00%-0.00%
Dry Readability	0.01%
Temp Setting	40°C-230°C By 1°C Step
Time Setting	1-99min By 1s
Number Of Storage	20
Number Of History	20
Heating Unit	220V ±15% 50Hz
Balance power	Input:220V 50Hz / 110V 60Hz Output:9V
Machine power	Input: 220V 50Hz / 110V 60Hz Output:24V Dual-drive
Host Dimension	415*215*195mm
Indicator Dimension	200*135*80mm
Operation Height	275mm
The Chamber Height	35mm
Display	7 Inch touch panel
Interface	RS232(Standard)
Communication Mode	Wireless
Rechargeable Battery	10,000mAh

Features

7 Inch touch screen
Automatic door / Transparent window
Highlight halogen lamp
Polymer materials / Heat resistant molding
Dual motor drive / Double fan design
Temp. control / Stainless steel chamber
Real-time dynamic curve / Date and Time
Temperature / Time set
Store historical set
The percentage of moisture content
Connect PC and printer
Option: Printer / USB





High brightness halogen lamp

Accessories For Purchase

images	name	size	material	mat

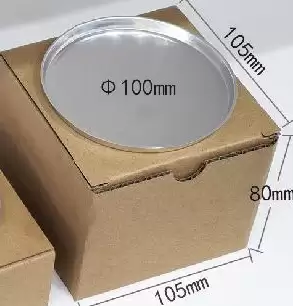

	Aluminum sample tray 2	Outer circle Φ 100mm Inner circle Φ 92mm Plate height 6mm	Aluminum	80 pieces/box
	Temperature kit
