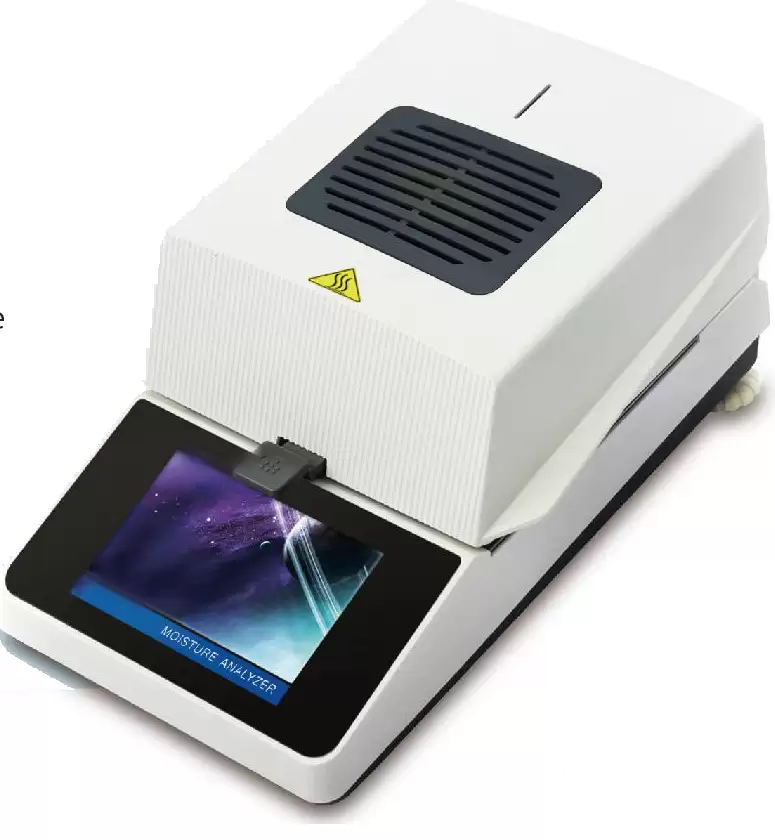

Moisture Analyzer BFT1C3

Basic Moisture Analyzer

• Sea, Air, Door to Door Shipping
• 1 Year Warranty
• US & European Standards

Specifications

Model	BFT1C3
Product Name	ME101
Capacity	110 g
Readability	0.001 g
Sensor	Load Cell
Pan Size	Φ100 mm (20pcs)
Display	5 Inch touch screen
Operate. Temp	5°C-35°C

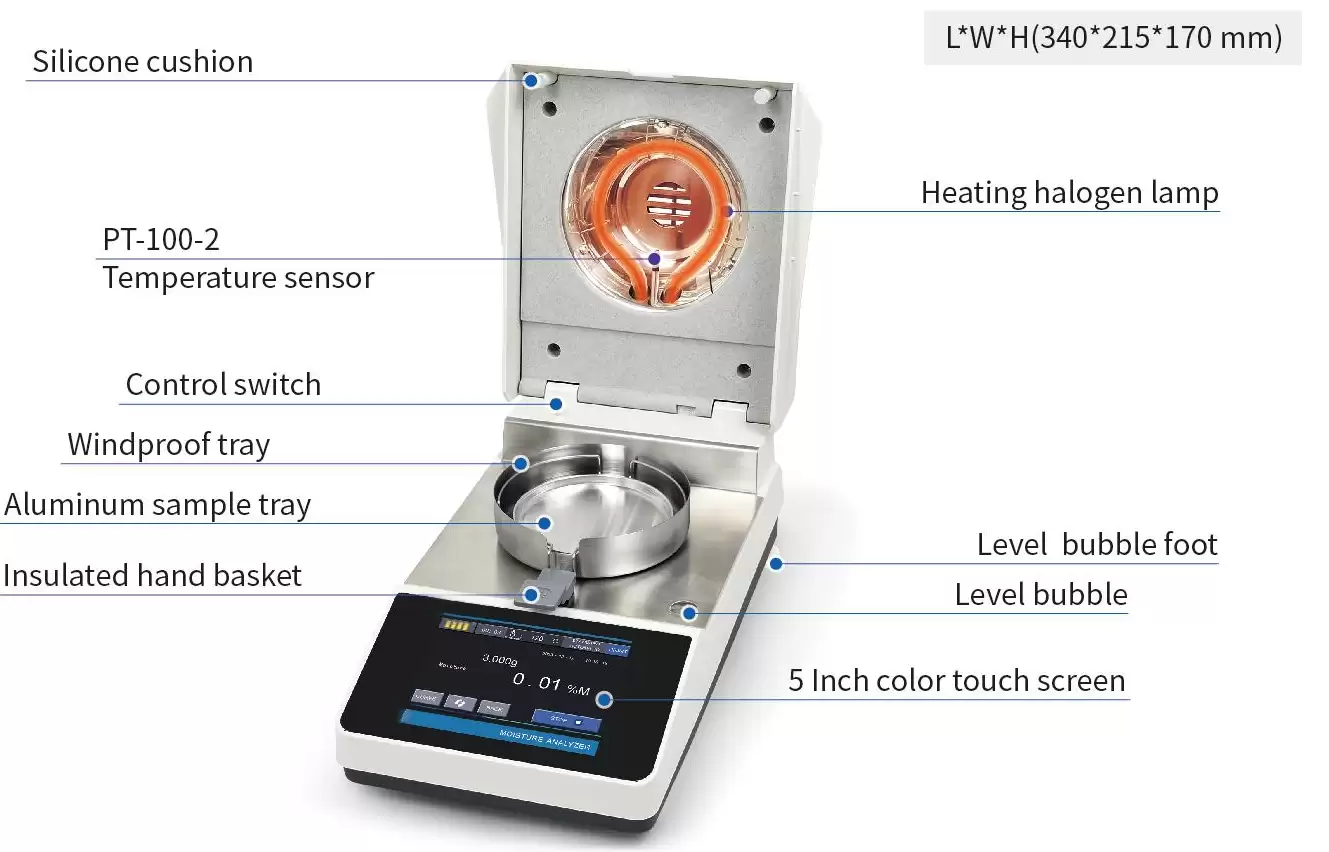

Heating Source	Halogen lamp
Temp. Unit	PT-100-2
Temp. Range	40°C-160°C
Temp. Setting	1°C
Moisture. Range	1.00%-100.00%
Moisture Readability	0.01%
Testing Range	1.00%-100.00%
DRY% Readability	0.01%
Storage	20
Analysis Curve	Real time dynamic curve
Testing Height	30mm
LANGUAGE	EN/CN
Power supplier	220V 50Hz / 110V 60Hz
Dimension	340*215*170mm
Packing Size	415*310*255mm
G.Weight/N.Weight	4.0kg/3.5kg

Features

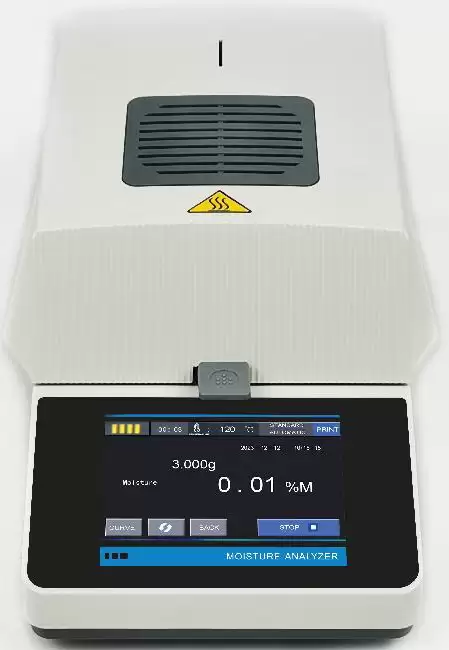

1. 5 Inch touch screen
2.Real time testing curve
3.Standard/Fast/Soft Mode
4.Automatic/Manual/Timed stop mode

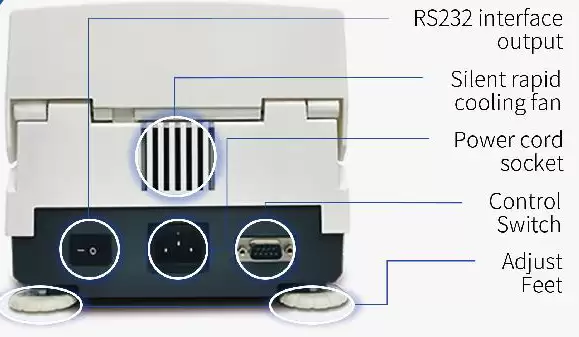

5. Silent fast cooling fan
6. Adaptive input voltage
7.Test frequency selection
8. Clock function
9. Historical test report

Accessories For Purchase

images	name	size	material	mat

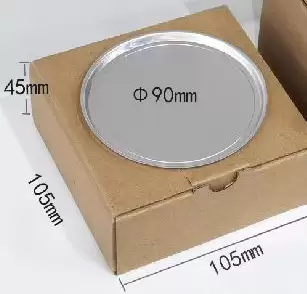

	Aluminum sample tray 1	Outer circle Φ 90mm Inner circle Φ 83mm Plate height 4mm	Aluminum	50 pieces/box
	Temperature kit
