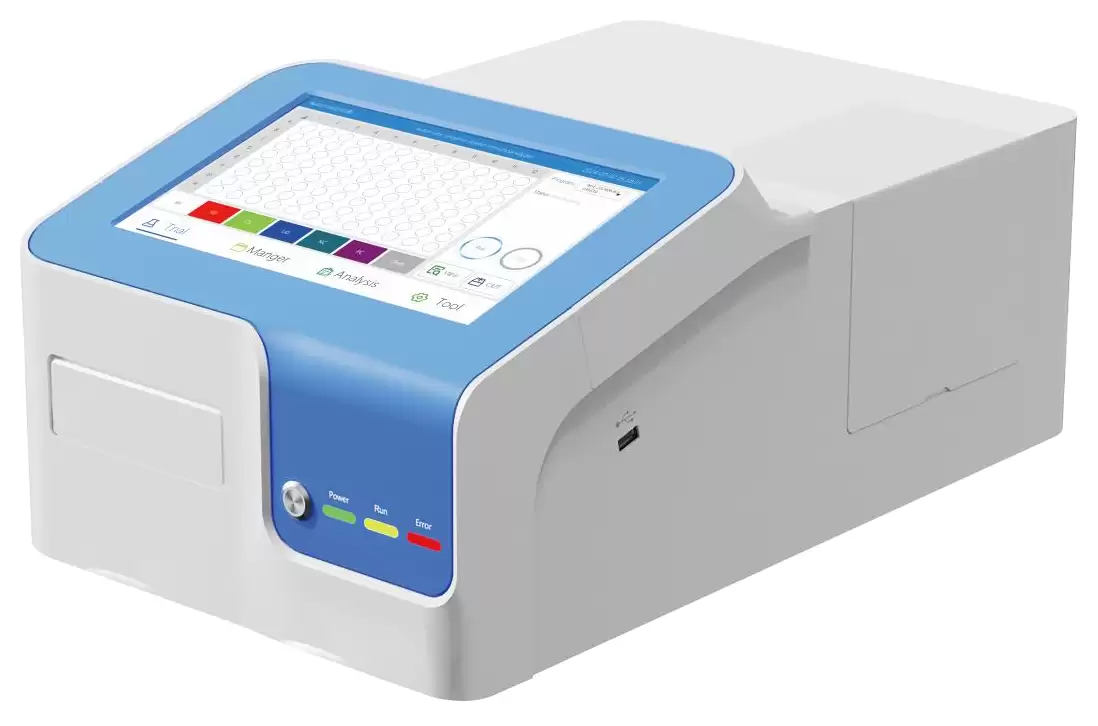

Microplate Reader BFJ1D2
Microplate Reader- Sea, Air, Door to Door Shipping
- 1 Year Warranty
- US & European Standards

Specifications
Model | BFJ1D2 |
Dimension | 300x470x200mm |
Weight | 13kg |
Light Source | 6V10W long life halogen lamp |
Wavelength | 400-750nm |
Filter | Four filters of 405, 450, 492 and 630nm are equipped as standard, and up to eight filters can be loaded |
Filter Width | 6-8nm |
Absorbent | 0.000-4.000 OD |
Resolution | 0.001 OD |
Linearity | The correlation coefficient is greater than 0.999(0, 2.0),and the correlation coefficient is greater than 0.99(2.0, 4.0) |
Wavelength Error | ±3nm |
Wavelength Repetitiveness | ±1.5nm |
Repetitiveness | ≤0.3%(0, 3.0), ≤2%(3.0, 4.0) |
Stability | ≤0.3%(0, 3.0), ≤2%(3.0, 4.0) |
Accuracy | ±0.005 OD(0, 2.0), ≤±1%(2.0, 3.0), ≤±1.5%(3.0, 4.0) |
Sensitivity | Sensitivity≥0.010 OD |
Channel Difference | <0.01 OD (1.0 OD Standard filter) |
Measuring Speed | Single wavelength 6 seconds/96 wells, double wavelength 10 seconds/96 wells |
Vibrating Plate | 3 speeds (high, medium, low) |
Temperature Range | / |
Control Method | 10.1 -inch touch screen, embedded software |
Data Export | excel, txt, pdf, xls |
Report can be printed (optional USB thermal printer) | |
Communication | A type USBx2, B type USB, Ethernet port, Serial Port |
Features
1. 10.1-inch touch screen, can operate, store, print without external computers.2. 8-channel optical filter measurement system, you can manually replace the filter.
3. You can measure the end point method, dynamics, suppression rate, etc.
4. Panel visualization operation, data displayed completely.
5. Up to 100 preset test items, greatly improving the testing efficiency of commonly used items.
6. Using the principle of optoelectronics to perform enzyme immunization measurement of samples.
7. Easy Operation
8. Convenient and Efficient

Setting Interface

Test Setting Interface

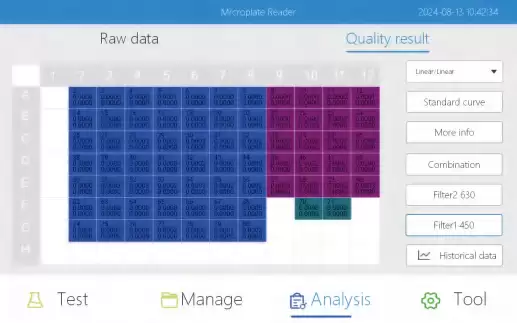

Data Analysis Interface
