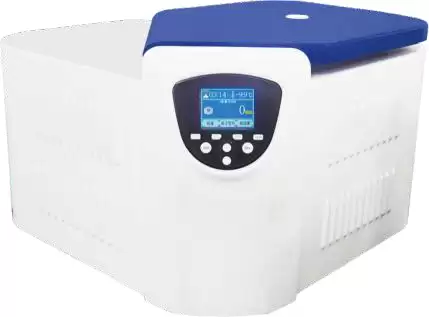

Laboratory High Speed Refrigerated Centrifuge BET1R1

Intelligent High Speed Refrigerated Centrifuge
  • Sea, Air, Door to Door Shipping
  • 1 Year Warranty
  • US & European Standards



Laboratory High Speed Refrigerated Centrifuge 24,000r/min 41,470xg

Specifications

ModelBET1R1
Max speed24,000r/min
Max RCF41,470xg
Standard rotor12x1.5/2.0ml (titanium alloy)
Max capacity4x100ml
Speed accuracy±30r/min (customizable, multiples of 10)
Refrigeration systemImported fluorine-free refrigeration compressor unit and eco-friendly refrigerant R404a
Control and drive systemHigh torque AC/DC brushless motor, microcomputer control
Temperature control range-20°C~+40°C
Temperature control accuracy±1°C
Number of running programs100
Total power1.5kW
Timer range1min~99h59min59s, with continuous centrifugation and instantaneous centrifugation
Noise≤65dB(A)
Rotor recognitionAuto rotor identification
Weight75kg
Dimensions (LxWxH)710mmx630mmx370mm

Features

• With single-chip microcomputers, self-developed control boards and high-torque AC/DC brushless motors, these concentrators can run stably with lower noise, allowing for a comfortable laboratory environment.
• Imported fluorine-free refrigeration compressor unit and eco-friendly refrigerant R404a, allowing for a wide temperature control range: -20°C to +40°C (can be set during operation); pre-cooling function (quickly cool down to the set temperature); standby cooling function (maintain the set temperature in the standby state); heating and defrosting function.
• Early warning functions such as overspeed, overheating, imbalance, undervoltage, and overvoltage warnings; three-stage damping shock absorber, a specially combined shock absorbing device to ensure the motor runs smoothly and safely and prevent samples from resuspending, thus securing excellent centrifugal effect.
• TFT-LCD true color display screen, dual operation modes of touch screen and physical keys, and special keys for centrifugal force display, display of the set parameters and operating parameters at the same time, modification of parameters at any time during operation without interruption; intuitive, simple, and easy-to-use interface; operation menu in multiple languages
• Biosafety air-tight fix-angle rotor adopting an integral silicone rubber sealing ring (EU RoHS 2015/863) to avoid aerosol overflow and fully ensure the safety of operators and lab environments.
• Stainless steel centrifugal chamber at the rear equipped with an all-steel plastic-sprayed housing, integrally formed stamping steel front cover, and a three-layer steel protective cover, which is sturdy and durable to ensure the safety of operators and labs.
• Exquisite industrial appearance design with a novel and artistic diamond shape, more suitable for placement in the corner, saving the limited bench space of labs.
• Silent, easy-to-use mechatronics motor door lock (gently close the door, and the locking system will be triggered to lock the door securely).
• 10 levels speed-up and speed-down control; storage of up to 100 sets of user-defined programs; easy calling of frequently used programs (the last used programs are called when the device is powered on).
• Multi-specification forged aerospace aluminum rotors (fix-angle rotors only) and a variety of optional polyamide fiber adapters, suitable for 0.2mL to 100mL centrifuge tubes or reagent bottles; able to centrifuge all types of MTP microplates, PCR plates, and cell culture plates.
• CFDA registration and production qualification, with ISO 9001 (2015) and ISO 13485 (2016) certifications.

Applications

With a variety of optional fix-angle rotors and swing-out rotors and up to 100 sets of custom programs. This centrifuges that are extraordinarily versatile. They are used for bacteria and protein precipitation, nucleic acid extraction, cell/subcellular fractionation, and environmental sample processing.

Accessories For Purchase

imagesnamedescription
imagesnamedescriptionog_pricepriceFixed-angle Rotor12x1.5/2.0mlMax RPM:20,800r/minMax RCF:31,150xgFixed-angle
Fixed-angle Rotor
12x1.5/2.0ml
Max RPM:
20,800r/min
Max RCF:
31,150xg
imagesnamedescriptionog_pricepriceFixed-angle Rotor12x1.5/2.0mlMax RPM:20,800r/minMax RCF:31,150xgFixed-angle
Fixed-angle Rotor
12x1.5mL
Max RPM:
20,800r/min
Max RCF:
31,150xg
imagesnamedescriptionog_pricepriceFixed-angle Rotor12x1.5/2.0mlMax RPM:20,800r/minMax RCF:31,150xgFixed-angle
Fixed-angle Rotor
24x1.5/2.0ml
Max RPM:
15,000r/min
Max RCF:
22,500xg
imagesnamedescriptionog_pricepriceFixed-angle Rotor12x1.5/2.0mlMax RPM:20,800r/minMax RCF:31,150xgFixed-angle
Fixed-angle Rotor
48x1.5mL
Max RPM: 13,000r/min
Max RCF: 18,750xg
imagesnamedescriptionog_pricepriceFixed-angle Rotor12x1.5/2.0mlMax RPM:20,800r/minMax RCF:31,150xgFixed-angle
Fixed-angle Rotor
12x5mL
Max RPM: 15,000r/min
Max RCF: 17,320xg
imagesnamedescriptionog_pricepriceFixed-angle Rotor12x1.5/2.0mlMax RPM:20,800r/minMax RCF:31,150xgFixed-angle
Fixed-angle Rotor
12x10mL
Max RPM: 14,000r/min
Max RCF: 19,790xg
Bio-isolated rotor cover
imagesnamedescriptionog_pricepriceFixed-angle Rotor12x1.5/2.0mlMax RPM:20,800r/minMax RCF:31,150xgFixed-angle
Fixed-angle Rotor
12x15 ml/10ml (through-holes)
Max RPM: 6,000r/min
Max RCF: 3,740xg
imagesnamedescriptionog_pricepriceFixed-angle Rotor12x1.5/2.0mlMax RPM:20,800r/minMax RCF:31,150xgFixed-angle
Fixed-angle Rotor
8x15ml (conical-bottom)
Max RPM: 12,000r/min
Max RCF: 15,840xg
Bio-isolated rotor cover
imagesnamedescriptionog_pricepriceFixed-angle Rotor12x1.5/2.0mlMax RPM:20,800r/minMax RCF:31,150xgFixed-angle
Fixed-angle Rotor
8x15ml (round-bottom)
Max RPM: 12,000r/min
Max RCF: 15,400xg
Bio-isolated rotor cover
imagesnamedescriptionog_pricepriceFixed-angle Rotor12x1.5/2.0mlMax RPM:20,800r/minMax RCF:31,150xgFixed-angle
Fixed-angle Rotor
6x50ml
Max RPM: 12,000r/min
Max RCF: 17,420xg
Bio-isolated rotor cover
Optional conical-to-round
adapter
imagesnamedescriptionog_pricepriceFixed-angle Rotor12x1.5/2.0mlMax RPM:20,800r/minMax RCF:31,150xgFixed-angle
Fixed-angle Rotor
6x50ml (through-holes)
Max RPM: 6,000r/min
Max RCF: 3,670xg
imagesnamedescriptionog_pricepriceFixed-angle Rotor12x1.5/2.0mlMax RPM:20,800r/minMax RCF:31,150xgFixed-angle
Fixed-angle Rotor
4x100ml (round-bottom)
Max RPM: 10,000r/min
Max RCF: 11,400xg
Bio-isolated rotor cover
imagesnamedescriptionog_pricepriceFixed-angle Rotor12x1.5/2.0mlMax RPM:20,800r/minMax RCF:31,150xgFixed-angle
Swing-out rotor
4x50ml
Max RPM: 4,000r/min
Max RCF: 2,650xg
imagesnamedescriptionog_pricepriceFixed-angle Rotor12x1.5/2.0mlMax RPM:20,800r/minMax RCF:31,150xgFixed-angle
Swing-out rotor
4x100ml
Max RPM: 4,000r/min
Max RCF: 2,460xg
imagesnamedescriptionog_pricepriceFixed-angle Rotor12x1.5/2.0mlMax RPM:20,800r/minMax RCF:31,150xgFixed-angle
Microplate Rotor
2x2x48 holes
Max RPM: 3,000r/min
Max RCF: 1,120xg


imagesnamedescription
imagesnamedescriptionog_pricepriceFixed-angle Rotor12x1.5/2.0mlMax RPM:20,800r/minMax RCF:31,150xgFixed-angle
Fixed-angle Rotor
12x1.5/2.0ml
Max RPM:
12,000r/min
Max RCF:
10,360xg
imagesnamedescriptionog_pricepriceFixed-angle Rotor12x1.5/2.0mlMax RPM:20,800r/minMax RCF:31,150xgFixed-angle
Fixed-angle Rotor
12x1.5mL
Max RPM:
12,000r/min
Max RCF:
10,360xg
Bio-isolated rotor cover
imagesnamedescriptionog_pricepriceFixed-angle Rotor12x1.5/2.0mlMax RPM:20,800r/minMax RCF:31,150xgFixed-angle
Fixed-angle Rotor
24x1.5/2.0ml
Max RPM:
11,500r/min
Max RCF:
13,220xg
Bio-isolated rotor cover
imagesnamedescriptionog_pricepriceFixed-angle Rotor12x1.5/2.0mlMax RPM:20,800r/minMax RCF:31,150xgFixed-angle
Fixed-angle Rotor
12x5mL
Max RPM: 12,000r/min
Max RCF: 11,080xg
imagesnamedescriptionog_pricepriceFixed-angle Rotor12x1.5/2.0mlMax RPM:20,800r/minMax RCF:31,150xgFixed-angle
Fixed-angle Rotor
12x10mL
Max RPM: 11,000r/min
Max RCF: 12,220xg
Bio-isolated rotor cover
imagesnamedescriptionog_pricepriceFixed-angle Rotor12x1.5/2.0mlMax RPM:20,800r/minMax RCF:31,150xgFixed-angle
Fixed-angle Rotor
12x15 ml/10ml (through-holes)
Max RPM: 6,000r/min
Max RCF: 3,740xg
imagesnamedescriptionog_pricepriceFixed-angle Rotor12x1.5/2.0mlMax RPM:20,800r/minMax RCF:31,150xgFixed-angle
Fixed-angle Rotor
6x50ml
Max RPM: 10,000r/min
Max RCF: 12,100xg
Bio-isolated rotor cover
Optional conical-to-round
adapter
imagesnamedescriptionog_pricepriceFixed-angle Rotor12x1.5/2.0mlMax RPM:20,800r/minMax RCF:31,150xgFixed-angle
Fixed-angle Rotor
6x50ml (through-holes)
Max RPM: 6,000r/min
Max RCF: 3,670xg
imagesnamedescriptionog_pricepriceFixed-angle Rotor12x1.5/2.0mlMax RPM:20,800r/minMax RCF:31,150xgFixed-angle
Fixed-angle Rotor
4x100ml (round-bottom)
Max RPM: 8,000r/min
Max RCF: 7,290xg
Bio-isolated rotor cover
imagesnamedescriptionog_pricepriceFixed-angle Rotor12x1.5/2.0mlMax RPM:20,800r/minMax RCF:31,150xgFixed-angle
Swing-out rotor
4x50ml
Max RPM: 4,000r/min
Max RCF: 2,650xg
imagesnamedescriptionog_pricepriceFixed-angle Rotor12x1.5/2.0mlMax RPM:20,800r/minMax RCF:31,150xgFixed-angle
Swing-out rotor
4x100ml
Max RPM: 4,000r/min
Max RCF: 2,460xg
imagesnamedescriptionog_pricepriceFixed-angle Rotor12x1.5/2.0mlMax RPM:20,800r/minMax RCF:31,150xgFixed-angle
Microplate Rotor
2x2x48 holes
Max RPM: 3,000r/min
Max RCF: 1,120xg
