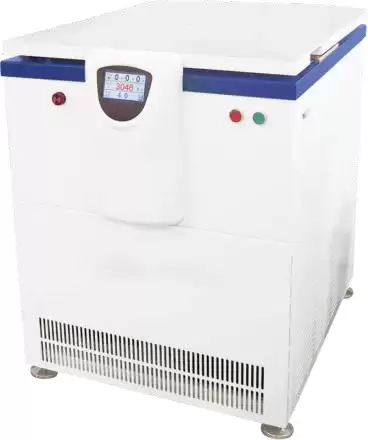

Laboratory High Speed Centrifuge BET1BF1
Soil Pf Curve Centrifuge- Sea, Air, Door to Door Shipping
- 1 Year Warranty
- US & European Standards
Specifications
| Model | BET1BF1 |
| Max capacity | 4x100ml |
| Max RCF | 14,758xg |
| Max speed | 10,000r/min |
| Measurement range | pF 2.0-4.2 (0.1 bar-15 bar) |
| Samples | 4/time |
| Speed accuracy | ±30r/min (customizable, multiples of 10) |
| Number of running programs | 16 |
| Control and drive system | High torque variable frequency AC motor, microcomputer control |
| Compressor | Imported fluorine-free refrigeration compressor unit and eco-friendly refrigerant R404a |
| Temperature control range | -20°C~+40°C |
| Temperature control accuracy | ±1°C |
| Timer range | 1min~99h59min59s, with continuous centrifugation and instantaneous centrifugation |
| Total power | 4.0kW |
| Power supply | AC220V/50Hz/30A |
| Noise | ≤65dB (A) |
| Weight | 240kg |
| Dimensions (L x W x H) | 710mmx910mmx950mm |
Description
The soil pF-curve is determined by the relationship between soil suction, volume-weight and gravimetric water content. With these three elements, thus gaining a highly accurate soil water characteristic curve, or pF-curve. Generally, the soil water characteristic curve is measured through methods such as the pressure membrane (chamber) and the centrifuge. The centrifuge method is widely used in fields like soil water dynamics simulation, meteorology and climatology, soil geography, hydrology, and agricultural science and technology as it is easier to operate and less time-consuming, and has a wider measurable suction range.Accessories For Purchase
| images | name | description |
 | Soil dehydrating rotor | Rotor capacity: 4x100ml Max RPM: 10,000r/min Max RCF: 14,758xg Container dimension: φ50x51mm Number of dehydrating containers: 4 |
