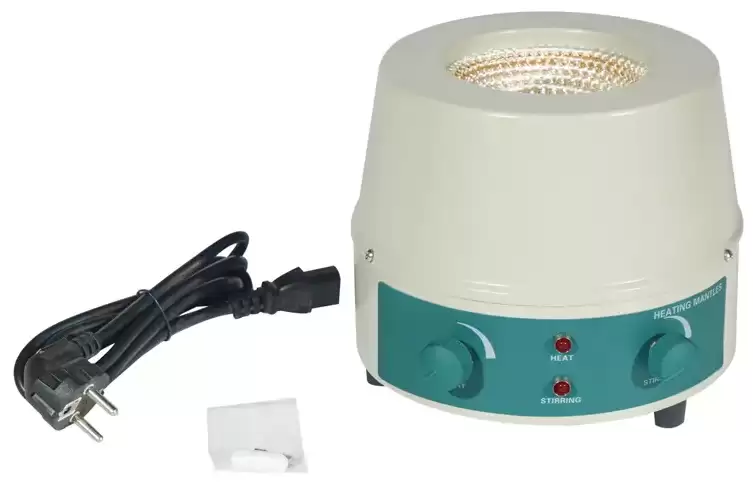

Heating Mantle BER1BV7
Digital & Magnetic Stirring Heating Mantles, Digital & Magnetic Stirring Heating- Sea, Air, Door to Door Shipping
- 1 Year Warranty
- US & European Standards
Specifications
| Model | BER1BV7 |
| Function | |
| Capacity | 3000ml |
| Heating Mode | Surface heat-conduction |
| Surface Max.Temp.(°C) | 450°C |
| Temperature control range | RT+20~250°C |
| Speed Range | 0-1600rpm |
| Structure | |
| Heating Element | Nichrome wire |
| Stir Bar | PTFE |
| Insulation Layer | High quality aluminum silicate cotton |
| Shell | Cold roller steel plate, surface spraying |
| Motor Power | 0.01kW |
| Heating Power (kW) | 0.6 |
| Controller | |
| Working Mode | Continuous |
| Specification | |
| Exterior Size (mm) | Φ340x245 |
| Packing Size (mm) | 360x360x310 |
| Voltage(V) | 200-240V |
| N.W. (Kg) | 7.5 |
| G.W. (Kg) | 8 |
Features
1. PID single screen temperature controller.2. Heating and stirring can be used simultaneously, stepless speed adjustable.
3. PT100 temperature sensor, with adjustable sensor rack and stainless rods.
4. Up to 450°C general heating equipment.
