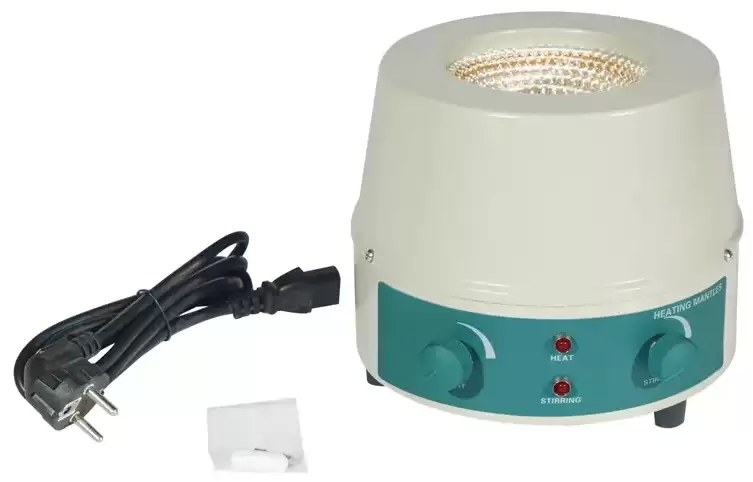

Heating Mantle BER1BV2
Digital & Magnetic Stirring Heating Mantles, Digital & Magnetic Stirring Heating- Sea, Air, Door to Door Shipping
- 1 Year Warranty
- US & European Standards
Specifications
| Model | BER1BV2 |
| Function | |
| Capacity | 100ml |
| Heating Mode | Surface heat-conduction |
| Surface Max.Temp.(°C) | 450°C |
| Temperature control range | RT+20~250°C |
| Speed Range | 0-1600rpm |
| Structure | |
| Heating Element | Nichrome wire |
| Stir Bar | PTFE |
| Insulation Layer | High quality aluminum silicate cotton |
| Shell | Cold roller steel plate, surface spraying |
| Motor Power | 0.01kW |
| Heating Power (kW) | 0.1 |
| Controller | |
| Working Mode | Continuous |
| Specification | |
| Exterior Size (mm) | Φ220x165 |
| Packing Size (mm) | 230x230x195 |
| Voltage(V) | 100-120V or 200-240V |
| N.W. (Kg) | 2.5 |
| G.W. (Kg) | 2.8 |
Features
1. PID single screen temperature controller.2. Heating and stirring can be used simultaneously, stepless speed adjustable.
3. PT100 temperature sensor, with adjustable sensor rack and stainless rods.
4. Up to 450°C general heating equipment.
