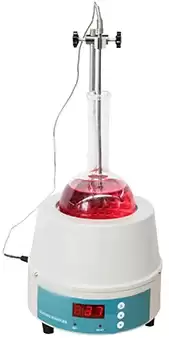

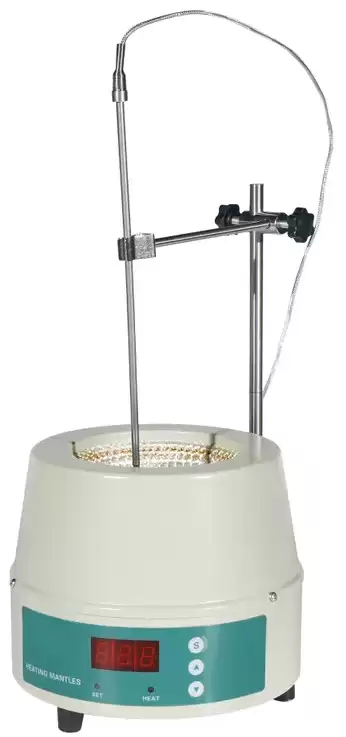

Heating Mantle BER1BU2
Digital Display Heating Mantle- Sea, Air, Door to Door Shipping
- 1 Year Warranty
- US & European Standards
Specifications
| Model | BER1BU2 |
| Function | |
| Capacity | 100ml |
| Heating Mode | Surface heat-conduction |
| Surface Max.Temp.(°C) | 450°C |
| Temperature control range | RT+20~250°C |
| Structure | |
| Heating Element | Nichrome wire |
| Insulation Layer | High quality aluminum silicate cotton (with CE) |
| Shell | Cold roller steel plate, surface spraying |
| Heating Power (kW) | 0.1 |
| Controller | |
| Working Mode | Continuous |
| Specification | |
| Exterior Size (mm) | Φ220x165 |
| Packing Size (mm) | 230x230x195 |
| Voltage(V) | 100-120V or 200-240V |
| N.W. (Kg) | 2.5 |
| G.W. (Kg) | 2.8 |
Features
1. PID single screen temperature controller. Fast heating, good temperature uniformity and high precise temperature control.2. Several rows type, produce as customer inquiry, beautiful shape, easy to operate and effective. Beautiful shape, easy to operate and effective.
3. PT100 Temperature sensor, with adjustable sensor rack and stainless rods.
4. Up to 450°C general heating equipment.
