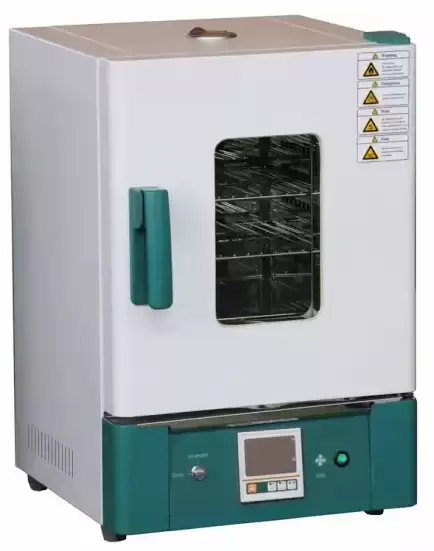

Forced Convection Oven BER1H2

Drying Oven/incubator (double Function)

• Sea, Air, Door to Door Shipping
• 1 Year Warranty
• US & European Standards

Specifications

Model	BER1H2
Cycle Mode	Forced convection
Function
--Temp. Range	Incubator:RT+5-80°C Drying oven:80-300C
--Temp. Resolution Ratio	0.1°C
--Temp. Motion	±1°C
--Temp. Uniformity	±2.5%
Structure
--Inner Chamber	Mirror stainless steel
--Quter Shell	Cold rolling steel electrostatic spraying exterior 304:SUS 304 embossed stainless steel shell
--Insulation Layer	High quality rock wool board(with CE)
--Heater	Stainless steel heater
--Power Rating	1.2kW
--Exhaust Hole	Φ35mm top(with function of test hole)
Controller
--Temp. Control Mode	Two temperature section PID intelligent
--Temp. Setting Mode	Touch button setting
--Temp. Display Mode	LED Digital display
--Timer	0-9999min(with timing wait function)
--Operation Function	Fixed temperature operation, timing function, auto stop.
--Additional Function	Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory
--Sensor	PT100
--Safety Device	Over temperature sound-light alarm;
Specification
--Inner Chamber size(W*L*H)(mm)	350*350*350
--Exterior Size (W*L*H)(mm)	500*550*735
--Packing Size (W*L*H)(mm)	580*615*895
--Volume	45L
--Max. Shelf Number	6
--Load Per rack	15kg
--Shelf Space	40mm
--Power Rating (50/60HZ)	AC220V/5.5A
--NW/GW (kg)	37/43
Accessory
--Shelf	2
--Shelf Frame	4
Optional accessories	Spare shelf

Features

1. Horizontal air circularly by double air ducts, high efficiency and high uniformity.
2. PID controller, with over-temperature protection function.
3. With oven/Incubator change switch, fan switch; and high temperature blast motor, LED digital display.
5. New anti-hot handle.


GP-BE series have the following characteristics other than the above functions.
1. LCD temperature controller.
2. 4 grades speed fan, adjustable for different requirements.
3. Over-temperature protection system.
4. High precision digital independent temperature limiter.
5. 304:SUS304 Stainless Steel Body.

Applications

Drying, baking, wax, heat treatment and bacterial culture in one chamber.
