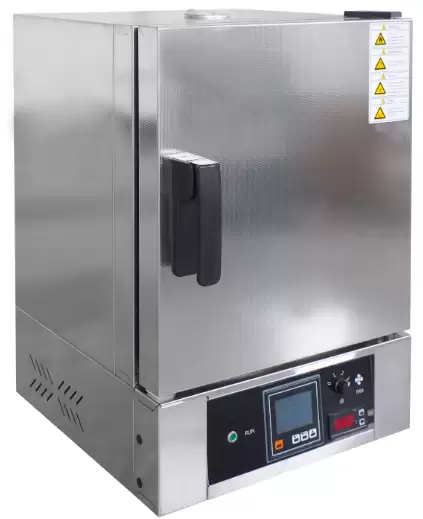

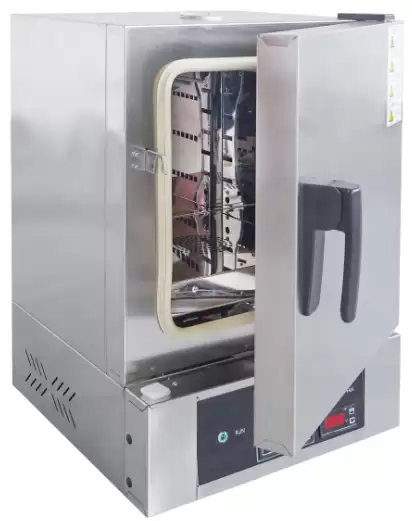

Forced Convection Oven BER1DC6

Forced Air Drying Oven

• Sea, Air, Door to Door Shipping
• 1 Year Warranty
• US & European Standards

Specifications

Model	BER1DC6
Cycle Mode	Forced convection
Function
--Temp. Range	RT+10-300°C
--Temp. Resolution Ratio	0.1°C
--Temp. Motion	±1°C
--Temp. Uniformity	±2.5%
Structure
--Inner Chamber	SUS304
--Outer Shell	SUS304
--Insulation Layer	High quality rockwool board(with CE)
--Heater	Stainless steel heater
--Power Rating	3.0kW
--Exhaust Hole	Rear exhaust
Controller
--Temp. Control Mode	Two temperature section PID intelligent
--Temp. Setting Mode	Touch button setting
--Temp. Display Mode	Measuring temperature display on upper LCD screen, setting temperature display on the lower row
--Timer	0-9999min(with timing wait function)
--Operation Function	Fixed temperature operation, timing function, auto stop.
--Additional Function	Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory.
--Sensor	PT100
Safety Device	Digital Independent Temp. limiter, Over temperature sound-light alarm.
Specification
--Inner Chamber Size(W*L*H)(mm)	600*500*750
--Exterior Size(W*L*H)(mm)	735*885*1115
--Packing Size(W*L*H)(mm)	857*885*1287
--Volume	230L
--Max. Shelf Number	17
--Load Per rack	15kg
--Shelf Space	35mm
--Power Rating (50/60Hz)	AC220V/13.6A
--NW/GW (kg)	94/120
Accessory
--Shelf	2
--Shelf Frame	4
Optional accessories	Spare shelf, RS485 interface, printer, Program controller, U-disk storage; 3.5 inch color touch screen temperature controller.

Features

1. Horizontal air circularly by double Air ducts, high efficiency and high uniformity.
2. New anti-hot handle.
3. LCD temperature controller.
4. 4 grades speed fan (230 type without fan speed control function), adjustable for different requirements.
5. Over-temperature protection system.
6. High precision digital independent temperature limiter.
