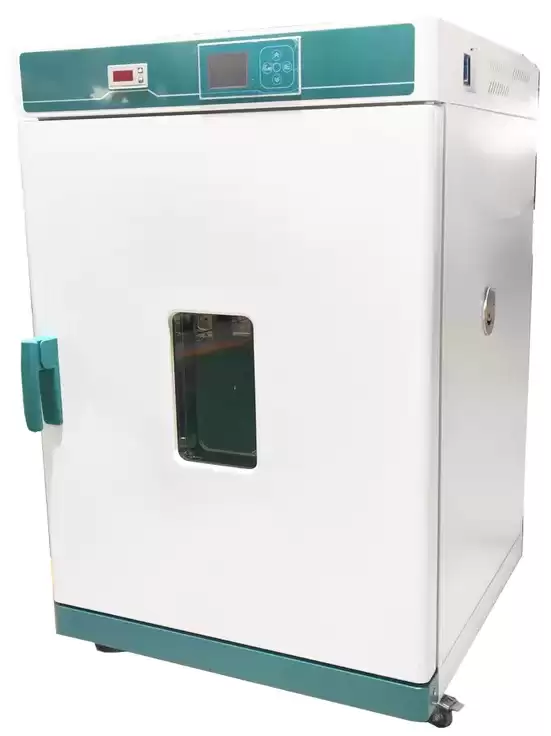

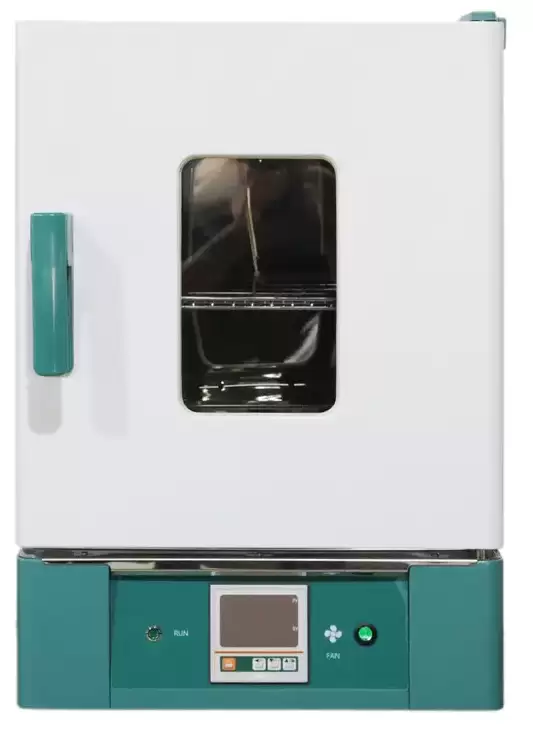

Forced Convection Oven BER1B7

Forced Air Drying Oven

• Sea, Air, Door to Door Shipping
• 1 Year Warranty
• US & European Standards

Specifications

Model	BER1B7
Cycle Mode	Forced convection
Function
--Temp. Range	RT+10-300°C
--Temp. Resolution Ratio	0.1°C
--Temp. Motion	±1°C
--Temp. Uniformity	±2.5%
Structure
--Inner Chamber	Mirror Stainless Steel
--Quter Shell	Cold rolling steel electrostatic spraying exterior
--Insulation Layer	High quality rock wool board(with CE)
--Heater	Stainless steel heater
--Power Rating	4.0kW
--Exhaust Hole	Φ63mm top
Controller
--Temp. Control Mode	Two temperature section PID intelligent
--Temp. Setting Mode	Touch button setting
--Temp. Display Mode	Measuring temperature: display on the four digital tubes upper row, setting temperature: display on the lower row
--Timer	0-9999min(with timing wait function)
--Operation Function	Fixed temperature operation, timing function, auto stop.
--Additional Function	Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory
--Sensor	PT100
--Safety Device	Over temperature sound-light alarm;
Specification
--Inner Chamber size(W*L*H)(mm)	760*660*1250
--Exterior Size (W*L*H)(mm)	902*942*1739
--Packing Size (W*L*H)(mm)	1032*1009*1925
--Volume	625L
--Max. Shelf Number	11
--Load Per rack	15kg
--Shelf Space	100mm
--Power Rating (50/60HZ)	AC380V/6.0A
--NW/GW (kg)	150/190
Accessory
--Shelf	2
--Shelf Frame	4
Optional accessories	Spare shelf

Features

1. Horizontal air circularly by double air ducts, high efficiency and high uniformity.
2. PID controller, with over-temperature protection function.
3. With fan switch,LED digital display,high temperature blast motor.
4. New anti-hot handle.

Applications

Used for drying, baking, wax, heat treatment.
