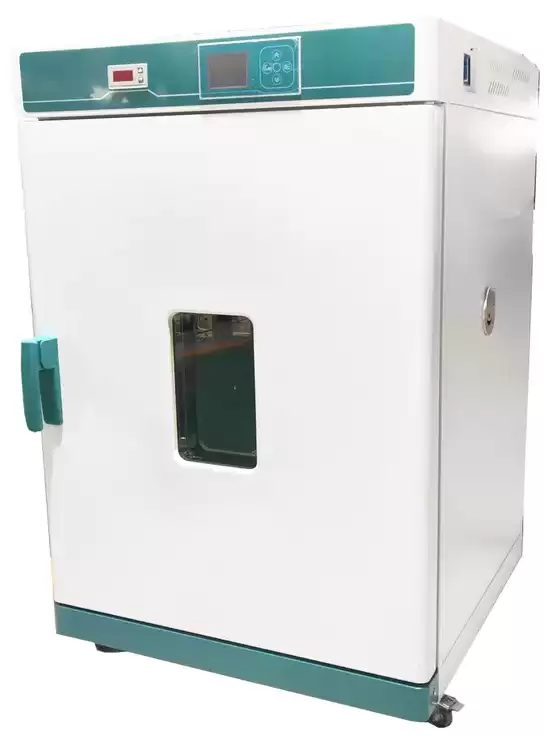

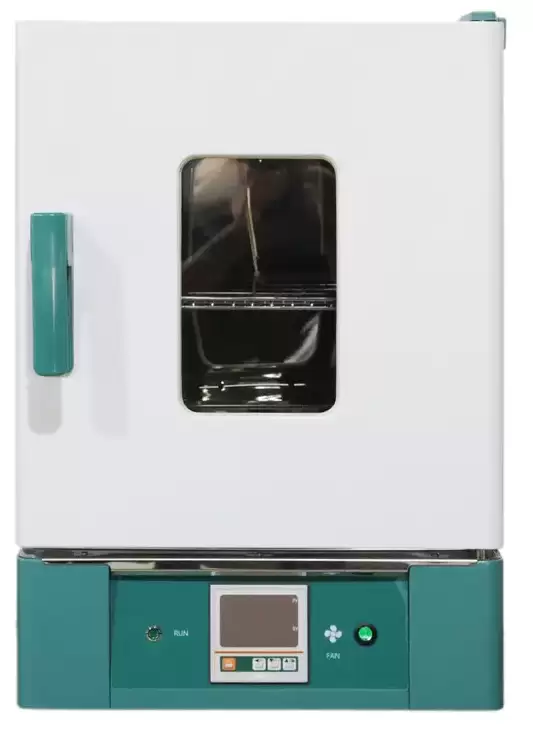

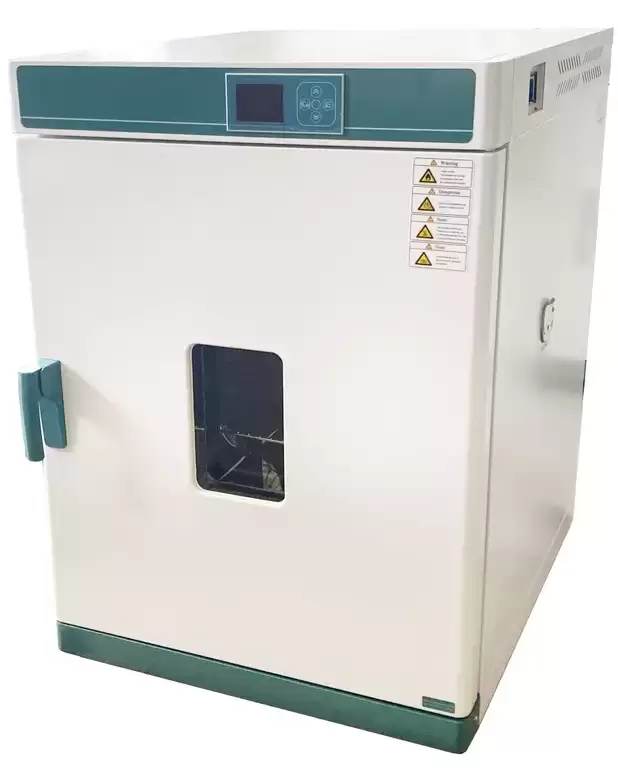

Forced Convection Oven BER1B20

Forced Air Drying Oven

• Sea, Air, Door to Door Shipping
• 1 Year Warranty
• US & European Standards

Specifications

Model	BER1B20
Cycle Mode	Forced convection
Function
--Temp. Range	RT+10-300°C
--Temp. Resolution Ratio	0.1°C
--Temp. Motion	±1°C
--Temp. Uniformity	±2.5%
Structure
--Inner Chamber	Mirror Stainless Steel
--Quter Shell	Cold rolling steel electrostatic spraying exterior / 304:SUS304
--Insulation Layer	High quality rock wool board(with CE)
--Heater	Stainless steel heater
--Power Rating	3.0kW
--Exhaust Hole	Rear exhaust
Controller
--Temp. Control Mode	Two temperature section PID intelligent
--Temp. Setting Mode	Touch button setting
--Temp. Display Mode	Measuring temperature display on upper LCD screen, setting temperature display on the lower row
--Timer	0-9999min(with timing wait function)
--Operation Function	Operation Function Fixed temperature operation, timing function, auto stop.
--Additional Function	High precision digital independent temperature limiter. Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory
--Sensor	PT100
--Safety Device	Digital Independent Temp. limiter, Over temperature sound-light alarm.
Specification
--Inner Chamber size(W*L*H)(mm)	600*500*750
--Exterior Size (W*L*H)(mm)	735*835*1115
--Packing Size (W*L*H)(mm)	857*885*1287
--Volume	230L
--Max. Shelf Number	17
--Load Per rack	15kg
--Shelf Space	35mm
--Power Rating (50/60HZ)	AC220V/13.6A
--NW/GW (kg)	94/120
Accessory
--Shelf	2
--Shelf Frame	4
Optional accessories	Spare shelf, RS485 interface, printer, Program controller, U-disk storage;3.5-inch color touch screen temperature controller

Features

1. Horizontal air circularly by double air ducts, high efficiency and high uniformity.
2. PID controller, with over-temperature protection function.
3. With fan switch,LED digital display,high temperature blast motor.
4. New anti-hot handle.

Applications

Used for drying, baking, wax, heat treatment.
