Drying Oven BER1DB1

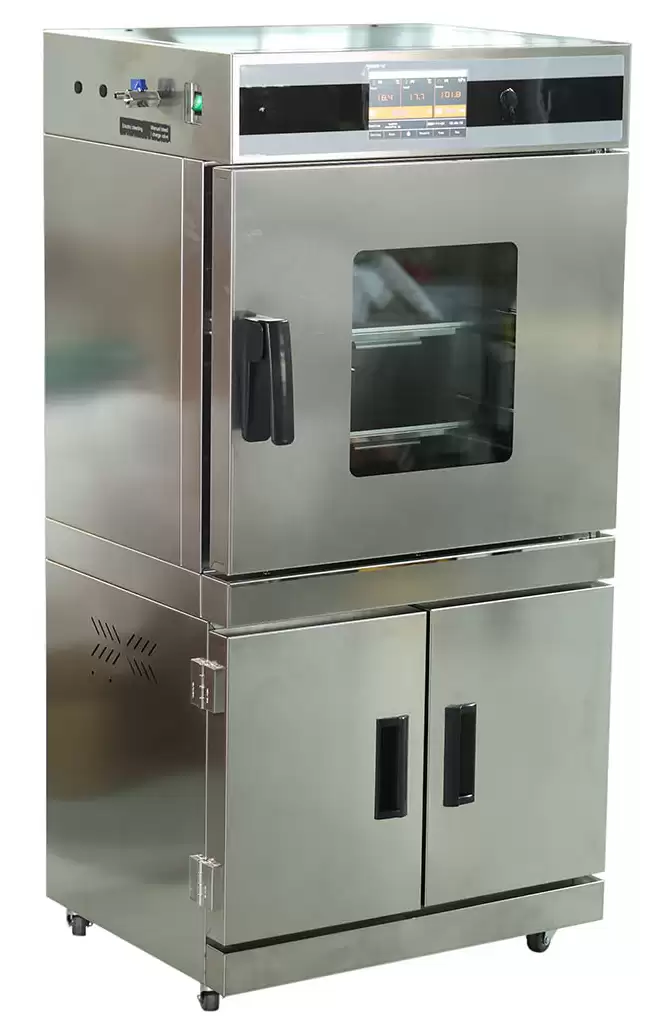

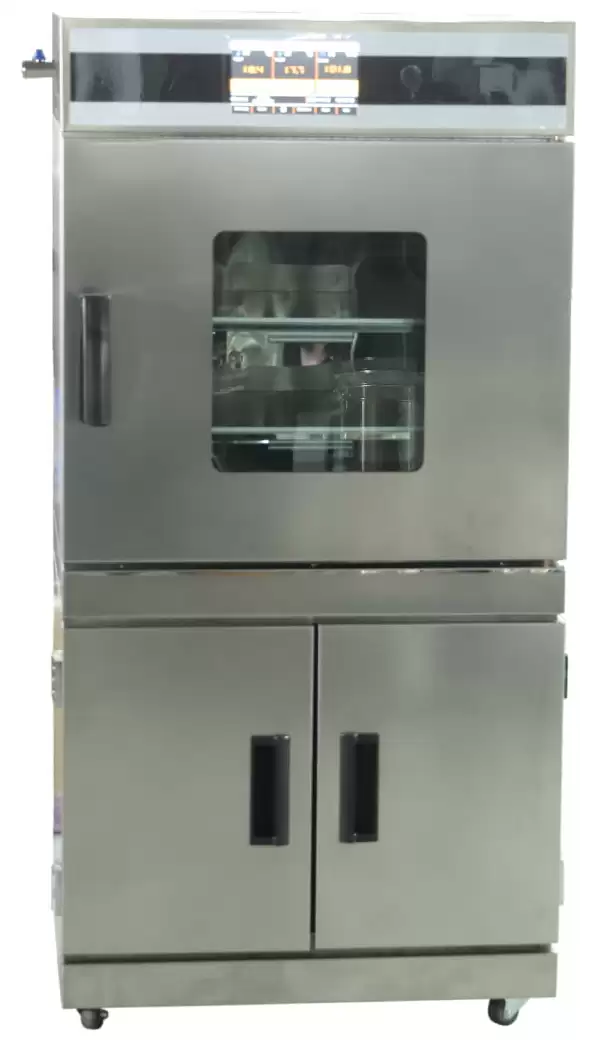

Automatic Precision Vacuum Drying Oven (pluggable Shelf Heating)
  • Sea, Air, Door to Door Shipping
  • 1 Year Warranty
  • US & European Standards



Drying Oven Shelf direct heating RT+10~250°C Drying Oven Shelf direct heating RT+10~250°C

Specifications

ModelBER1DB1
Heating ModeShelf direct heating
Function
--Temp. RangeRT+10~250°C
--Useful Vacuum Degree Range<133Pa
--Temp. Resolution Ratio0.1°C
--Temp. motion±1°C
--Heating-Up Time≤ 40 minutes
Composition
--Inner ChamberSUS304 mirror stainless steel
--Outer ShellSUS304 deembossed stainless steel, 5083 Corrosion resistant aluminum plate
--Insulation LayerAluminium silicate fiber
--HeaterMica electrothermal film
--Observation WindowBulletproof tempered glass
--Vacuum SensorStandard pressure sensor, absolute pressure accuracy class 0.25, vacuum touch screen display
--Exhaust deviceManual and electric double exhaust device
--Air intake portStandard inflation port
"-BLT Vacuum Pump System (BL: without Vacuum Pump)"Double stage rotary vane vacuum pump 2L/S
--Nozzle Diameter10mm
--Power Rating1.2kW / H type: 1.6kW
Controller
--Temperature Control Mode7.0-inch LCD color touch screen multi-stage PID program temperature control
--Temperature Setting ModeTouch Screen Type
--Temperature Display Mode7.0-inch LCD color touch screen
--Timer0-9999 minutes / 0-999 hours can adjust
--Operation FunctionFixed value operation, regular, automatic stop
--Fixed Value ModeControl temperature and vacuum at the same time
--Program ModeControl temperature and vacuum at the same time, 30 programmable operation
--Additional FunctionReal-time temperature curve recording with U disk data storage and export function
--Temperature SensorPT100
Safety DeviceOver temperature alarm, sensor fault alarm, vacuum over value alarm
Specification
--Inner (W*L*H) mm415*370*340 / 635*565*796 (H type: 635*565*1296)
--Exterior (W*L*H) mm580*610*930
--Packing (W*L*H) mm804*705*957 / H type: 804*705*1457
--Volume52L
--Number Of Shelf2
--Load Per Rack15kg
--Shelf Space140mm
--Current Rating (50/60Hz)AC220V/6.3A
--NW/GW kg67/92 / H type: 87/112
Accessory
--Shelf2
--Shelf Frame4
Optional AccessoriesShelf (Independent temperature control), RS485 transfer to USB communication interface, Printer, WIFI control module

Description

It is designed for drying heat-sensitive, easily decomposed and easily oxidized substances. It is widely used in medicine, food, light industry, chemical industry, agricultural scientific research, environmental protection and other experimental fields.

Features

1. SUS304 embossed stainless steel housing, SUS304 mirrored stainless steel studio, 5083 corrosion resistant aluminum plate.
2. Independent pluggable shelf heating.
3. Fixed value or program operation mode, true color 7.0-inch touch screen multi-section PID temperature controller, high temperature control accuracy, real-time temperature curve record, convenient for users to see the heating process. The program mode can realize temperature control and vacuum degree multi-stage programming operation to improve the experimental efficiency.
4. Automatic vacuum degree control system, set the vacuum degree, automatically reach the set vacuum degree. Standard with inflatable port, manual and electric double set of exhaust device.
5. Users can configure the vacuum pump, standard with the vacuum pump oil return device, convenient for customers to use, avoid the vacuum pump oil return.
6. H type standard with vacuum pump, air pipeline equipped with air filter device, improve the service life of vacuum pump.
