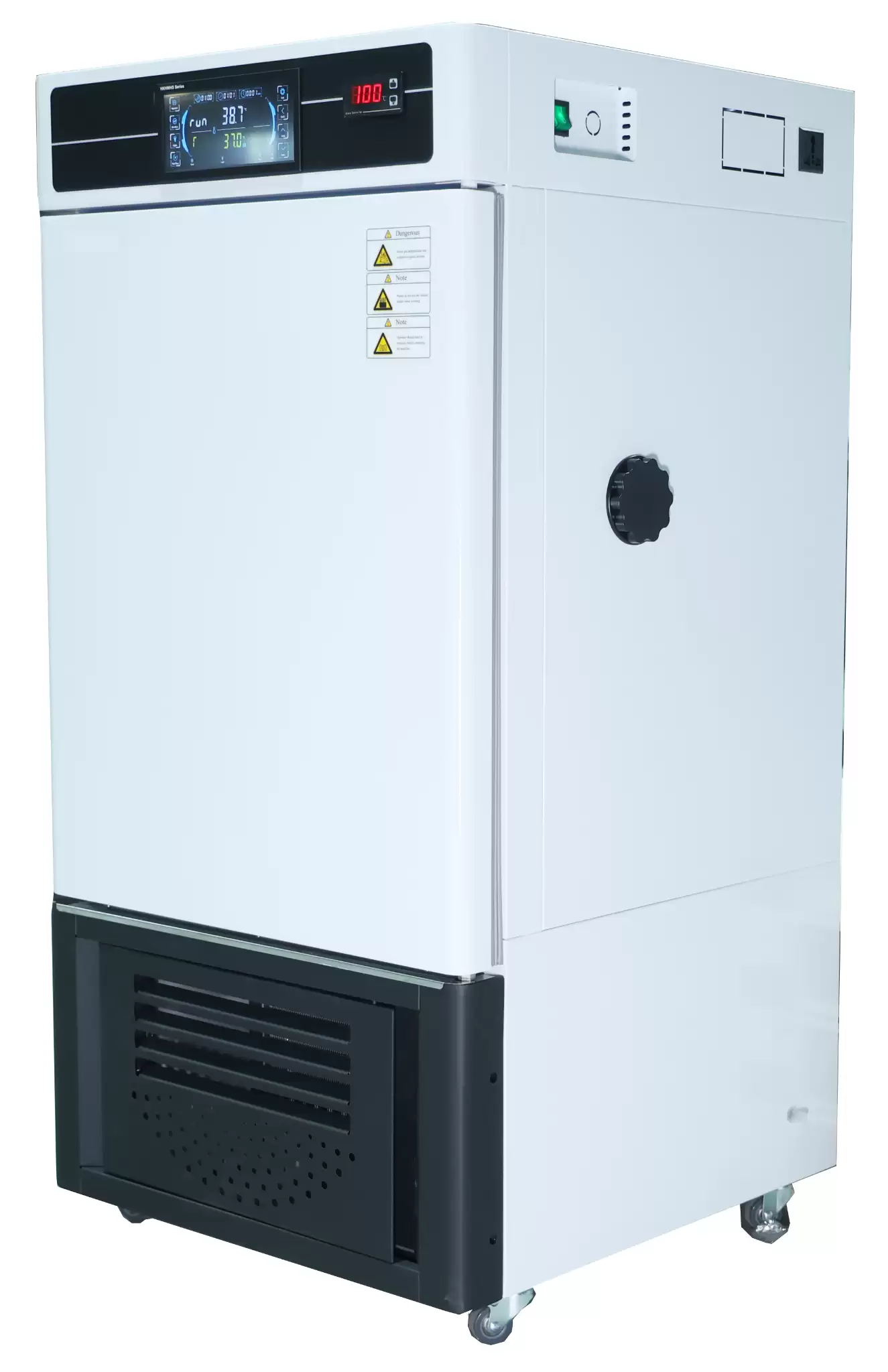

Cooled Incubator BER1CZ1

Compressor-cooled Incubators, Compressor-cooled Incubators (inverter Compressor)

• Sea, Air, Door to Door Shipping
• 1 Year Warranty
• US & European Standards

Specifications

Model	BER1CZ1
Pattern	Forced Convection
Function
--Temp Range	0~65°C
--Temp Resolution Ratio	0.1°C
--Temp Fluctuation	±0.5°C
--Temp Uniformity	±1°C
Construction
--Inner Chamber	Mirror stainless steel plate
--Outer Shell	Cold-rolled steel plate, surface electrostatic spraying
--Insulation Layer	Polyurethane
--Heater	Stainless steel electric tube
--Power Rating	0.8kW
--Compressor	Variable frequency air-cooled hermetic compressor
--Cryogen	R134a
--Defrost structure	Smart defrost
--Test Hole	Inner diameter 43mm
--Controlled External Power Supply	One external universal socket and one built-in waterproof socket
Controller
--Temp Control Mode	Intelligent fuzzy PID
--Temp Setting Mode	Touch Type Key Setting
--Temp Display Mode	The LCD screen displays the parameters
--Timer	The period ranges from 0 to 99, and a maximum of 30 programs can be set. The setting range for each period of time is 0 to 9999 hours/minute
--Operation Function	Single segment run, program run
--Sensor	Pt100
--Additional Function	LED lighting, deviation correction, menu key lock, power failure parameter memory
Safety Device	Over temperature alarm, electronic temperature limiter, loop self-diagnosis
Specification
--Inner chamber Size(W*L*H mm)	420*350*500
--Exterior Size(W*L*H mm)	580*610*1190
--Packing Size(W*L*H mm)	698*706*1358
--Volume	70L
--Load Per Rack	15kg
--Shelf Number	9
--Shelf Space	35mm
--Supply (50/60Hz) Current Rating	AC220V/2.3A
--NW/GW (kg)	69/92
Accessory
--Shelf	4
--Shelf Frame	2
Optional Accessories	Separator, RS485 interface, printer, WIFI module can realize remote mobile APP control

Features

1. Unique internal wind circulation structure design, fan breeze circulation, so that the temperature distribution in the working room is uniform.
2. Double-layer door structure, the inner door adopts high-quality tempered glass to facilitate the observation of samples, the outer door adopts magnetic rubber strip, easy to open and close, good sealing.
3. Large-size LCD touch screen, 30-segment program, each period of time setting range: 0 ~ 9999 hours/minute, with scheduled start and stop function, standard electronic independent temperature limiter. Double protection experiment safety.
4. The use of frequency conversion refrigeration system temperature control stability, to ensure long-term frost-free operation, more energy saving advantages.
5. Standard LED lighting, UV germicidal lamp, with sterilization timing function, standard built-in universal socket, convenient internal equipment power supply.

Applications

A variety of constant temperature experiments and environmental tests, water
analysis, BOD/ bacteria and mold microbial culture, plant breeding and cultivation,
sample preservation.
