Class II Biosafety Cabinet BGI1CD3

Biological Safety Cabinet
  • Sea, Air, Door to Door Shipping
  • 1 Year Warranty
  • US & European Standards



Class II Biosafety Cabinet 1520x580x655 1640x810x2100

Specifications

ModelBGI1CD3
Internal Dimensions (WxDxH) mm1520x580x655
External Dimensions (WxDxH) mm1640x810x2100
Downflow Velocity0.33m/s
Inflow Velocity0.53m/s
Working Access Opening Height200mm
Opening MAX.500mm
HEPA Filter Typical Efficiency99.995% @ 0.3μm
Noise<65dB
Fluorescent Lamp Intensity>900Lux
UV Lamp40W
Voltage220V/50Hz
Power Consumption1500VA
Net Weight305kg
Shipping Weight395kg
Shipping Dimensions (WxDxH) mm1810x935x1810

Features

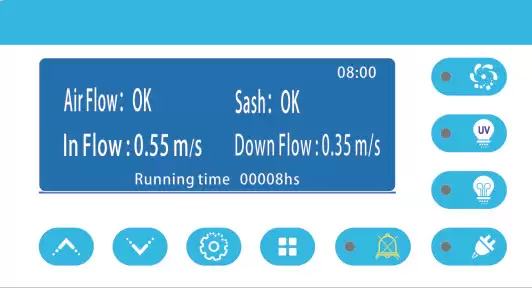

Microprocessor Controller
• Large LCD display, the right place and angled down for easy reach & viewing.
• Real-time monitoring, display all safety information on one screen.
• Real-time monitoring of hepa filter status. Display sound and light alarm about failure, pre-failure, damaged.
Microprocessor Controller • Large LCD display, the right place and angled down for easy reach & viewing. • Real-time

EC Fan
• High efficiency and energy saving with 30%-60% energy savings compared to AC motor.
• The automatic resistance compensation function can provide safe air velocity even when the filter resistance increases by 300%.
EC Fan • High efficiency and energy saving with 30%-60% energy savings compared to AC motor. • The automatic resistance

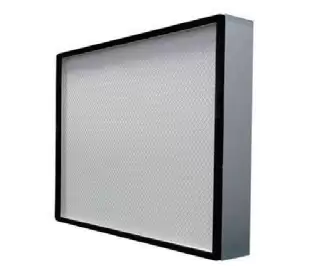

HEPA Filter
• Filtration efficency>99.99%@0.3μm.
• Cleanliness ISO class 5.
• UPLA filter is optional.
HEPA Filter • Filtration efficency>99.99%@0.3μm. • Cleanliness ISO class 5. • UPLA filter is optional. Class II Biosafety

Internal Working Area
• Three sides of the inner wall shape a large arc design, easy to clean.
• A special negative pressure design prevents contaminants from escaping up the side wall into the operator's environment.
• Paper collectors prevent the high maintenance costs associated with paper waste inhalation.
• Easy to remove working surface and support, easy to clean drain tray.
Internal Working Area • Three sides of the inner wall shape a large arc design, easy to clean. • A special negative pressure

Ergonomic Design
• 5°backward-slanted safety grade glass provides more comfortable viewing.
• Raised arm rest help prevent grille blockig.
• Sash is designed for easy operation with single hand.
• Backlight lighting design reduces operator visual fatigue.
Ergonomic Design • 5°backward-slanted safety grade glass provides more comfortable viewing. • Raised arm rest help prevent

Applications

Three protection:operator, sample and environment.
Airflow system:70% air recirculation, 30% air exhaust.
A2 cabinet is suitable for working with microbiological research in the absence of volatile or toxic chemicals and radionuclide.
