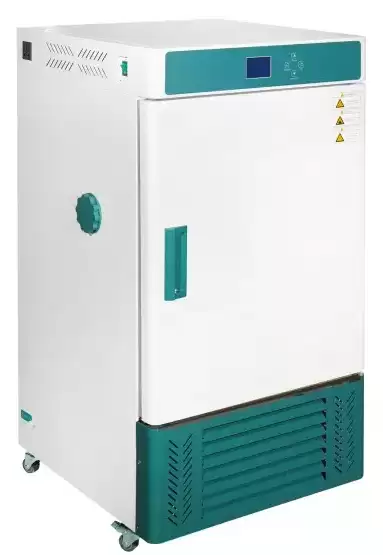

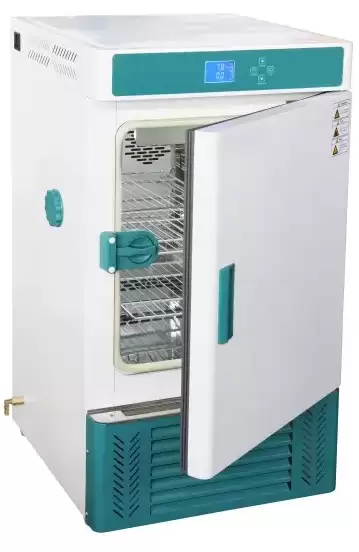

BOD Incubator BER1V6

Cooling Incubator/refrigerated Incubator/ Bod Incubator

• Sea, Air, Door to Door Shipping
• 1 Year Warranty
• US & European Standards

Specifications

Model	BER1V6
Cycle Mode	Forced Convection
Function
--Temp. Range	0-65°C
--Temp. Resolution Ratio	0.1°C
--Temp. Motion	High Temp: ±0.5°C, Low Temp: ±1°C
--Temp. Uniformity	±1.5°C
Structure
--Inner Chamber	Mirror Stainless Steel
--Outer Shell	Cold rolling steel electrostatic spraying exterior
--Insulation Layer	Polyurethane
--Heater	Stainless steel heater
--Power Rating	1.2kW
--Compressor	Air cooled hermetic compressor
--Cryogen	R134a
--Defrost Structure	Automatic control intelligent defrosting
--Test Hole	Inner diameter 43mm (one)
--Controlled External Power Supply	Outer universal socket (one), inner waterproof socket (one)
--Temp. Control Mode	30-stage LCD program
--Temp. Setting Mode	Touch button setting
--Temp. Display Mode	Measuring temperature: LCD upper row; Setting temperature: LCD lower row
--Timer	0-99.9h*30 segment (with timing wait function)
--Operation Function	Program operation
--Sensor	PT100
--Additional Function	Loop self-diagnosis, sensor fault alarm
Safety Device	Over temperature alarm
Specification
--Inner Chamber Size (W*L*H)(mm)	500*515*950
--Exterior Size (W*L*H)(mm)	656*741*1501
--Packing Size (W*L*H)(mm)	761*830*1690
--Volume	250L
--Load Per Rack	15kg
--Shelf Number	12
--Shelf Space	60mm
--Power Supply Current Rating	AC220V/5.5A
--NW/GW (kg)	100/139
Accessory
--Shelf	2
--Shelf Frame	4
Optional Accessories	Shelf, RS485 port, printer, recorder, Remote Control, wireless messaging alarm, U-Disk data storage

Features

1. Unique internal wind circulation structure design, breeze circulate fan make inner chamber temperature uniformity.
2. Double door seal; tempered glass silicon rubber seal inner door and magnetic rubber seal outer door, which are convenient to on/off; inner chamber with light for convenient observation. .
3. Intelligent defrosting function ensure device long-time run without frost.
4. Fluoride-free refrigeration and gentle breeze circulation.
5. Test hole of Φ52mm at left side of container.


BX model additional characteristics:
1. LCD scree 30-stage program controller,round move,ladder operating.
2. Sensor failure alarm

Applications

Various constant temperature experiments and environmental tests at 0~65C, water analysis, microbe culture of BOD / bacteria, plant breeding, and sample preservation.
