Biological Safety Cabinet Class II BCBS-801
- Sea, Air, Door to Door Shipping
- 1 Year Warranty
- US & European Standards

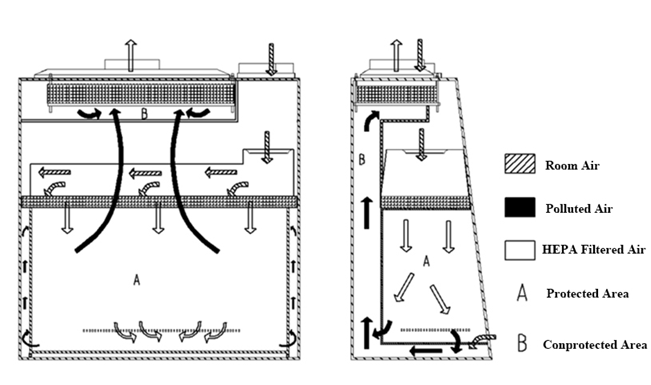

Biolab Biological Safety Cabinet Class II Series is engineered specifically for laboratory operations that require user and product protection. Operates with a negative air pressure for personnel protection and HEPA filtered laminar airflow for product protection. Suitable for microbiological and research applications that do not involve radioactive substances and toxic contaminants.

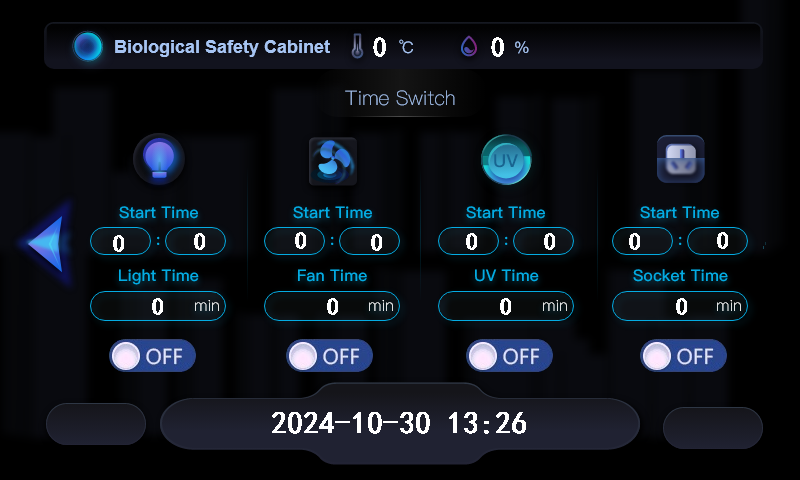

- Time reserve function
- Motorized front window
- HEPA filter life and UV life indicator
- Automatic air speed adjustable with filter block
Specification
Features
Applications
| Type | Class II, Type B2 |
| Inflow Velocity | 0.53±0.025 m/s |
| Down Flow Velocity | 0.33±0.025 m/s |
| Filter | ULPA Filter - Two, 99.9995% efficiency at 0.12 μm,filter life indicator. |
| Max Opening | 420mm (17") |
| Tested Opening | Safety Height 200 mm (8") |
| Work Surface Height | 750 mm |
| Work Zone Material | 304 stainless steel |
| Main Body Material | Cold-rolled steel with anti-bacteria powder coating |
| Airflow System | 0% air recirculation, 100% air exhaust |

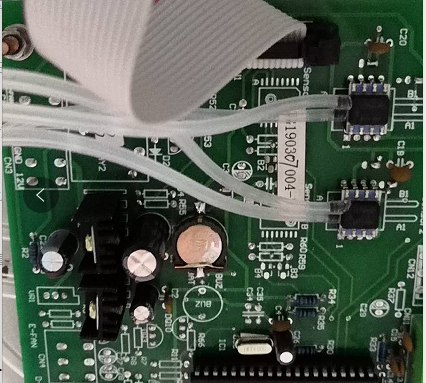

| Control System | Microprocessor |

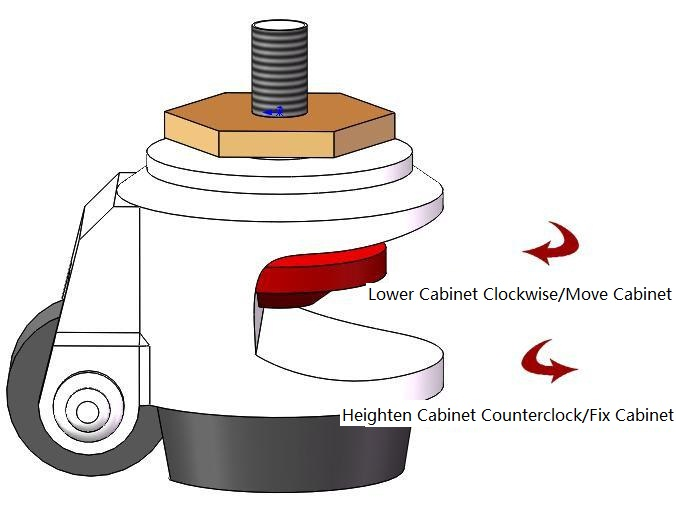

| Caster | Foot master caster |

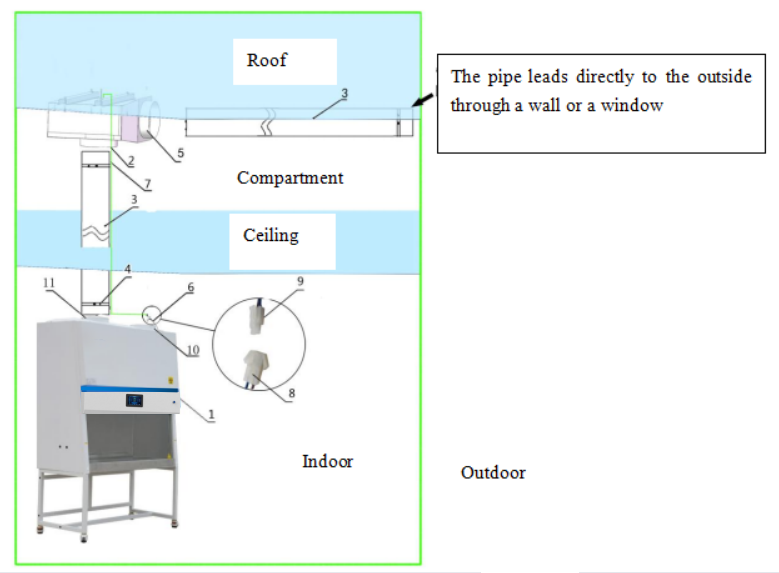

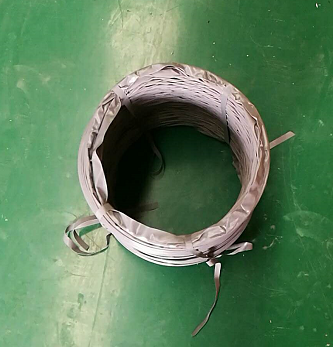

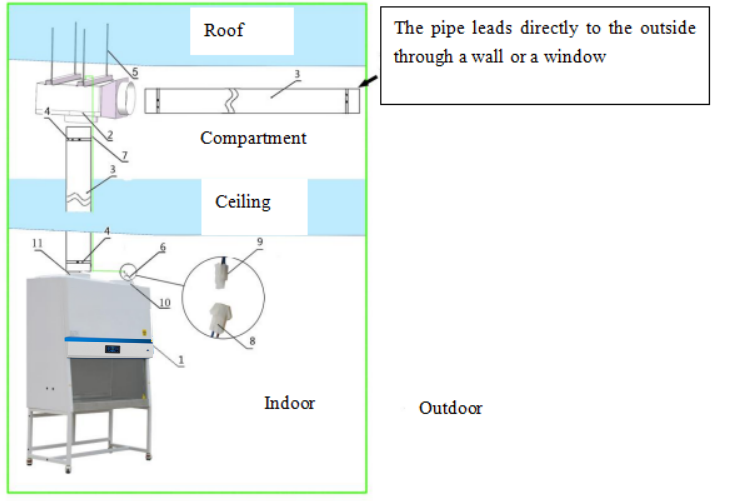

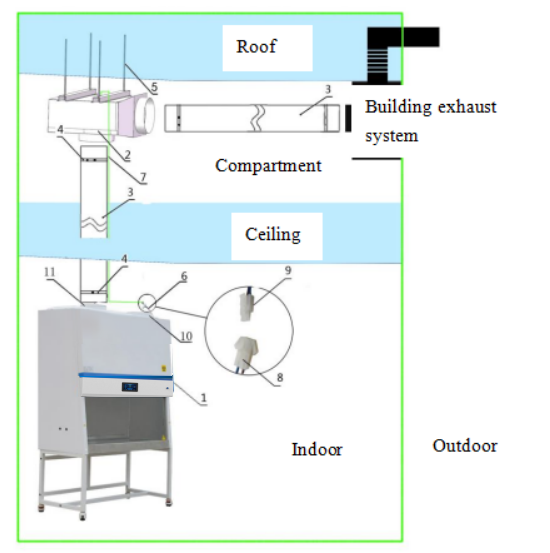

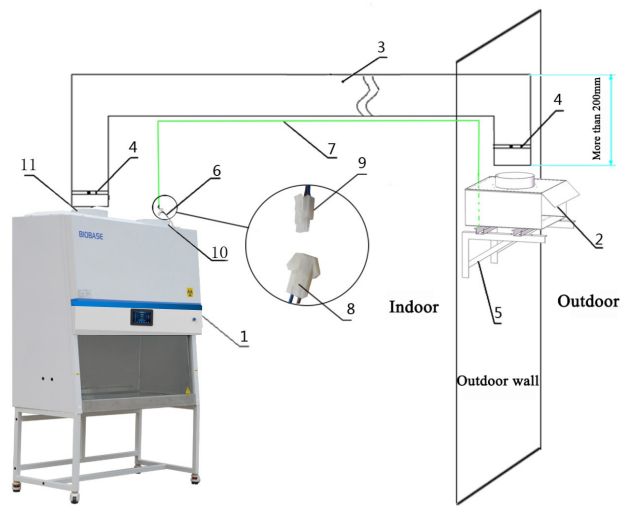

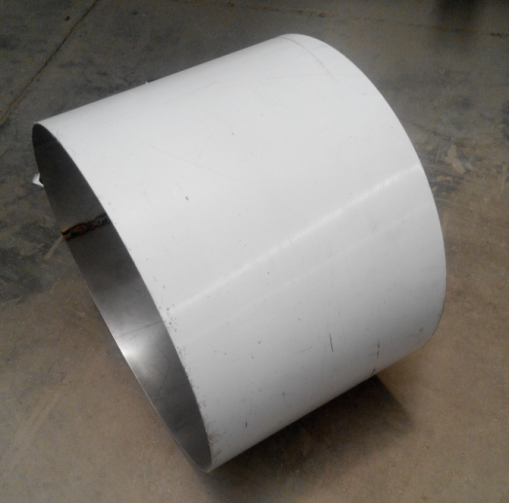

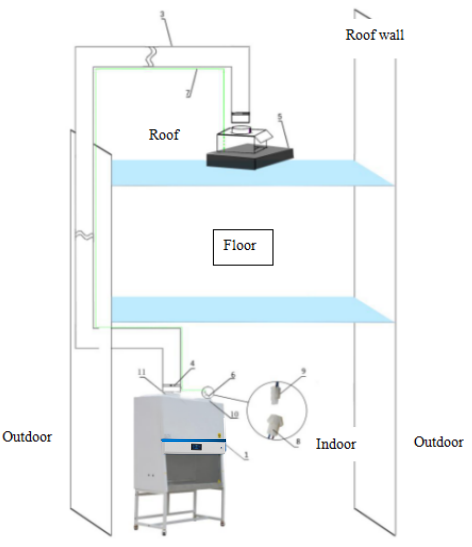

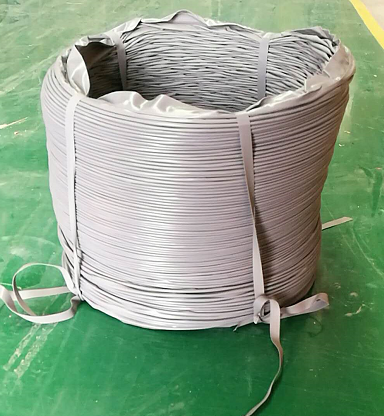

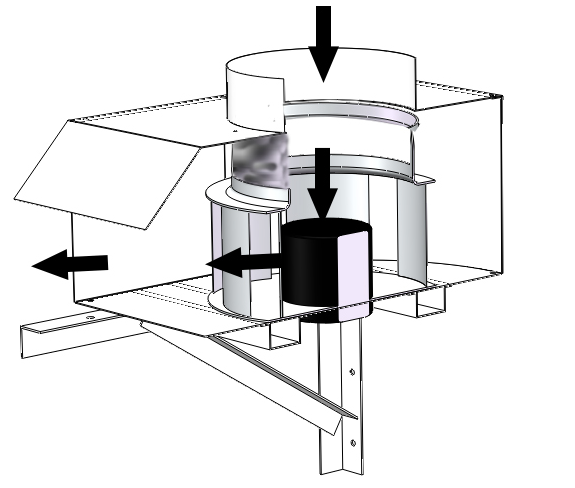

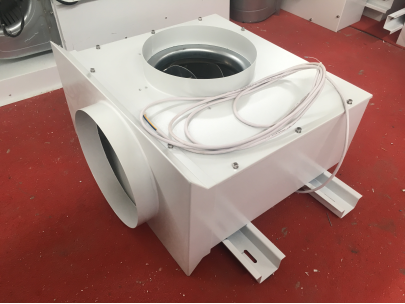

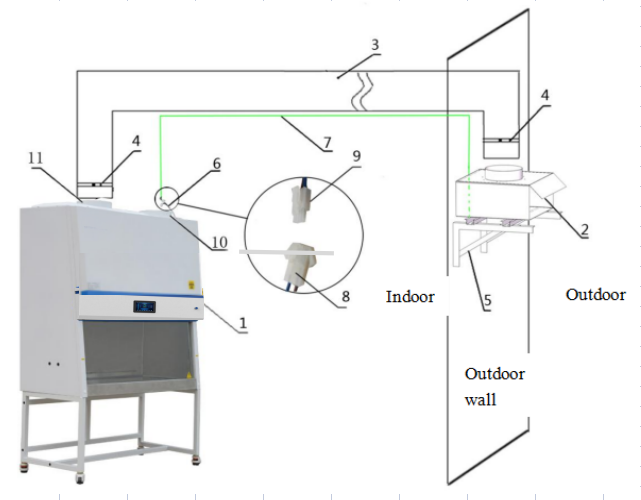

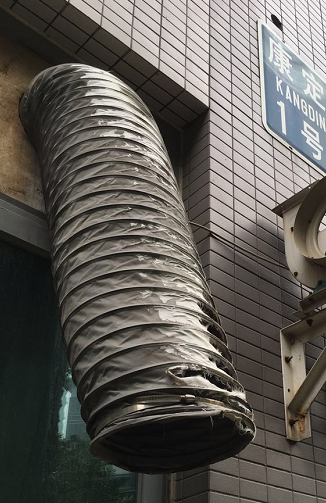

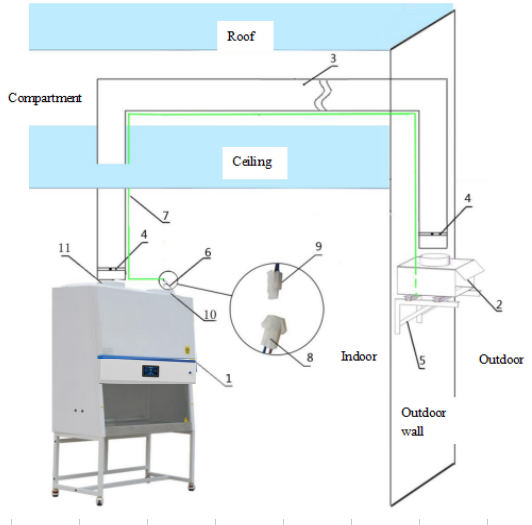

| Exhaust | Exhaust Duct: 4 meters PVC duct, Diameter:300mm |
| Front Window | Motorized,two-layer laminated toughened glass ≥ 6mm,anti UV |
| Waterproof Socket | Two, total load of two sockets: 500 W |

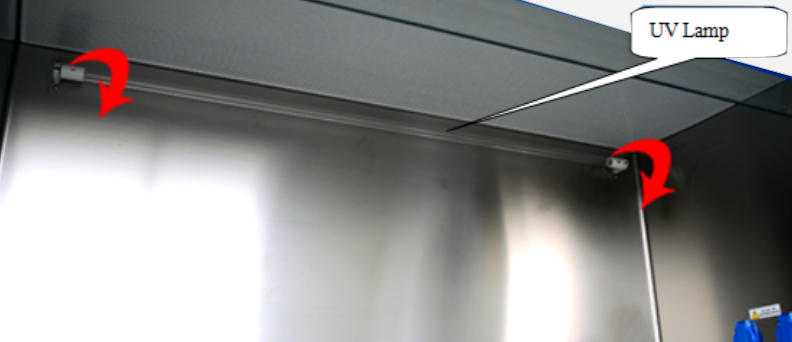

| UV Lamp | 30W x1 UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination. |

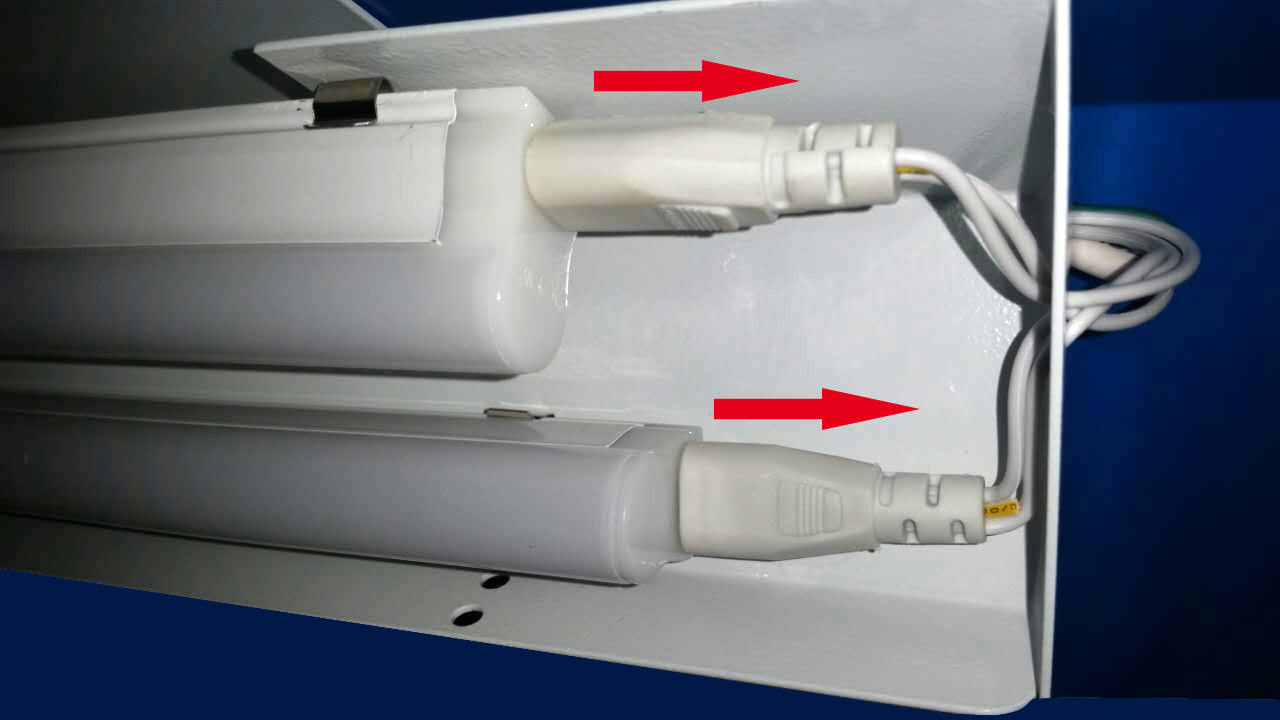

| LED Lamp | LED Lamp,12W x2 |
| Illumination | ≥1000 Lux |
| Visual and Audio Alarm | Abnormal airflow velocity; Filter replacement; Front window at unsafe height. |

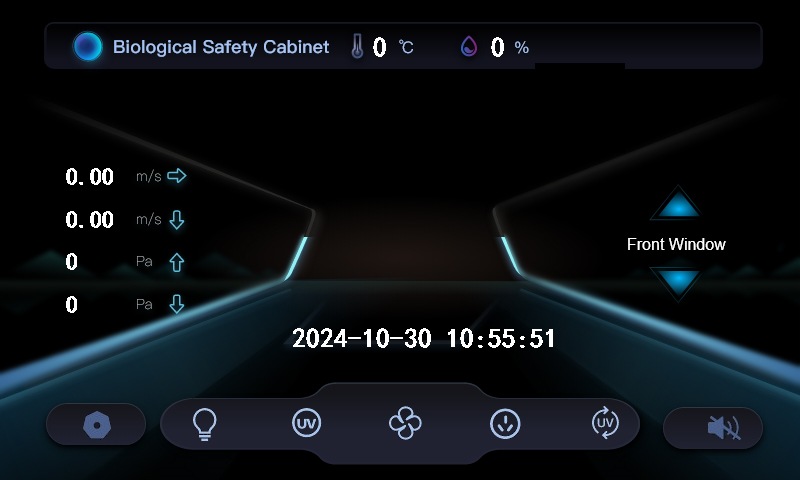

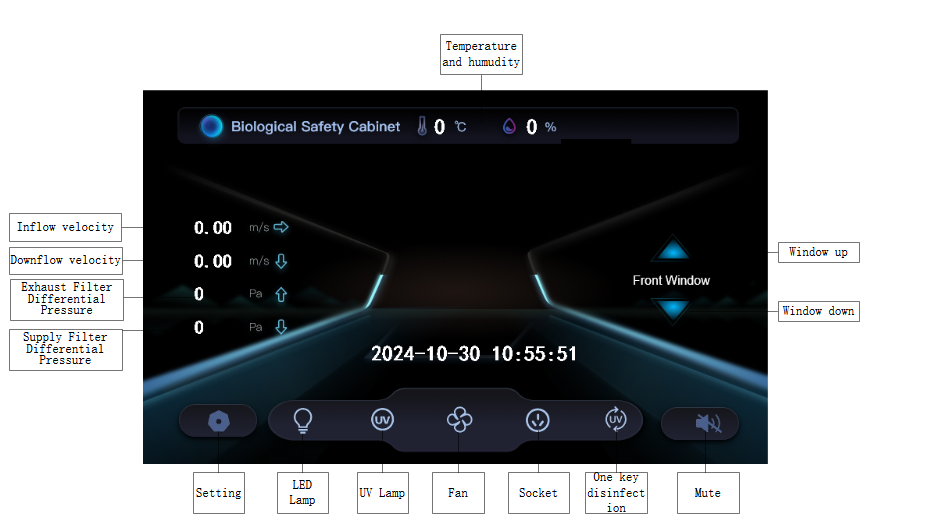

| Display | 7 inch touch screen display: exhaust filter and downflow filter pressure, filter and UV lamp working time,inflow and downflow velocity, filter life, humidity and temperature, system working time etc. |
| Noise | ≤ 67 dB |

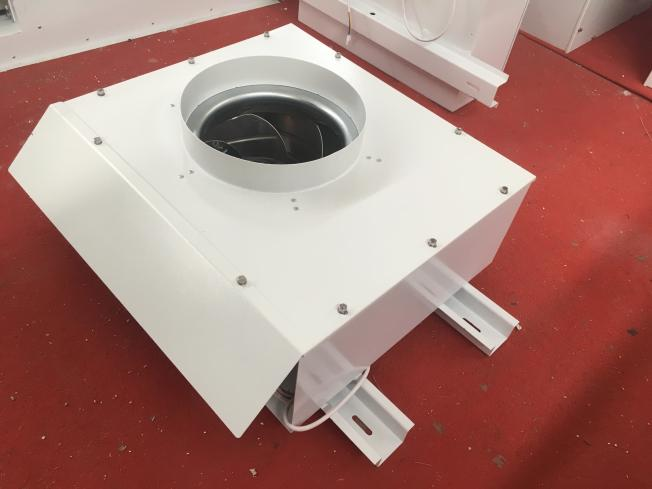

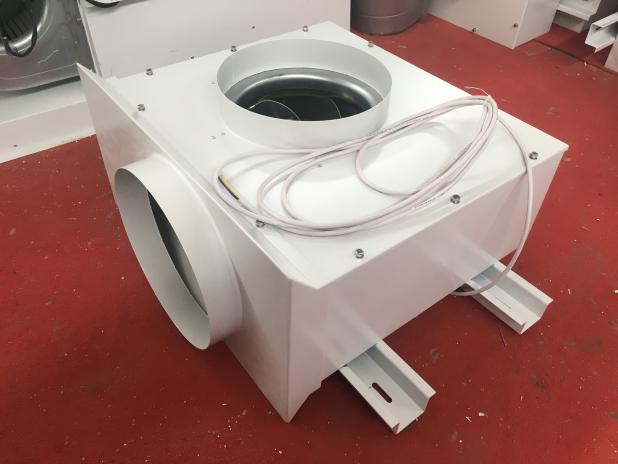

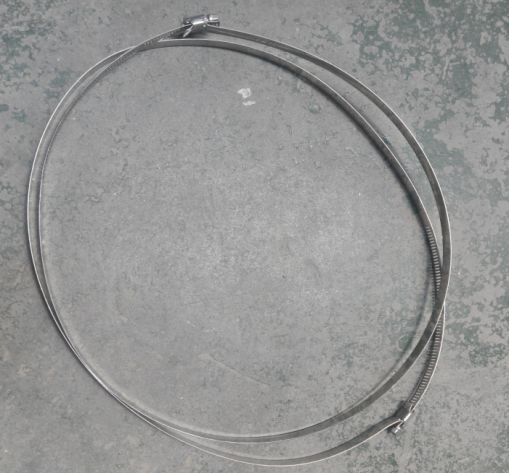

| Standard Accessory | Illuminating lamp, UV lamp x2,base stand, remote control, foot switch, exhaust blower, exhaust duct, drain valve, waterproof sockets x2, pipe strap x2 |

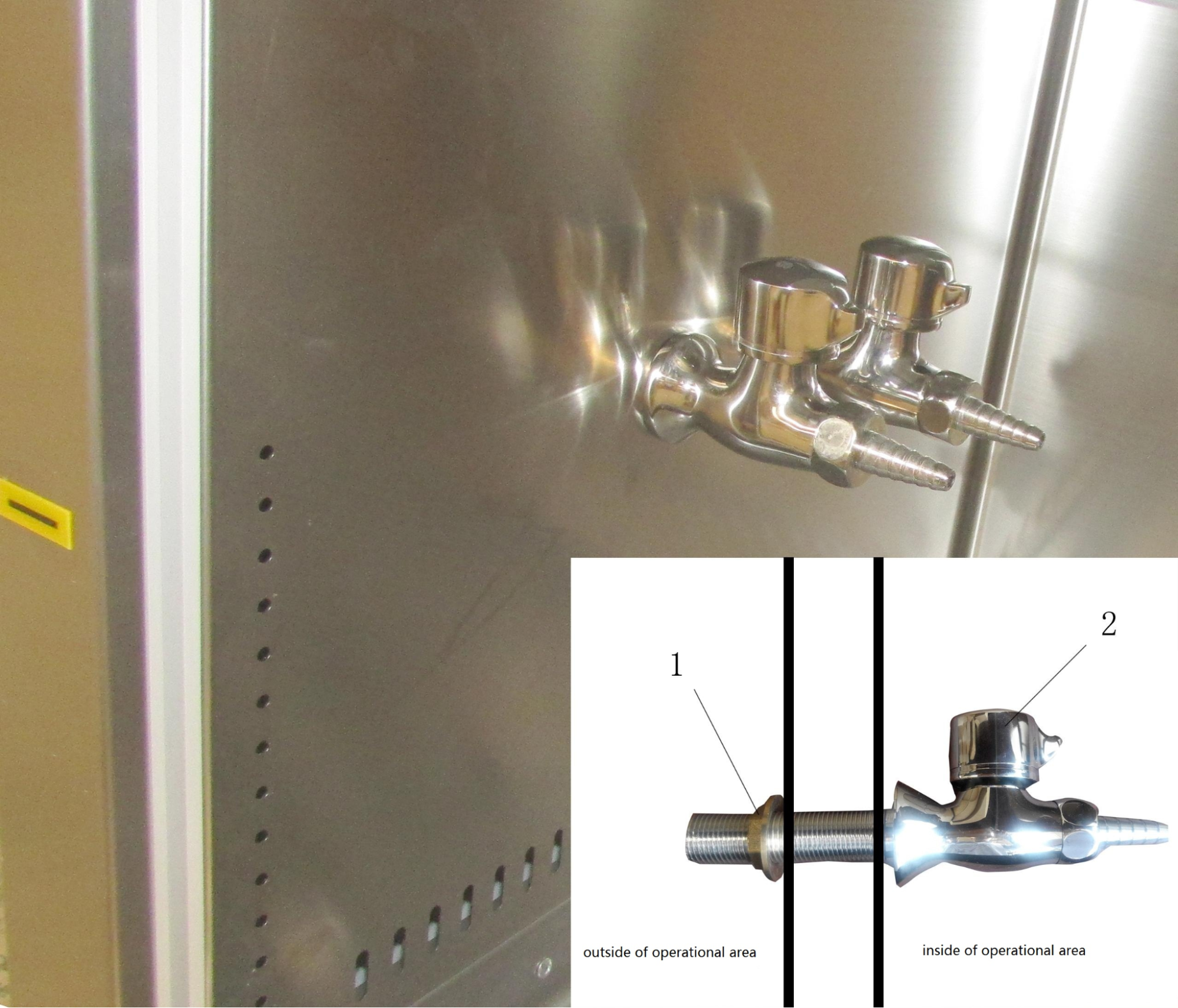

| Optional Accessory | Water and gas tap, Electric height adjustable base stand |
| External Size (WxDxH) | 1100x750x2255 mm |
| Internal Size (WxDxH) | 940x600x660 mm |
| Package Size (WxDxH) | 1250x990x1770 mm Main Body 930x800x690 mm Exhaust Blower (WxDxH) |
| Gross Weight | 265kg;50kg |
| Consumption | 800 W |
| Power Supply | AC 220V±10%, 50/60Hz; 110V±10%, 60Hz |
- Time reserve function
- Motorized front window
- HEPA filter life and UV life indicator
- Automatic air speed adjustable with filter block
- With memory function in case of power-failure
- Work area surrounded by negative pressure, it can ensure maximum safety in work area
- Most accessories are standard, which saves your money. There is no need to pay more
- Audio and visual alarm (filter replacement, window over height, abnormal air flow velocity, etc)

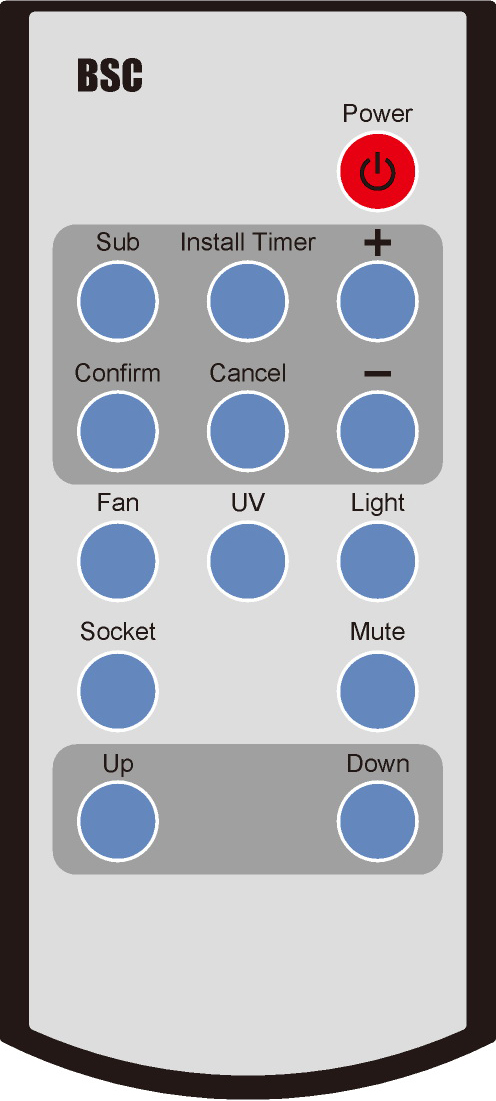

- Remote control. All functions can be realized with it, making the operation much easier and more convenient
- Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; blower and front window

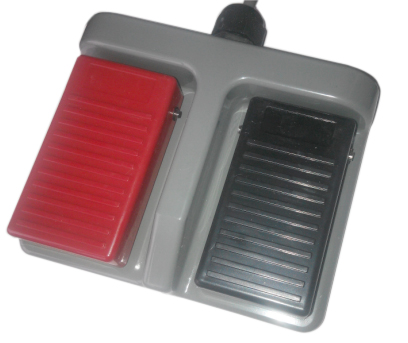

- Foot switch. Adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm movement
Cell culturing, Genetics, Microbiological, Research, Cell Biology, Molecular Biology, Plant, Laboratory
