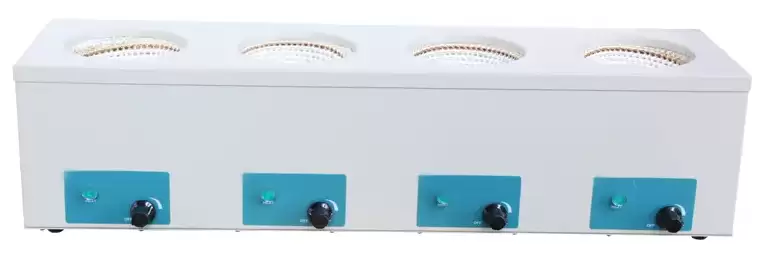

Heating Mantle BER1BW17
Several Rows Magnetic Stirring, Heating Mantles- Sea, Air, Door to Door Shipping
- 1 Year Warranty
- US & European Standards
Specifications
| Model | BER1BW17 |
| Function | |
| Specification(ml) | 4x100 |
| Heating Mode | Surface heat conduction |
| Surface Max. Temperature | 450°C |
| Temp. Range | Rt+vfc20~250°C |
| Speed Range | 0-1400rpm |
| Structure | |
| Heating Element | Nickel chromium alloy wire |
| Stir Bar | PTFE |
| Outer Shell | Cold rolled steel plate, surface spraying |
| Motor Power | 0.01kW |
| Heating Power (kW) | 4x0.1 |
| Controller | |
| Work Model | Continuous |
| Specification | |
| Exterior Size (mm) | 530*140*160 |
| Packing Size (mm) | 570*180*190 |
| Voltage | 100-120V or 200-240V |
| N.W. (Kg) | 8 |
| G.W. (Kg) | 10 |
Features
1. 98-IV-B: Electronic temperature regulation heating mode.2. 98-V-B: Electronic temperature regulation heating mode. heating and stirring can proceed simultaneously; stepless speed adjustment.
3. 98-V-B model without 100ml
4. Up to 450°C general heating stirring equipment.
More Info
1. Accessories: Adjustable Sensor Rack with Stainless Steel Rods or Horizontal rods.2. We can produce different rows heating mantle as a customer's requirement.
