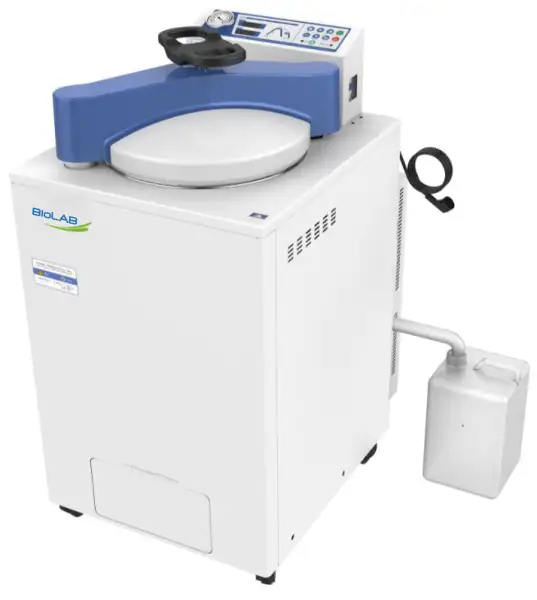

Vertical Autoclave BAVT-603-A
Vertical Autoclave
Key Features
- Operation board board(LED screen, with flow chart)
SKU: BAVT-603-A
Old SKU: BEO1G3
Pricing & Resources
- Up to 3-Year Product Warranty
- US & EU Compliance Standards
- Door-to-Door Shipping
Technical Specifications
Detailed operating and construction parameters for this model.
| Model | BAVT-603-A |
| Capacity | 80L |
| Sterilization Temperature | 105-135°C |
| Working Pressure | 2.9bar |
| Features | |
| Type | Smart type |
| Dimension (LxWxH, mm) | 620x680x1100 |
| Chamber (Dia x H) | 400x709 |
| Chamber material | SUS304 |
| Power requirement | 220V±10%, 32A, 50/60Hz |
| Working environment | 5-45°C, RH 10-85% |
| Rate power supply (W) | 4600 |
| Sterilization temp. | 105-135°C |
| Temp. display accuracy | 0.1°C |
| Sterilization time range | 1-999min |
| Melting temp. | 60-100°C |
| Melting time range | 1-999min |
| Warming temp. | 45-60°C |
| Warming time range | 1-999min |
| Storage | up to 60 programs |
| Sterilization mode | 1.Liquid 2.Liquid with warming 3.Solid 4.Instruments packed with cloth 5.Fabric 6.Rubber 7.Fast 8.Waste 9.Agar melting 10.Self defined |
| Exhaust temp. range | DWS: 73-127°C (Solid mode) |
| Exhaust mode | Automatic internal discharging with embedded steam collector |
| Timer range | 0-6 days (Sterilization auto start up appointment) |
| Pressure gauge range | -0.1-0.5Mpa |
| Pressure | Safety valve set pressure: 2.9bar |
| Controller | "Smart II" fast speed microcomputer controller |
| Safety device | Self-induction interlocking, lid closing checking, over temp protection, dry scorch protection, over pressure, safety valve, over current, short circuit, electric leakage, scald protection, auto failure inspection |
| Baskets (Dia x H) | (360x280)x2 |
Product Features
Key design, performance, usability, and safety advantages.

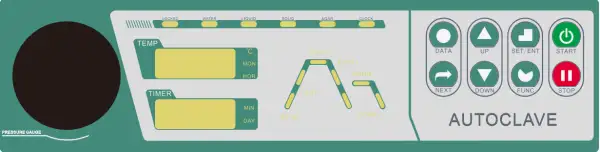

Operation board board(LED screen, with flow chart)
