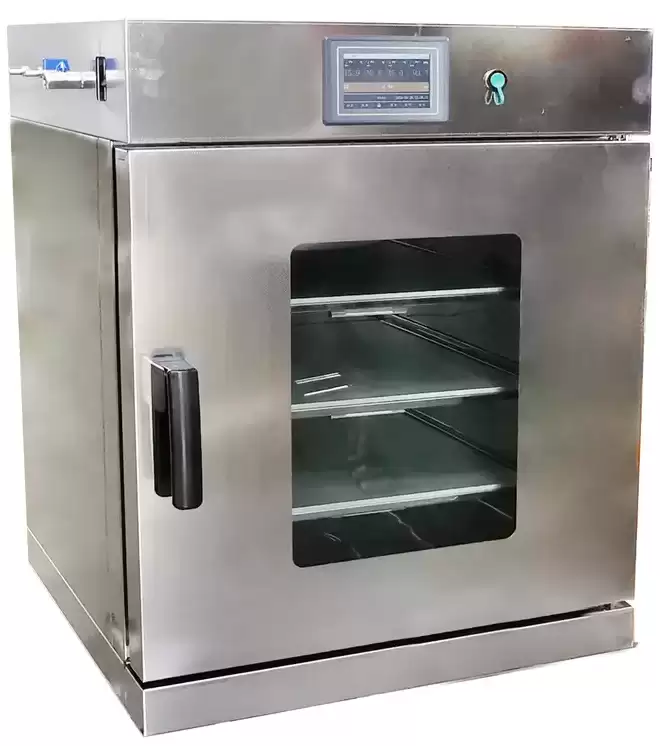

Vacuum Oven BER1K1
Automatic Precision Vacuum Drying Oven (pluggable Shelf Heating), Automatic Precision Vacuum Drying Oven- Sea, Air, Door to Door Shipping
- 1 Year Warranty
- US & European Standards
Specifications
| Model | BER1K1 |
| Heating Mode | Sheft direct heating |
| Function | |
| --Temp. Range | RT+10-250°C |
| -- Useful vacuum Degree range | <133Pa |
| --Temp. Resolution Ratio | 0.1°C |
| --Temp. Motion | ±1°C |
| --Heating -Up Time | ≤40 minutes |
| Structure | |
| --Inner Chamber | SUS304 mirror stainless steel |
| --Quter Shell | SUS304 embossed stainless steel, 5083 Corrosion resistant aluminium plate |
| --Insulation Layer | Aluminium silicate fibre |
| --Heater | Mica electrothermal film |
| --Observation Window | Bulletproof tempered glass |
| --Vacuum Sensor | Standard pressure sensor, absolute pressore accuracy class 0.25, vacuum touch screen display |
| Exhaust device | Manualand electric double exhaust device |
| Air intake port | Standard inflation port |
| "BLT Vacuum Pump System(BL:without Vacuum Pump)" | Double stage rotary vane vacuum pump 2L/SVacuum pump air inlet drying filterVacuum pump exhaust oil mist filter |
| -- Nozzle Diameter | 10mm |
| --Power rating | 1.2kW |
| Controller | |
| --Temp. Control Mode | 7.0~inch LCD color touch screen multi-stage PID program temperature control |
| --Temp. Setting Mode | Touch Screen Type |
| --Temp. Display Mode | 7.0-inch LCD color touch screen |
| --Timer | 0-39999 minutes/0-9999 hours can adjust |
| --Operation Function | Fixed value operation, regular, automatic stop |
| --Fixed Value Mode | Control temperature and vacuum at the same time |
| --Program mode | Control temperature and control vacuum at the same time, 30 programmable operation |
| --Additional Function | Vacuum pump oil return preventer. Real-time temperature curve recording with U disk data storage and export function. Sensor deviation correction, temperature overshoot self-setting, internal parameter locking, power off parameter memo |
| --Sensor | PT100 |
| Safety Device | Over temperature acoustooptic alarm, sensor fault alarm, vacuum over value alarm |
| Specification | |
| --Inner Chamber size(W*L*H)(mm) | 415*370*340 |
| --Exterior Size (W*L*H)(mm) | 635*565*796 |
| --Packing Size (W*L*H)(mm) | 804*705*957 |
| --Volume | 52L |
| --Max. Shelf Number | 2 |
| --Load Per rack | 15kg |
| --Shelf Space | 140mm |
| --Power Rating (50/60HZ) | AC220V/6.3A |
| --NW/GW (kg) | 67/92 |
| Accessory | |
| --Shelf | 2 |
| --Shelf Frame | 4 |
| Optional accessories | Shelf(Independent temperature control),RS485 transfer to USB communication interface,PrinteWrI,F| control module |
Features
1. SUS304 embossed stainless steel housing, SUS304 mirrored stainless steel studio, 5083 corrosion resistant aluminum plate.2. Independent pluggable shelf heating.
3. Fixed value or program operation mode, true color 7.0-inch touch screen multi-section PID temperature controller, high temperature control accuracy, real-time temperature curve record, convenient for users to see the heating process. The program mode can realize temperature control and vacuum degree multi-stage programming operation to improve the experimental efficiency.
4. Automatic vacuum degree control system, set the vacuum degree, automatically reach the set vacuum degree. Standard with inflatable port, manual and electric double set of exhaust devices.
5. Users can configure the vacuum pump, standard with the vacuum pump oil return device, convenient for customers to use, and avoid the vacuum pump oil return.

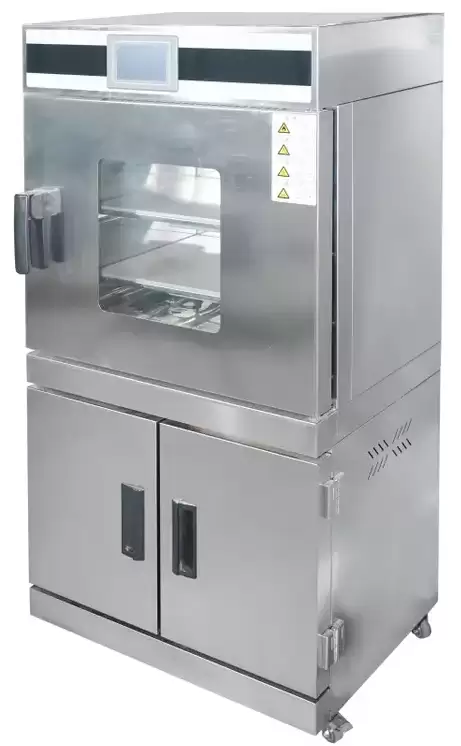

6. BLT type standard with vacuum pump, air pipeline equipped with air filter device,
improve the service life of vacuum pumps.
