Vacuum Drying Oven BOVA-302

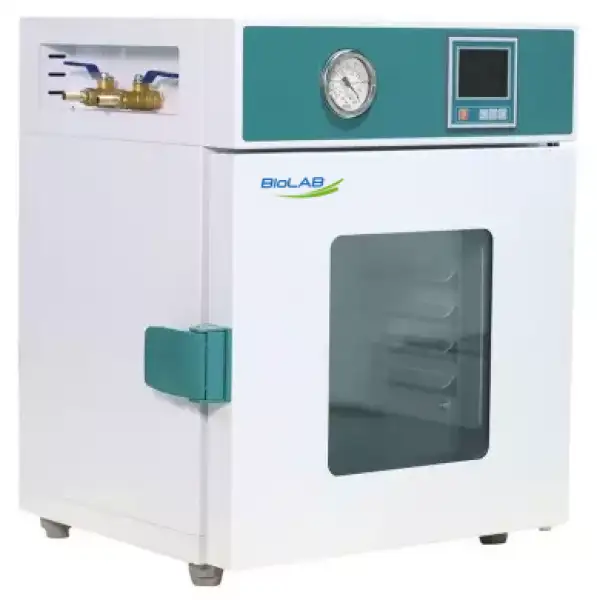

Vacuum Drying Oven
Key Features

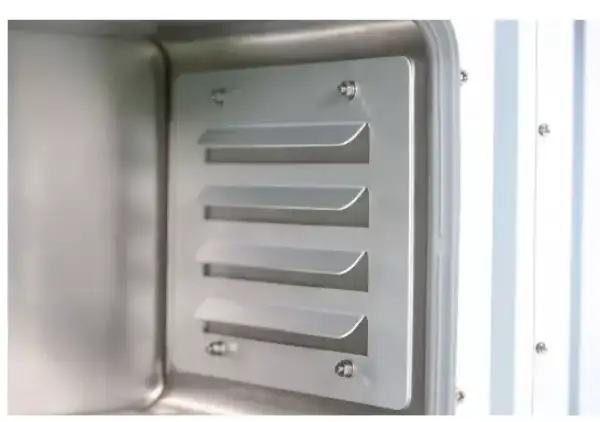

  • 1. 4-sides heating method, temperature conduction by shelves, more efficiency.

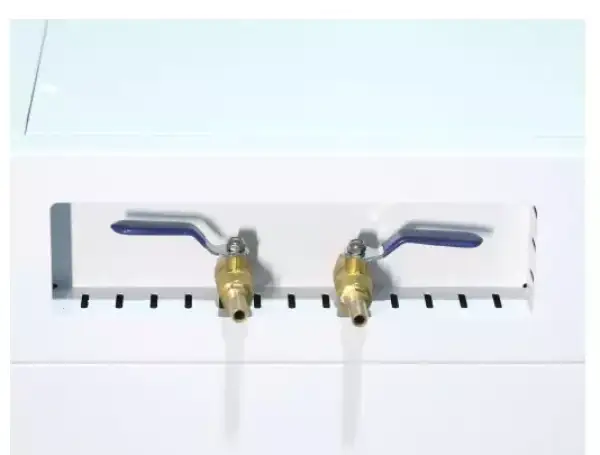

  • 2. With an inflatable port, once-forming thermostability silica gel sealant strip, with good tightness

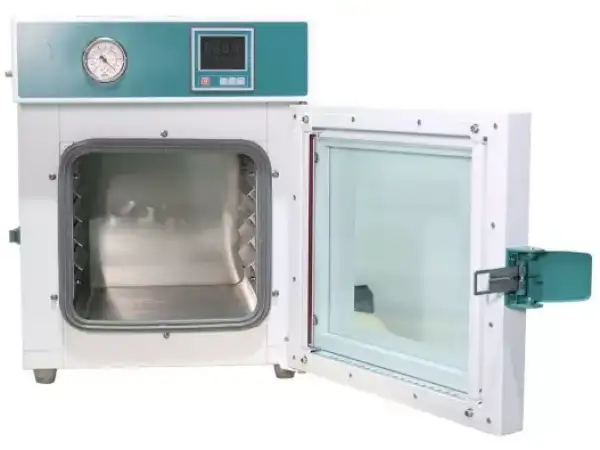

  • 3. Double layer observation glass window, inner is toughened glass, outside is resin protection plate, more safety.
  • 4. Fastening handle, convenient for opening and closing.
SKU: BOVA-302
Old SKU: BER2I2
Pricing & Resources
  • Up to 3-Year Product Warranty
  • US & EU Compliance Standards
  • Door-to-Door Shipping
Recently Shipped To: 🇳🇱 Netherlands , 🇭🇰 Hong Kong , 🇫🇷 France , 🇮🇱 Israel
Get Quote Download Catalog
Specifications Features Applications Photos Get Quote

Technical Specifications

Detailed operating and construction parameters for this model.

ModelBOVA-302
Capacity52L
Temperature RangeRT+10-250°C
Temperature Accuracy
Heating ModeFour walls heat conduction and decompression
Function
Useful vacuum Degree range<133Pa
Temp. Resolution Ratio0.1°C
Temp. Motion±1°C
Heating -Up Time100min
Structure
Inner ChamberHigh Quality stainless steel
Quter ShellCold rolling steel electrostatic spraying exterior
Insulation LayerHigh quality aluminum silicate cotton (with CE certification)
HeaterStainless steel electric heat tube
Observation WindowBullet-proof tempered glass
Vacuum MeterPointer type, accuracy class 1.6%
Nozzle Diameter10mm
Power Rating1.4kW
Controller
Temp. Control ModeTwo temperature section PID intelligent
Temp. Setting ModeTouch button setting
Temp. Display ModeMeasuring temperature:display on the four digital tubes upper row; setting temperature; display on the lower row
Timer0-9999min(with timing wait function)
Operation FunctionFixed temperature operation, timing function, auto stop
Additional FunctionSensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory
SensorPT100
Safety DeviceOver temperature sound-light alarm
SpecificationTwo temperature section PID intelligent
Inner Chamber size(W*L*H)(mm)415*370*340
Exterior Size (W*L*H)(mm)560*540*680
Packing Size (W*L*H)(mm)704*620*814
Max. Shelf Number6
Load Per rack15kg
Shelf Space40mm
Power Rating (50/60HZ)AC220V/6.3A
NW/GW (kg)67/92
Accessory
Shelf2
Shelf Frame4
Optional accessoriesSilicone connecting tube, vacuum pump filter, vacuum pump Optional Accessories Silicone connecting tube, vacuum pump filter, vacuum pump

Product Features

Key design, performance, usability, and safety advantages.

1. 4-sides heating method, temperature conduction by shelves, more efficiency.
2. With an inflatable port, once-forming thermostability silica gel sealant strip, with good tightness
3. Double layer observation glass window, inner is toughened glass, outside is resin protection plate, more safety.
4. Fastening handle, convenient for opening and closing.
Applications Explore common laboratory, research, industrial, and process applications.

For the design of drying heat sensitive and easy decomposition, easy oxidation material, inert gas into.
