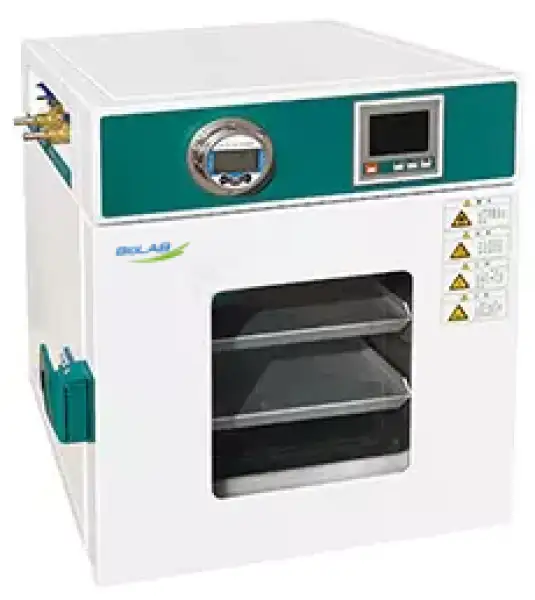

Vacuum Drying Oven BER-901

Precision Vacuum Drying Oven
Key Features
  • 1. 4-sides Heating method, Temperature conduction by shelves, more efficiency.
  • 2. With inflatable port, once-forming thermostability Silica gel Sealant strip, with good tightness
  • 3. Double Observation glass window, inner is explosion - proof glass, outside is resin protection plate, more safety.
  • 4. Fastening handle, convenient for opening and closing.
  • 5. LCD controller,multiple groups of date3 display on one screen, intelligent PID control system, with PT100 sensor.
  • 6. LCD vacuum gauge, accuracy class 0.5, Mpa, Kpa, bar, Psi, KGF/cm five pressure units optional switch.
SKU: BER-901
Old SKU: BER1J1
Pricing & Resources
  • Up to 3-Year Product Warranty
  • US & EU Compliance Standards
  • Door-to-Door Shipping
Recently Shipped To: 🇪🇸 Spain , 🇷🇼 Rwanda , 🇲🇼 Malawi , 🇱🇧 Lebanon
Get Quote Download Catalog
Specifications Features Get Quote

Technical Specifications

Detailed operating and construction parameters for this model.

ModelBER-901
Capacity24L
Temperature RangeRT+10-250°C
Temperature Accuracy
Heating ModeFour walls heat conduction and decompression
Function
Useful vacuum Degree range<133Pa
Temp. Resolution Ratio0.1°C
Temp. Motion±1°C
Heating -Up Time80min
Structure
Inner ChamberHigh Quality stainless steel
Quter ShellCold rolling steel electrostatic spraying exterior
Insulation LayerHigh quality aluminum silicate cotton (with CE certification)
HeaterStainless steel electric heat tube
Observation WindowBullet-proof tempered glass
Vacuum MeterLCD Display, accuracy class 0.5
Nozzle Diameter10mm
Power Rating0.8kW
Controller
Temp. Control ModeTwo temperature section PID intelligent
Temp. Setting ModeTouch button setting
Temp. Display ModeLCD Color screen Liquid crystal displays multiple groups of data on one screen
Timer0-9999min(with timing wait function)
Operation FunctionFixed temperature operation, timing function, auto stop
Additional FunctionSensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory
SensorPT100
Safety DeviceOver temperature sound-light alarm
Specification
Inner Chamber size(W*L*H)(mm)300*300*270
Exterior Size (W*L*H)(mm)480*480*606
Packing Size (W*L*H)(mm)590*550*750
Max. Shelf Number4
Power Rating (50/60HZ)AC220V/3.6A
NW/GW (kg)42/52
Accessory
Shelf2
Shelf Frame4
Optional accessoriesSilicone connecting tube, vacuum pump filter, vacuum pump Optional Accessories Silicone connecting tube, vacuum pump filter, vacuum pump

Product Features

Key design, performance, usability, and safety advantages.

1. 4-sides Heating method, Temperature conduction by shelves, more efficiency.
2. With inflatable port, once-forming thermostability Silica gel Sealant strip, with good tightness
3. Double Observation glass window, inner is explosion - proof glass, outside is resin protection plate, more safety.
4. Fastening handle, convenient for opening and closing.
5. LCD controller,multiple groups of date3 display on one screen, intelligent PID control system, with PT100 sensor.
6. LCD vacuum gauge, accuracy class 0.5, Mpa, Kpa, bar, Psi, KGF/cm five pressure units optional switch.
