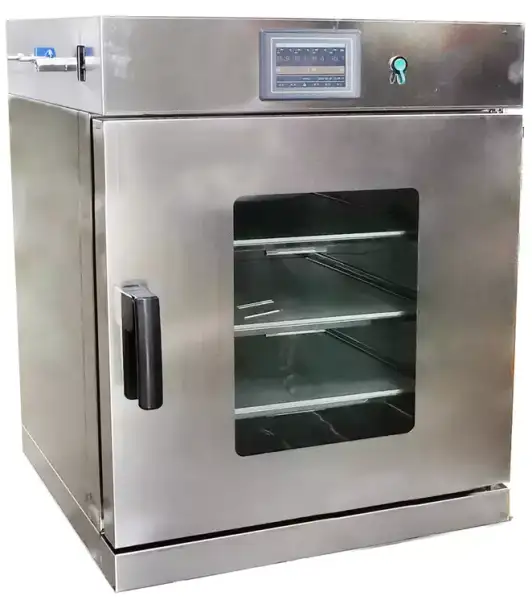

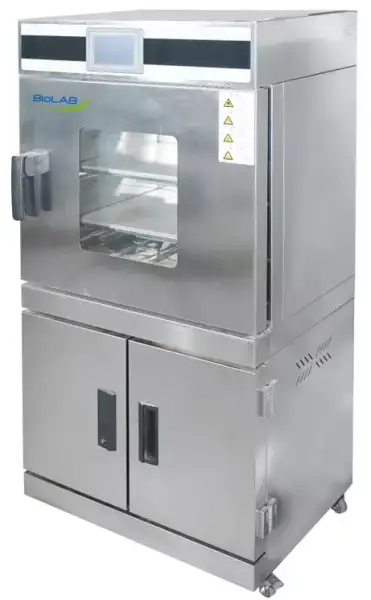

Vacuum Drying Oven BER-1003

Automatic Precision Vacuum Drying Oven (pluggable Shelf Heating), Automatic Precision Vacuum Drying Oven
Key Features
  • 1. SUS304 embossed stainless steel housing, SUS304 mirrored stainless steel studio, 5083 corrosion resistant aluminum plate.
  • 2. Independent pluggable shelf heating.
  • 3. Fixed value or program operation mode, true color 7.0-inch touch screen multi-section PID temperature controller, high temperature control accuracy, real-time temperature curve record, convenient for users to see the heating process. The program mode can realize temperature control and vacuum degree multi-stage programming operation to improve the experimental efficiency.
  • 4. Automatic vacuum degree control system, set the vacuum degree, automatically reach the set vacuum degree. Standard with inflatable port, manual and electric double set of exhaust devices.
  • 5. Users can configure the vacuum pump, standard with the vacuum pump oil return device, convenient for customers to use, and avoid the vacuum pump oil return.

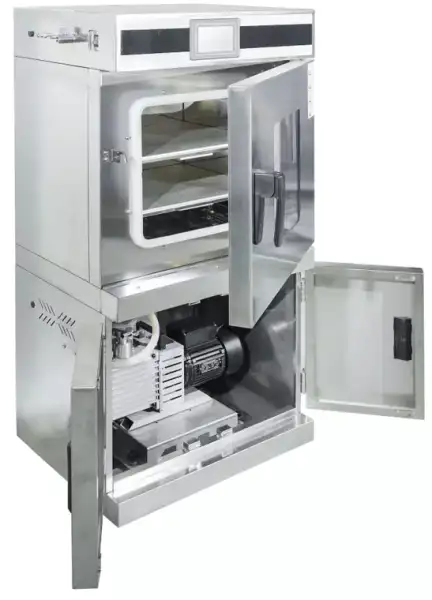

  • 6. BLT type standard with vacuum pump, air pipeline equipped with air filter device,
  • improve the service life of vacuum pumps.
SKU: BER-1003
Old SKU: BER1K3
Pricing & Resources
  • Up to 3-Year Product Warranty
  • US & EU Compliance Standards
  • Door-to-Door Shipping
Recently Shipped To: 🇺🇬 Uganda , 🇳🇵 Nepal , 🇮🇪 Ireland , 🇲🇿 Mozambique
Get Quote Download Catalog
Specifications Features Applications Get Quote

Technical Specifications

Detailed operating and construction parameters for this model.

ModelBER-1003
Capacity214.5L
Temperature RangeRT+10-250°C
Temperature Accuracy
Heating ModeSheft direct heating
Function
Useful vacuum Degree range<133Pa
Temp. Resolution Ratio0.1°C
Temp. Motion±1°C
Heating -Up Time≤40 minutes
Structure
Inner ChamberSUS304 mirror stainless steel
Quter ShellSUS304 embossed stainless steel, 5083 Corrosion resistant aluminium plate
Insulation LayerAluminium silicate fibre
HeaterMica electrothermal film
Observation WindowBulletproof tempered glass
Vacuum SensorStandard pressure sensor, absolute pressure accuracy class 0.25, vacuum touch screen display
Exhaust deviceManualand electric double exhaust device
Air intake portStandard inflation port
"BLT Vacuum Pump System(BL:without Vacuum Pump)"Double stage rotary vane vacuum pump 6L/SVacuum pump air inlet drying filterVacuum pump exhaust oil mist filter
Nozzle Diameter10mm
Power rating2.5kW
Controller
Temp. Control Mode7.0~inch LCD color touch screen multi-stage PID program temperature control
Temp. Setting ModeTouch Screen Type
Temp. Display Mode7.0-inch LCD color touch screen
Timer0-39999 minutes/0-9999 hours can adjust
Operation FunctionFixed value operation, regular, automatic stop
Fixed Value ModeControl temperature and vacuum at the same time
Program modeControl temperature and control vacuum at the same time, 30 programmable operation
Additional FunctionVacuum pump oil return preventer. Real-time temperature curve recording with U disk data storage and export function. Sensor deviation correction, temperature overshoot self-setting, internal parameter locking, power off parameter memo
SensorPT100
Safety DeviceOver temperature acoustooptic alarm, sensor fault alarm, vacuum over value alarm
Specification
Inner Chamber size(W*L*H)(mm)550*600*650
Exterior Size (W*L*H)(mm)770*795*650
Packing Size (W*L*H)(mm)940*935*1262
Max. Shelf Number2
Load Per rack15kg
Shelf Space265mm
Power Rating (50/60HZ)AC220V/13.1A
NW/GW (kg)180/210
Accessory
Shelf2
Shelf Frame4
Optional accessoriesShelf(Independent temperature control),RS485 transfer to USB communication interface,PrinteWrI,F| control module

Product Features

Key design, performance, usability, and safety advantages.

1. SUS304 embossed stainless steel housing, SUS304 mirrored stainless steel studio, 5083 corrosion resistant aluminum plate.
2. Independent pluggable shelf heating.
3. Fixed value or program operation mode, true color 7.0-inch touch screen multi-section PID temperature controller, high temperature control accuracy, real-time temperature curve record, convenient for users to see the heating process. The program mode can realize temperature control and vacuum degree multi-stage programming operation to improve the experimental efficiency.
4. Automatic vacuum degree control system, set the vacuum degree, automatically reach the set vacuum degree. Standard with inflatable port, manual and electric double set of exhaust devices.
5. Users can configure the vacuum pump, standard with the vacuum pump oil return device, convenient for customers to use, and avoid the vacuum pump oil return.
6. BLT type standard with vacuum pump, air pipeline equipped with air filter device,
improve the service life of vacuum pumps.
Applications Explore common laboratory, research, industrial, and process applications.

It is designed for drying heat-sensitive, easily decomposed and easily oxidized substances. It is widely used in medicine, food, light industry, chemical industry, agricultural scientific research, environmental protection and other experimental fields.
