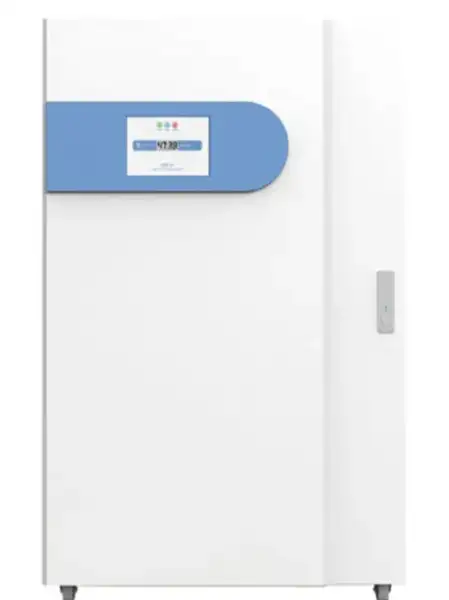

Type III RO Water Purification System BFN-12103
Ro Water Purification System
Key Features
- Cost-effectively provides 100/200/2-100 liters/hr of compliant purified water. This 100/200/2-100 ensures a continual supply of purified water for installations such as single washer disinfectors and endoscope reprocessors.
SKU: BFN-12103
Pricing & Resources
- Up to 3-Year Product Warranty
- US & EU Compliance Standards
- Door-to-Door Shipping
Technical Specifications
Detailed operating and construction parameters for this model.
| Model | BFN-12103 |
| Production Rate | 100L/hr |
| Water Quality | Type III |
| Feed Water | Tap Water |
| Tank Capacity | |
| Feed Water Requirement : | |
| Source | Tap water |
| Conductivity | <2000 μS/cm |
| Hardness | <450 ppm as CaCO₃ |
| Pressure | 0.05-0.5 MPa (7-72 psi) |
| Temperature | 5-40°C |
| Purification Water (Class III) : | |
| Ionic Rejection | >95% |
| Bacteria Rejection | >99% |
| Conductivity Class III | 1-20 μS/cm (RO-2: 5 μS/cm) |
| Productivity Rate | 100 L/h |
| Electrical Requirements : | |
| Electrical Voltage | 110V/220V ±10% |
| Electrical Frequency | 50Hz/60Hz ±10% |
| Packing Information : | |
| Net Weight Main Units | 74/76/78 kg |
| Net Weight Water Tank | N/A, N/A, 35 kg |
| External Dimensions (WxDxH) Main Units | 650 x 660 x 1260 mm |
| External Dimensions (WxDxH) Water Tank | N/A |
| Shipping Weight Main Units | 96/98/100 kg |
| Shipping Weight Water Tank | N/A, N/A, 50 kg |
| Shipping Dimensions (WxDxH) Main Units | 780 x 810 x 1400 mm |
| Shipping Dimensions (WxDxH) Water Tank | N/A, N/A, 600 x 525 x 1680 mm |
| Notes | * If feed water quality is poor (Conductivity > 1000 μS/cm), a strengthened pretreatment module and RO-2 type are highly recommended.** When the hardness of feed water is high (> 450 ppm as CaCO₃), a 0.5T water softener is recommended. |
Product Features
Key design, performance, usability, and safety advantages.
Cost-effectively provides 100/200/2-100 liters/hr of compliant purified water. This 100/200/2-100 ensures a continual supply of purified water for installations such as single washer disinfectors and endoscope reprocessors.
