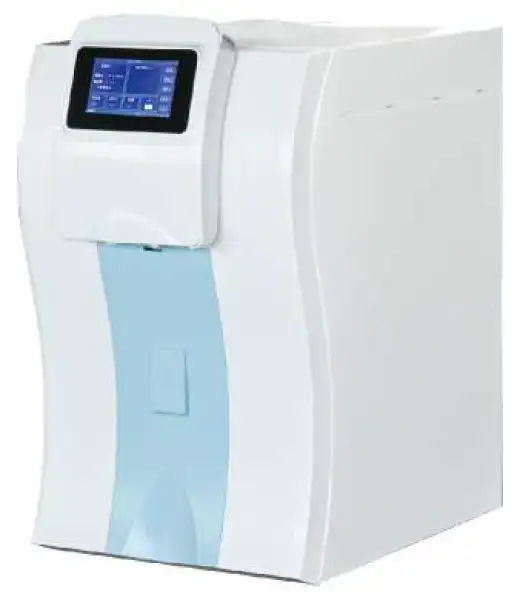

Type II Pure Water Purification System BFN-11501
Pure Water Purification System
Key Features
- This series produces high quality pure water with superior resistivity and low TOC (<30 ppb).
- Output water can be stored in anti-contamination water tanks, and is an ideal solution for routine laboratory application.

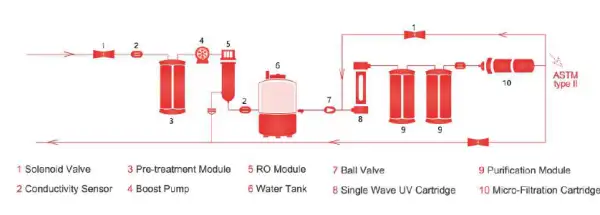

- Technically combines RO Membrane, deionization and UV Lamp to achieve effective removal on all types of water contaminant.
- Built-in UV Lamp is ideal for low bacteria application.
SKU: BFN-11501
Pricing & Resources
- Up to 3-Year Product Warranty
- US & EU Compliance Standards
- Door-to-Door Shipping
Recently Shipped To:
🇸🇦 Saudi Arabia , 🇰🇷 South Korea , 🇨🇮 Cote D'ivoire , 🇪🇬 Egypt
Get Quote
Download Catalog
Technical Specifications
Detailed operating and construction parameters for this model.
| Model | BFN-11501 |
| Production Rate | 30L/hr |
| Water Quality | Type II, Type III |
| Feed Water | Tap Water |
| Tank Capacity | 30L/60L |
| Feed Water Requirement : | |
| Source | Tap water |
| Conductivity | ≤2000 μS/cm |
| Hardness | ≤450 ppm as CaCO₃ |
| Pressure | 0.05-0.5 MPa (7-72 psi) |
| Temperature | 5-40°C |
| Purification Water (Class III) : | |
| Ionic Rejection | ≥95% |
| Bacteria Rejection | ≥99% |
| Conductivity Class III | 1-20 μS/cm (RO-2: 5 μS/cm) |
| Productivity Rate | 30 L/h |
| High Quality Purification Water (Class II) : | |
| Resistivity at 25°C | ≥10 MΩ·cm |
| TOC | ≤30 ppb |
| Dissolved Organic | ≤0.1 ppm |
| Particulate (≥0.02 μm) | ≤1 pc/ml |
| Bacteria | ≤1 cfu/ml |
| Flow Rate | 1.5-2.0 L/min |
| Electrical Requirements : | |
| Electrical Voltage | 110V / 220V ±10% |
| Electrical Frequency | 50Hz / 60Hz |
| Packing Information : | |
| Net Weight - Main Unit | 25 kg |
| Net Weight - Water Tank (30L/60L) | 7 kg |
| External Dimensions (WxDxH) - Main Unit | 315 x 525 x 570 mm |
| External Dimensions (WxDxH) - Water Tank (30L/60L) | 380 x 380 x 595 mm |
| Shipping Weight - Main Unit | 37 kg |
| Shipping Weight - Water Tank (30L/60L) | 13 kg |
| Shipping Dimensions (WxDxH) - Main Unit | 525 x 610 x 770 mm |
| Shipping Dimensions (WxDxH) - Water Tank (30L/60L) | 520 x 440 x 615 mm |
| Notes | * If feed water quality is poor (Conductivity > 1000 μS/cm), a strengthened pretreatment module and RO-2 type are highly recommended.** When the hardness of feed water is high (> 450 ppm as CaCO₃), a 0.5T water softener is recommended. |
Product Features
Key design, performance, usability, and safety advantages.
This series produces high quality pure water with superior resistivity and low TOC (<30 ppb).
Output water can be stored in anti-contamination water tanks, and is an ideal solution for routine laboratory application.
Technically combines RO Membrane, deionization and UV Lamp to achieve effective removal on all types of water contaminant.
Built-in UV Lamp is ideal for low bacteria application.
