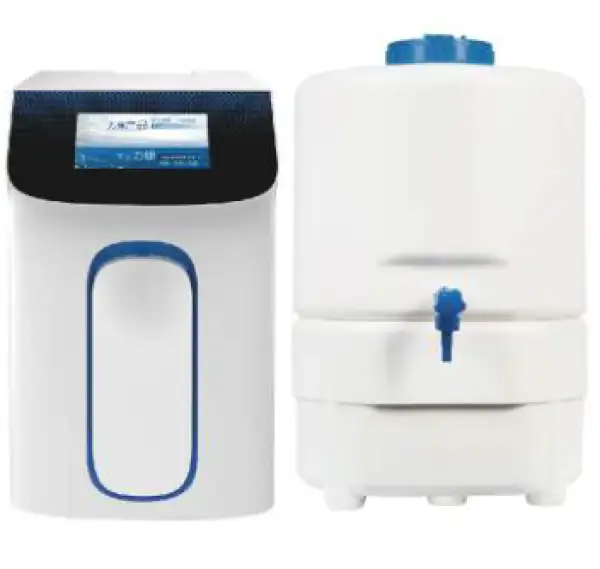

Type II Pure Water Purification System BFN-11401
Pure Water Purification System
Key Features
- Complementary water purification techniques, including state-of-the-art electrodeionization technology, ensuring delivery of constant and reliable quality Type 2 pure water.
SKU: BFN-11401
Pricing & Resources
- Up to 3-Year Product Warranty
- US & EU Compliance Standards
- Door-to-Door Shipping
Technical Specifications
Detailed operating and construction parameters for this model.
| Model | BFN-11401 |
| Production Rate | 15 L/hr |
| Water Quality | Type II, Type III |
| Feed Water | Tap Water |
| Tank Capacity | |
| Feed Water Requirement : | |
| Source | Tap Water |
| Conductivity | < 2000 μS/cm |
| Hardness | < 450 ppm as CaCO₃ |
| Pressure | 0.05-0.5 MPa (7-72 psi) |
| Temperature | 5-40°C |
| Purification Water (Class III) : | |
| Ionic Rejection | - |
| Bacteria Rejection | - |
| Conductivity Class III | 1-20 μS/cm |
| Productivity Rate Class III | 30 L/h |
| High Quality Purification Water (Class II) : | |
| Resistivity at 25°C | 10 MΩ·cm |
| TOC | < 30 ppb |
| Dissolved Organic | < 0.1 ppm |
| Productivity Rate Class II | 15 L/h |
| Electrical Requirements : | |
| Electrical Voltage | 110 V / 220 V ±10% |
| Electrical Frequency | 50 Hz / 60 Hz |
| Packing Information : | |
| Net Weight - Main Unit | 32 kg |
| Net Weight - Water Tank (30 L) | 7 kg |
| External Dimensions (W x D x H) - Main Unit | 315 x 525 x 570 mm |
| External Dimensions (W x D x H) - Water Tank (30 L) | 380 x 380 x 595 mm |
| Shipping Weight - Main Unit | 45 kg |
| Shipping Weight - Water Tank (30 L) | 15 kg |
| Shipping Dimensions (W x D x H) - Main Unit | 525 x 610 x 770 mm |
| Shipping Dimensions (W x D x H) - Water Tank (30 L) | 520 x 440 x 615 mm |
| Notes | * If feed water quality is poor (Conductivity >1000 μS/cm), 3 class strengthened pretreatment module and RO-2 type is highly recommended.** When hardness of feed water is high (>450 ppm as CaCO3), 0.5T water soften tank is recommended. |
Product Features
Key design, performance, usability, and safety advantages.
Complementary water purification techniques, including state-of-the-art electrodeionization technology, ensuring delivery of constant and reliable quality Type 2 pure water.
