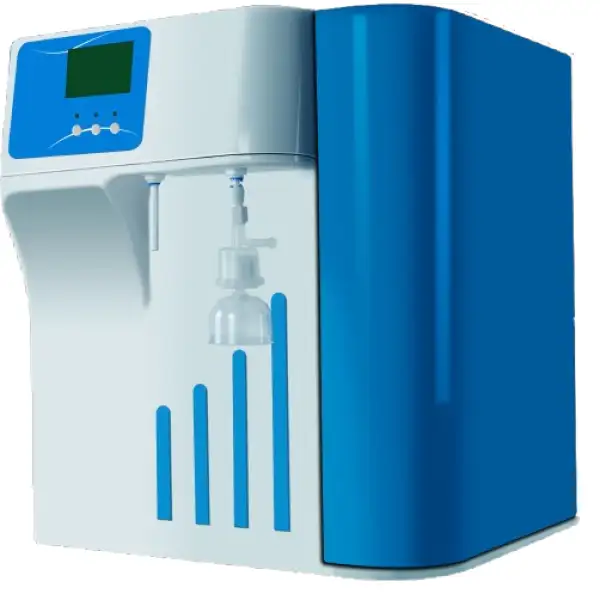

Type I Ultrapure Water Purification System BKO-1003
Ultrapure Water Machine

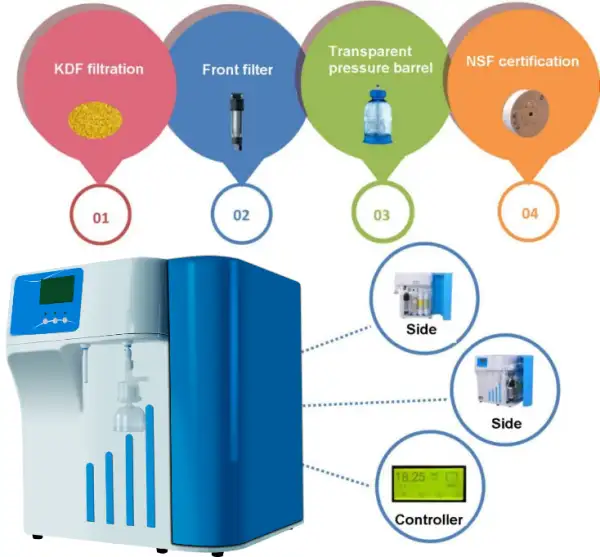

Key Features
- Built-in filter, with 10 micron 316L stainless steel precision filter screen to remove fine impurities instead of PP cotton filter; manual drain valve, automatic cleaning at any time, soft scraping design for more thorough drainage, transparent shell make filtration effect visual.
- The long-acting KDF device adopts the original imported filter material . It removes residual chlorine, heavy metals, and inhibits the growth of fungi at the front of water purification. It has a long service life, better protects the post-purification system, and extends lifetime of ultra-purification column
- Built-in pressure tank which has an inner pouch whose material is anti-bacteria and it is transparent, the inner pouch can be changed anytime.
- ABS engineering plastic case, powder coating technology, with water quality and quantity upgrading function, door is open at the side
- Type U Korean quick-insert filters, used imported filtering materials.
- Backlight LCD display,dual waterway online monitoring, which can simultaneously display RO conductivity value,UP resistance value and equipment operating status indication.
- Menu-type operation parameters can be set and modified, operating status display and indication light indicate to promptly reflect machine operating status such as high-pressure shutdown, low-pressure alarm, water full shutdown, etc.
- Alarming for water quality exceeding, automatic filters replacement reminding, water intake time can be set. Take water by touching the key, Automatic indication light indicates RO and UP water intake.
SKU: BKO-1003
Pricing & Resources
- Up to 3-Year Product Warranty
- US & EU Compliance Standards
- Door-to-Door Shipping
Recently Shipped To:
🇪🇸 Spain , 🇩🇴 Dominican Republic , 🇲🇦 Morocco , 🇬🇭 Ghana
Get Quote
Download Catalog
Technical Specifications
Detailed operating and construction parameters for this model.
| Model | BKO-1003 |
| Production Rate | 30L/hr |
| Water Quality | Type I, Type III |
| Feed Water | Tap Water |
| Tank Capacity | 8L |
| Type classification | Low TOC |
| The water requirements | Urban tap water, inlet water pressure: 0.15-0.5mpa, water temperature 5-40°C |
| RO water Parameter : | |
| Ion rejection rate | 97%-99% (when using a new RO membrane) |
| Organic matter rejection rate | >99% when MW>200 Dalton |
| Particle and bacterial rejection | > 99% |
| UP water Parameter(ASTM TYPE I grade water) : | |
| Resistivity (25°C) | 18.25 M Ω. Cm @ 25 °C |
| Heavy metal ion | < 0.01 ppb |
| Total organic carbon (TOC) * | <3 ppb |
| bacteria | < 1 cfu/ml *(with terminal filter) |
| Particulate matter (> 0.1 microns) | <1/ml |
| Pyrogen (endotoxin) | N/A |
| Ribonuclease (RNases) | N/A |
| Deoxyribonucleases | N/A |
| Application (TYPE I grade water) | Atomic absorption/emission spectrometry, mass spectrometry, TOC detection, environmental monitoring, biochip development, trace organic matter analysis |
| Electrical requirements | 100-240V, 50/60Hz, 48-72W |
| The system configuration | Host machine (including 1 set of purification column)+8 L built-in pressure water storage tank +TDS pen + accessory bag |
Product Features
Key design, performance, usability, and safety advantages.
Built-in filter, with 10 micron 316L stainless steel precision filter screen to remove fine impurities instead of PP cotton filter; manual drain valve, automatic cleaning at any time, soft scraping design for more thorough drainage, transparent shell make filtration effect visual.
The long-acting KDF device adopts the original imported filter material . It removes residual chlorine, heavy metals, and inhibits the growth of fungi at the front of water purification. It has a long service life, better protects the post-purification system, and extends lifetime of ultra-purification column
Built-in pressure tank which has an inner pouch whose material is anti-bacteria and it is transparent, the inner pouch can be changed anytime.
ABS engineering plastic case, powder coating technology, with water quality and quantity upgrading function, door is open at the side
Type U Korean quick-insert filters, used imported filtering materials.
Backlight LCD display,dual waterway online monitoring, which can simultaneously display RO conductivity value,UP resistance value and equipment operating status indication.
Menu-type operation parameters can be set and modified, operating status display and indication light indicate to promptly reflect machine operating status such as high-pressure shutdown, low-pressure alarm, water full shutdown, etc.
Alarming for water quality exceeding, automatic filters replacement reminding, water intake time can be set. Take water by touching the key, Automatic indication light indicates RO and UP water intake.
Equipped with a portable test pen, which can test TDS content, conductance and water temperature anytime, anywhere
The pipeline adopts a quick-plug interface, the pipe joint passes NSF certification, dual-wavelength UV lamps, effectively sterilizes and reduces TOC, and the original imported 5000D ultra filtration module effectively removes pyrogen.
With RS-232C communication interface output, it can be connected with intelligent instruments with RS-232C interface to realize the transmission of measurement data or print records (optional).
Extra Information View additional product guidance, technical notes, diagrams, and supporting information.
Product name | Picture | Function | Replace cycle |

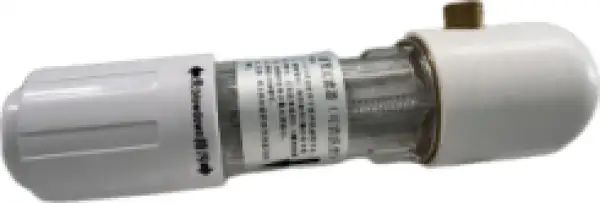

Front filter |
| 10 micron 316 stainless steel washable filter, remove minor impurities,extend PP cotton lifetime. | / |

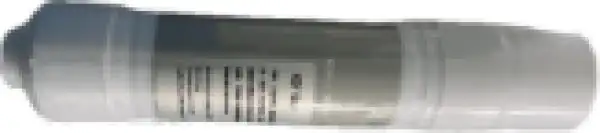

KDF composite filter |
| Remove residual chlorine,heavy metals, retrain fungi breed, lifetime is very long, can protect post-positive filters. | About 1 year |

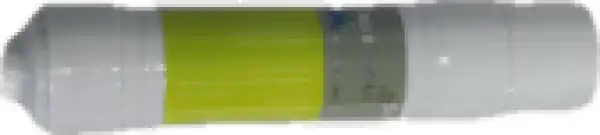

11" PP filter |
| remove impurities (greater than 5 micron) such as suspended solid, rust, sludge, colloid, etc. | About 4-6 month |

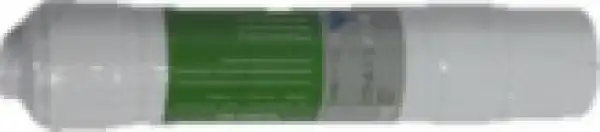

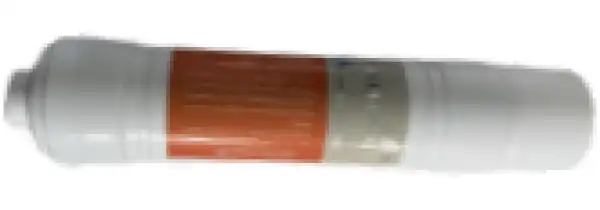

11" activated carbon filter |
| remove color, odor, residual chlorine and heavy metals | About 4-6 month |

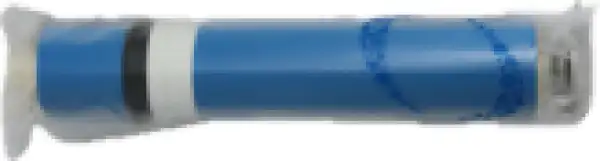

Reverse osmosis membrane |
| filter out <1nm pollutants, ions, particles | About 1-2 years |

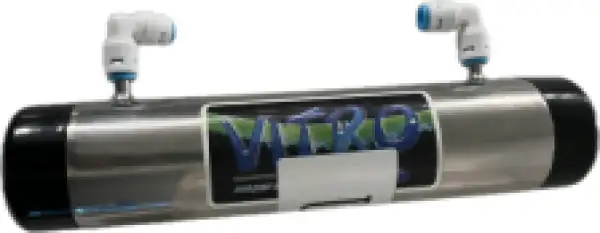

Dual wavelength (185 & 254 nm) UV lamp |
| sterilization device, decomposition and photo oxidation OC, lower TOC (*-V,-VF) 185nm: TOC removal;254nm: sterilization | About 9000 hours |
11"ultra-purification column |
| ion exchange resin bed, H+ and OH- ion removal | About 1000 liter/pc |

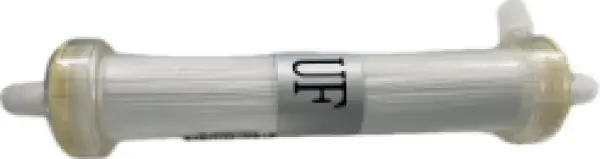

Imported 5000 Dalton UF heat source column |
| remove pyrogen,RNase, DNase(*-F,-VF) | About 2-3 years |

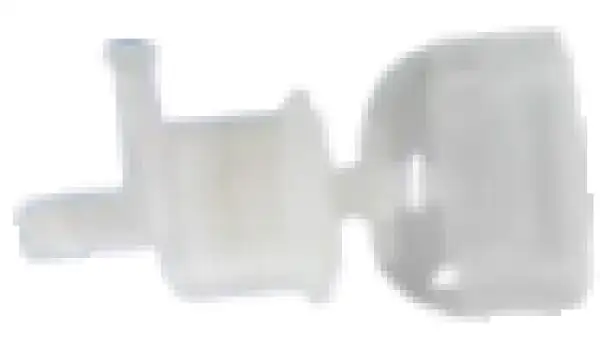

0.2 μm PES terminal filter |
| final removal for < 0.2μm bacteria | About 2-3 years |
Applications Explore common laboratory, research, industrial, and process applications.
Atomic absorption/emission spectrometry, mass spectrometry, TOC detection, environmental monitoring, biochip development, trace organic matter analysis.
