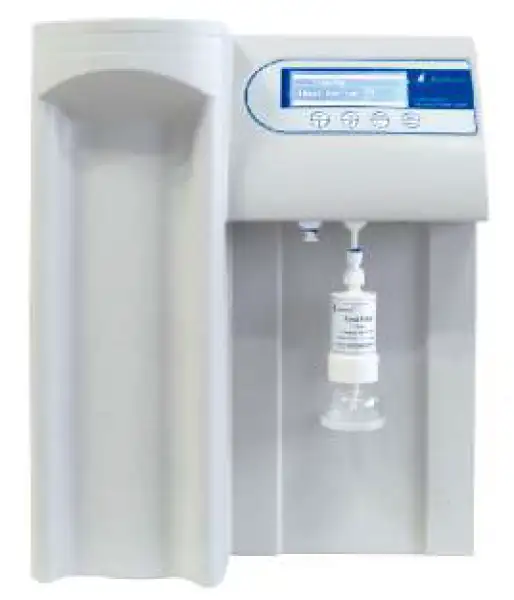

Type I Ultrapure Water Purification System BFN-11301
Ultrapure Water Purification System
Key Features
- The model has an all-in-one system to produce Type I, II and III pure water. It is specially designed for users whose pure water applications are wide but also concern cost effective aspects.
SKU: BFN-11301
Pricing & Resources
- Up to 3-Year Product Warranty
- US & EU Compliance Standards
- Door-to-Door Shipping
Technical Specifications
Detailed operating and construction parameters for this model.
| Model | BFN-11301 |
| Production Rate | 15L/hr |
| Water Quality | Type I, Type II, Type III |
| Feed Water | Tap Water |
| Tank Capacity | |
| Feed Water Requirement : | |
| Source | Tap Water |
| Conductivity | ≤ 2000 μS/cm |
| Hardness | ≤ 450 ppm as CaCO₃ |
| Pressure | 0.05-0.5 MPa (7-72 psi) |
| Temperature | 5-40°C |
| Purification Water (Class III) : | |
| Ionic Rejection | > 95% |
| Bacteria Rejection | > 99% |
| Conductivity Class III | 1-20 μS/cm |
| Productivity Rate | 15 L/h, 30 L/h |
| High Quality Purification Water (Class II) : | |
| Resistivity at 25°C | 10 MΩ·cm |
| TOC | < 30 ppb |
| Dissolved Organic | < 0.1 ppm |
| Ultrapurification Water (Class I) : | |
| Resistivity at 25°C Class I | 16-17 MΩ·cm |
| Flow Rate | 1-1.5 L/min |
| TOC Level (Optional with UV) | < 30 ppb |
| Particulate (≥ 0.02 μm) | < 1 pc/mL |
| Bacteria | < 1 CFU/mL |
| Electrical Requirements : | |
| Electrical Voltage | 110 V / 220 V ±10% |
| Electrical Frequency | 50 Hz / 60 Hz |
| Packing Information : | |
| Net Weight - Main Unit | 38 kg |
| Net Weight - Water Tank (-/20G) | N/A |
| External Dimensions (W x D x H) - Main Unit | 390 x 530 x 500 mm |
| External Dimensions - Water Tank (-/20G) | N/A |
| Shipping Weight - Main Unit | 51 kg |
| Shipping Weight - Water Tank (-/20G) | N/A |
| Shipping Dimensions (W x D x H) - Main Unit | 515 x 660 x 750 mm |
| Shipping Dimensions - Water Tank (-/20G) | N/A |
| Notes | * If feed water quality is poor (Conductivity >1000 μS/cm), 3-class strengthened pretreatment module and RO-2 type is highly recommended.** When hardness of feed water is high (>450 ppm as CaCO3), 0.5T water soften tank is recommended. |
Product Features
Key design, performance, usability, and safety advantages.
The model has an all-in-one system to produce Type I, II and III pure water. It is specially designed for users whose pure water applications are wide but also concern cost effective aspects.
