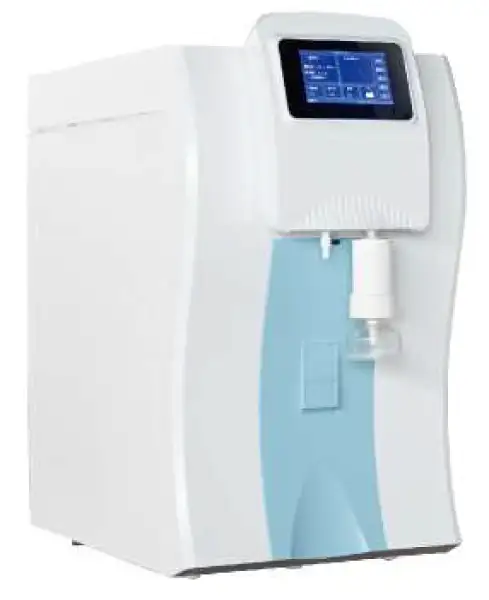

Type I Ultrapure Water Purification System BFN-11201
Ultrapure Water Purification System
Key Features
- Many laboratories require ultrapure water every day - for HPLC or for other instrumental analyses - but only as small volumes at a time, up to a total of a few liters at the most.
- However, this is no reason to do without professional, freshly-prepared ultrapure water and buy expensive HPLC water. After all, with the repeated taking of small volumes from an HPLC water container, the quality of the water and the TOC-value no longer fulfill the specifications. The ultrapure water is no longer ultrapure!
- Always fresh. Always available in the volume required. Always with the required quality. And always for only a few cents per liter.
SKU: BFN-11201
Pricing & Resources
- Up to 3-Year Product Warranty
- US & EU Compliance Standards
- Door-to-Door Shipping
Technical Specifications
Detailed operating and construction parameters for this model.
| Model | BFN-11201 |
| Production Rate | 30L/hr |
| Water Quality | Type I, Type III |
| Feed Water | Tap Water |
| Tank Capacity | |
| Feed Water Requirement : | |
| Source | Tap water |
| Conductivity | <2000 μS/cm |
| Hardness | <450 ppm as CaCO₃ |
| Pressure | 0.05-0.5 MPa (7-72 psi) |
| Temperature | 5-40°C |
| Purification Water (Class III) : | |
| Ionic Rejection | >95% |
| Bacteria Rejection | >99% |
| Conductivity (Class III) | 1-20 μS/cm (RO-2: 5 μS/cm) |
| Productivity Rate | 30 L/h |
| Ultrapurification Water (Class I) : | |
| Resistivity at 25°C | 18.2 MΩ·cm |
| Conductivity at 25°C | 0.055 μS/cm |
| TOC Level | 1-5 ppb |
| Endotoxin (Pyrogens) | N/A |
| Particulate (≥0.02 μm) | <1 pc/ml |
| Bacteria | <0.1 cfu/ml |
| RNase / DNase | N/A |
| Manual Dispense Flow Rate | 1.2-1.5 L/min |
| Automatic Dispense Volume | 100-60000 ml |
| Electrical Requirements : | |
| Electrical Voltage | 110 V/220 V ±10% |
| Electrical Frequency | 50/60 Hz |
| Packing Information : | |
| Net Weight : | |
| Main Unit | 32 kg |
| Water Tank | N/A |
| External Dimensions (W x D x H) Main Unit | 315 x 525 x 570 mm |
| External Dimensions (W x D x H) Water Tank | N/A |
| Shipping Weight Main Unit | 45 kg |
| Shipping Weight Water Tank | N/A |
| Shipping Dimensions (W x D x H) Main Unit | 525 x 610 x 770 mm |
| Shipping Dimensions (W x D x H) Water Tank | N/A |
| Notes | * If feed water quality is poor (Conductivity >1000 μS/cm), strengthened pretreatment module and RO-2 type is highly recommended.** When hardness of feed water is high (>450 ppm as CaCO3), 0.5T water softener is recommended.*** A dual wave UV module needs to be adopted. Also dependent on feed water, recommended feed TOC. |
Product Features
Key design, performance, usability, and safety advantages.
Many laboratories require ultrapure water every day - for HPLC or for other instrumental analyses - but only as small volumes at a time, up to a total of a few liters at the most.
However, this is no reason to do without professional, freshly-prepared ultrapure water and buy expensive HPLC water. After all, with the repeated taking of small volumes from an HPLC water container, the quality of the water and the TOC-value no longer fulfill the specifications. The ultrapure water is no longer ultrapure!
Always fresh. Always available in the volume required. Always with the required quality. And always for only a few cents per liter.
