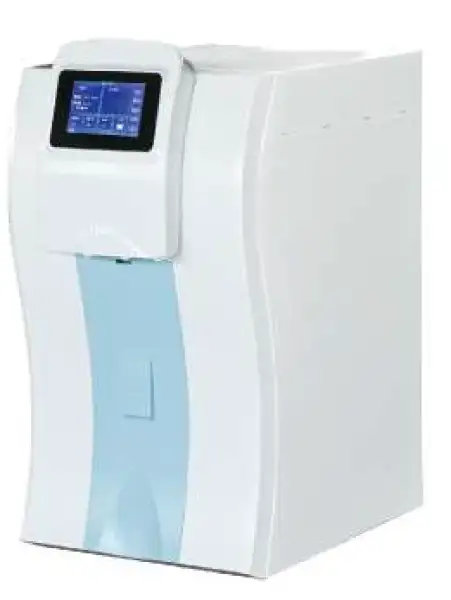

Type I Ultrapure Water Purification System BFN-11101
Ultrapure Water Purification System
Key Features
- The purified water quality required as feedwater.
- Tap water subjected to ion exchange, reverse osmosis or distillation.
- Optimally, the purified water supplied by a RO system.
- The contents of organic and inorganic substances in the feedwater are reduced to values approaching their limits by the serial combination of high-efficiency purification technologies.
SKU: BFN-11101
Pricing & Resources
- Up to 3-Year Product Warranty
- US & EU Compliance Standards
- Door-to-Door Shipping
Technical Specifications
Detailed operating and construction parameters for this model.
| Model | BFN-11101 |
| Production Rate | |
| Water Quality | Type I |
| Feed Water | RO, Distilled, DI Water |
| Tank Capacity | 30L |
| Feed Water Requirement : | |
| Source | RO, Distilled, DI Water (Conductivity <20 μS/cm) |
| Temperature | 5-40°C |
| Ultrapurification Water (Class I) : | |
| Resistivity at 25°C | 18.2 MΩ·cm |
| Conductivity at 25°C | 0.055 μS/cm |
| Flow Rate | 1.5-2.0 L/min |
| TOC Level | 1-5 ppb |
| Endotoxin (Pyrogens) | N/A |
| Particulate (≥0.02 μm) | <1 pc/ml |
| Bacteria | <0.1 cfu/ml |
| RNase / DNase | N/A |
| Electrical Requirements : | |
| Electrical Voltage | 110 V/220 V ±10% |
| Electrical Frequency | 50/60 Hz |
| Packing Information : | |
| Net Weight Main Unit | 18 kg |
| Net Weight Water Tank (30 L) | 5 kg |
| External Dimensions (W x D x H) : | |
| External Dimensions Main Unit | 315 x 525 x 570 mm |
| External Dimensions Water Tank (30 L) | 380 x 380 x 595 mm |
| Shipping Weight : | |
| Shipping Weight Main Unit | 31 kg |
| Shipping Weight Water Tank (30 L) | 13 kg |
| Shipping Dimensions (W x D x H) : | |
| Shipping Dimensions Main Unit | 525 x 610 x 770 mm |
| Shipping Dimensions Water Tank (30 L) | 520 x 440 x 615 mm |
| Notes | *Dual wave UV modules need to be adopted.Also dependent on feed water, recommended feed TOC<30ppb.**Ultra-filtration modules need to be adopted.Feed water needs to be satisfied as above. |
Product Features
Key design, performance, usability, and safety advantages.
The purified water quality required as feedwater.
Tap water subjected to ion exchange, reverse osmosis or distillation.
Optimally, the purified water supplied by a RO system.
The contents of organic and inorganic substances in the feedwater are reduced to values approaching their limits by the serial combination of high-efficiency purification technologies.
