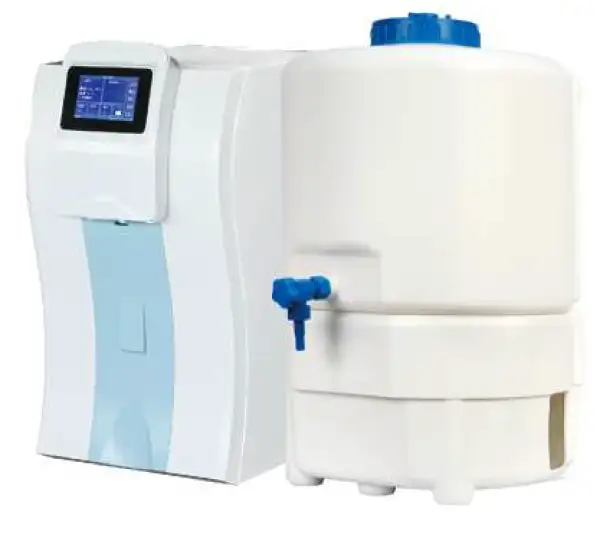

Type I Ultrapure Water Purification System BFN-11002
Ultrapure Water Purification System
Key Features
- This system is a compact solution that combines the production of pure water and ultrapure water in a single unit - eliminating the need for a pretreatment stage upstream of the ultrapure water system.
SKU: BFN-11002
Pricing & Resources
- Up to 3-Year Product Warranty
- US & EU Compliance Standards
- Door-to-Door Shipping
Technical Specifications
Detailed operating and construction parameters for this model.
| Model | BFN-11002 |
| Production Rate | 30L/hr |
| Water Quality | Type I, Type III |
| Feed Water | Tap Water |
| Tank Capacity | 30L |
| Feed Water Requirement : | |
| Source | Tap water |
| Conductivity | <2000 μS/cm |
| Hardness | <450 ppm as CaCO₃ |
| Pressure | 0.05-0.5 MPa (7-72 psi) |
| Temperature | 5-40°C |
| Purification Water (Class III) : | |
| Ionic Rejection | >95% |
| Bacteria Rejection | >99% |
| Conductivity Class III | 1-20 μS/cm (RO-2: 5 μS/cm) |
| Productivity Rate | 30 L/h |
| Ultrapurification Water (Class I) : | |
| Resistivity at 25°C | 18.2 MΩ·cm |
| Conductivity at 25°C | 0.055 μS/cm |
| TOC Level | 1-5 ppb |
| Endotoxin (Pyrogens) | <0.001 EU/ml |
| Particulate (≥0.02 μm) | <1 pc/ml |
| Bacteria | <0.1 cfu/ml |
| RNase / DNase | Free |
| Manual Dispense Flow Rate | 1.5-2.0 L/min |
| Automatic Dispense Volume | 100-60000 ml |
| Electrical Requirements : | |
| Electrical Voltage | 110 V/220 V ±10% |
| Electrical Frequency | 50/60 Hz |
| Packing Information : | |
| Net Weight - Main Unit | 24 kg |
| Net Weight - Water Tank (30 L) | 7 kg |
| External Dimensions (W x D x H) Main Unit | 315 x 525 x 570 mm |
| External Dimensions (W x D x H) Water Tank (30 L) | 380 x 380 x 595 mm |
| Shipping Weight Main Unit | 37 kg |
| Shipping Weight Water Tank (30 L) | 15 kg |
| Shipping Dimensions (W x D x H) Main Unit | 525 x 610 x 770 mm |
| Shipping Dimensions (W x D x H) Water Tank (30 L) | 520 x 440 x 615 mm |
| Notes | *If feed water quality is poor (Conductivity > 1000 μS/cm), strengthened pretreatment module and RO-2 type are highly recommended.**When feed water hardness is high (> 450 ppm as CaCO₃), 0.5T water softener is recommended.***Dual-wave UV module needs to be adopted.Also dependent on feed water, recommended feed water TOC < 30 ppb.****The Ultrafiltration module needs to be adopted.Feed water needs to be satisfied as above. |
Product Features
Key design, performance, usability, and safety advantages.
This system is a compact solution that combines the production of pure water and ultrapure water in a single unit - eliminating the need for a pretreatment stage upstream of the ultrapure water system.
