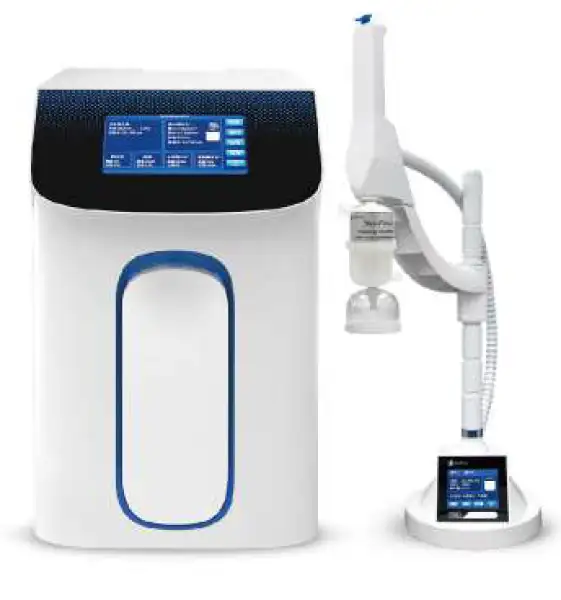

Type I Ultrapure Water Purification System BFN-10701
Ultrapure Water Purification System
Key Features
- This system has been designed especially for you.
- Using an existing source of pure water as feed, the Smart Plus P system delivers high-quality ultrapure water (resistivity value: 18.2 MΩ.cm @25°C; ≤5 ppb), providing an ultrapure water solution adapted to today's laboratory environments.
SKU: BFN-10701
Pricing & Resources
- Up to 3-Year Product Warranty
- US & EU Compliance Standards
- Door-to-Door Shipping
Recently Shipped To:
🇹🇭 Thailand , 🇯🇴 Jordan , 🇦🇺 Australia , 🇬🇹 Guatemala
Get Quote
Download Catalog
Technical Specifications
Detailed operating and construction parameters for this model.
| Model | BFN-10701 |
| Production Rate | |
| Water Quality | Type I |
| Feed Water | RO, Distilled, DI Water |
| Tank Capacity | 30L |
| Feed Water Requirement : | |
| Source | RO, Distilled, DI Water (Conductivity <20 μS/cm) |
| Temperature | 5-40°C |
| Ultrapurification Water (Class I) : | |
| Resistivity at 25°C | 18.2 MΩ·cm |
| Conductivity at 25°C | 0.055 μS/cm |
| Flow Rate | 1.5-2.0 L/min |
| TOC Level* | 1-5 ppb |
| Endotoxin (Pyrogens)** | <0.001 EU/ml |
| Particulate (≥0.02 μm) | <1 pc/ml |
| Bacteria* | <0.1 cfu/ml |
| RNase/DNase** | Free |
| Electrical Requirements : | |
| Electrical Voltage | 110V/220V ±10% |
| Electrical Frequency | 50Hz/60Hz |
| Packing Information : | |
| Net Weight - Main Units | 32 kg |
| Net Weight - Water Tank (30 L) | 4.5 kg |
| External Dimensions (WxDxH) - Main Units | 315x525x570 mm |
| External Dimensions (WxDxH) - Water Tank (30 L) | 380x380x595 mm |
| Shipping Weight - Main Units | 45 kg |
| Shipping Weight - Water Tank (30 L) | 13 kg |
| Shipping Dimensions (WxDxH) - Main Units | 525x610x770 mm |
| Shipping Dimensions (WxDxH) - Water Tank (30 L) | 520x440x615 mm |
| Notes | * Dual wave UV modules need to be adopted. Also dependent on feed water, recommended feed TOC <30 ppb.** Ultra-filtration modules need to be adopted. Feed water needs to be satisfied as above. |
Product Features
Key design, performance, usability, and safety advantages.
This system has been designed especially for you.
Using an existing source of pure water as feed, the Smart Plus P system delivers high-quality ultrapure water (resistivity value: 18.2 MΩ.cm @25°C; ≤5 ppb), providing an ultrapure water solution adapted to today's laboratory environments.
