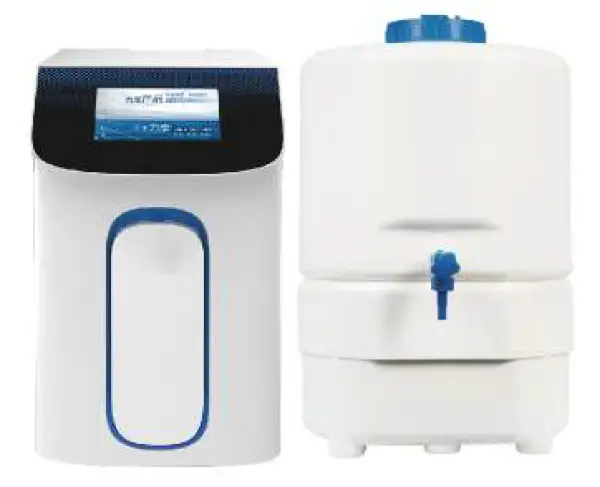

Type I Ultrapure Water Purification System BFN-10502
Ultrapure Water Purification System
Key Features
- The industry's most complete water purification solution for highly regulated applications.
- When your application requires the ultimate in water purity, this provides the perfect solution. Consistently delivering water purity of 18.2MΩ.cm and underpinned by the advanced technologies, the water purification system enables you to focus on attaining accurate results while ensuring an uninterrupted work flow.
SKU: BFN-10502
Pricing & Resources
- Up to 3-Year Product Warranty
- US & EU Compliance Standards
- Door-to-Door Shipping
Technical Specifications
Detailed operating and construction parameters for this model.
| Model | BFN-10502 |
| Production Rate | 30L/hr |
| Water Quality | Type I, Type III |
| Feed Water | Tap Water |
| Tank Capacity | 30L |
| Feed Water Requirement : | |
| Source | Tap water |
| Conductivity | <2000 μS/cm |
| Hardness** | <450 ppm as CaCO₃ |
| Pressure | 0.05-0.5 MPa (7-72 psi) |
| Temperature | 5-40°C |
| Purification Water (Class III) : | |
| Ionic Rejection | >95% |
| Bacteria Rejection | >99% |
| Conductivity Class III | 1-20 μS/cm |
| Productivity Rate | 30 L/h |
| Ultrapurification Water (Class I) : | |
| Resistivity at 25°C | 18.2 MΩ·cm |
| Conductivity at 25°C | 0.055 μS/cm |
| TOC Level*** | 1-5 ppb |
| Endotoxin (Pyrogens)**** | <0.001 EU/ml |
| Particulate (≥0.02 μm) | <1 pc/ml |
| Bacteria*** | <0.1 cfu/ml |
| RNase / DNase** | Free |
| Manual Dispense Flow Rate | 1.5-2.0 L/min |
| Automatic Dispense Volume | 100-60000 ml |
| Electrical Requirements : | |
| Electrical Voltage | 110V/220V ±10% |
| Electrical Frequency | 50Hz/60Hz |
| Packing Information : | |
| Net Weight - Main Units | 34 kg |
| Net Weight - Water Tank (30 L) | 7 kg |
| External Dimensions (WxDxH) - Main Units | 315x525x570 mm |
| External Dimensions (WxDxH) - Water Tank (30 L) | 380x380x595 mm |
| Shipping Weight - Main Units | 39 kg |
| Shipping Weight - Water Tank (30 L) | 15 kg |
| Shipping Dimensions (WxDxH) - Main Units | 525x610x770 mm |
| Shipping Dimensions (WxDxH) - Water Tank (30 L) | 520x440x615 mm |
| Notes | *If feed water quality is poor (Conductivity >1000 μS/cm), strengthened pretreatment module and RO-2 type is highly recommended.** When hardness of feed water is high (>450 ppm as CaCO3), 0.5T water softener is recommended.*** Dual wave UV modules need to be adopted. Also dependent on feed water, recommended feed TOC<30ppb.**** Ultrafiltration modules need to be adopted.Feed water no need to be satisfied as above. |
Product Features
Key design, performance, usability, and safety advantages.
The industry's most complete water purification solution for highly regulated applications.
When your application requires the ultimate in water purity, this provides the perfect solution. Consistently delivering water purity of 18.2MΩ.cm and underpinned by the advanced technologies, the water purification system enables you to focus on attaining accurate results while ensuring an uninterrupted work flow.
Applications Explore common laboratory, research, industrial, and process applications.
ICP-MS (Inductively Coupled Plasma Mass Spectrometry)
Molecular biology techniques.
Ultra trace analysis.
Electrochemistry.
Electrophoresis.
GFAAS (Graphite Furnace Atomic Absorption Spectrophotometry).
HPLC
IC (Ion Chromatography)
ICP-AES (Inductively Coupled Plasma Atomic Emission Spectrometry)
Mammalian and bacterial cell culture.
Molecular biology.
Plant tissue culture.
Qualitative analysis.
