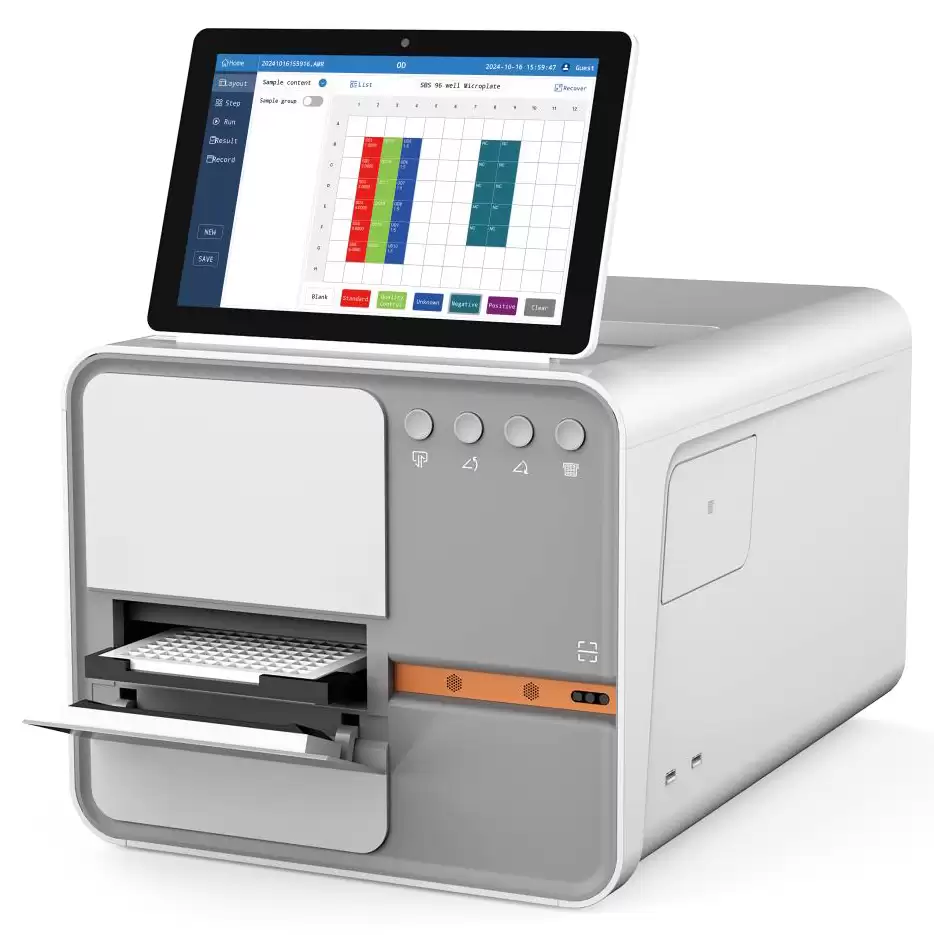

Microplate Reader BFJ1C1
Full-wavelength Microplate Reader- Sea, Air, Door to Door Shipping
- 1 Year Warranty
- US & European Standards
Specifications
| Model | BFJ1C1 |
| Plate | 96-well and 384-well |
| Dimension | 318x450x265 (LxWxH) |
| Weight | 22kg |
| Light Source (Optical) | Xenon lamp, flashes up to 10⁸ |
| Wavelength | 200-1000nm |
| Counting Range | 0-4 OD |
| Optical System | Grating monochromator (1nm step) |
| Detection System | PD |
| Accuracy @450 | ≤2nm |
| Repeatability | ≤0.2nm |
| Linear @450 | R² >0.995(0.3-0.1) |
| Accuracy @450 (Abs) | ± (0.005Abs), (0 - 2.0Abs) ± 0.3%, (2.0 - 3.0Abs) ± 2.0%, (3.0 - 4.0Abs) |
| Repeatability @450 | CV<0.5% |
| Control Range | RT+5°C-85°C |
| Temp. Accuracy | ±0.5°C@37°C |
| Temp. Uniformity | ±0.5°C@37°C |
| Light Source (Cuvette) | Xenon lamp, flashes up to 10⁸ |
| Absorbance Range | 0~4.000Abs |
| Absorbance Stability | (0.3) ≤0.5%, (3.4) ≤1.5% |
| Absorbance Repeatability | (0.3) ≤0.5%, (3.4) ≤1.5% |
| Absorbance Accuracy | (0.2) 0.005A, (2.3) ≤1%, (3.4) ≤2% |
| Detection Channel | 2 channel |
| Repeatability (Fluoro) | <1.5% |
| Stability | <1.5% |
| Linearity | R² ≥0.996 |
| Light Source (Fluoro) | Single Color LED |
| Excitation Wavelength | 470nm/624nm |
| Emission Wavelength | 525nm/682nm |
| Control Method | 10.1" touch screen, embedded software |
| Vibration Plate | 3 speeds (high, medium, low) |
| Measuring Speed | Fast <8 seconds, accurate <28 seconds |
| Communication | A type USB x 2, B type USB, Ethernet port |
| Storage Capacity | 16G, >20,000 data |
| Thermal printing (optional) | |
| Voice Function | Yes |
| Scanning Code Function | Yes |
| Screen Angle | Adjustable from 0° to 90° |
| Facial Recognition | Yes |
| Power Supply | DC15V, 17A, 255W |
Description
This model is a full-wavelength Microplate reader with a detection wavelength of 200-1000nm. The instrument can complete the measurement quickly and accurately, with a measurement speed of: fast <8 seconds, accurate <28 seconds. The instrument also comes standard with a linear shock plate function. The type incubation temperature with the incubator can be as high as 85°C. Visualized workflow, simple data analysis and export function can maximize your experience.This product can be widely used in the fields of research, agriculture, animal husbandry, feed companies, food companies and other testing.
Features
1. Wide wavelength range 200-1000nm, 1nm step grating monochromator, precise control of detection wavelength.2. You can measure the end point method, dynamics, suppression rate, etc.
3. Supports 96-well and 384-well plates, which can effectively save time and sample usage.
4. It has cuvette and fluorometer functions to adapt to different experimental scenarios.
5. Combining AI with scientific research, it has many special functions such as voice control, voice interaction, code scanning, face recognition, etc., bringing a new experience to users.
6. The high-resolution 10.1-inch capacitive touch screen is easy and smooth to operate, and the screen angle can be freely adjusted by voice control or buttons.
7. Simple and easy to operate
8. Intelligent voice (computing)
